3-18

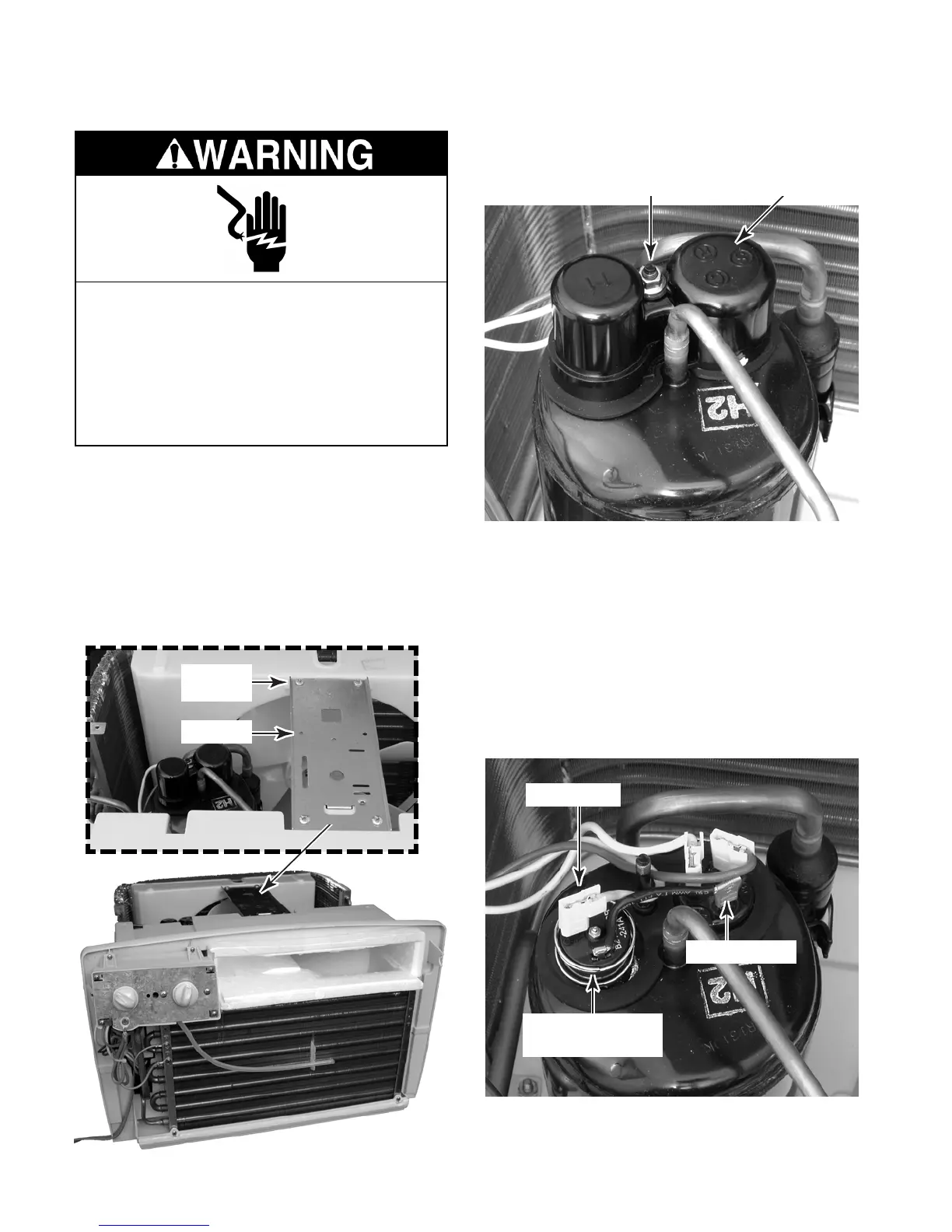

REMOVING THE OVERLOAD PROTECTOR & COMPRESSOR
1. Unplug air conditioner or disconnect power.
2. Remove the air conditioner from the win-
dow.
3. Remove the side curtains and the front
grille (see page 3-2 for the procedures).
4. Remove the four screws from the brace
and remove the brace.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Screw
(1 of 4)
Brace
6. To remove the overload protector:
a) Disconnect the overload protector wire
from compressor pin C.
b) Disconnect the yellow wire from the
overload protector terminal.
c) Remove the overload protector and its
spring from the compressor.
d) Remove the spring from the overload
protector.
5. Remove the hex cap nut from the terminal
cover and remove the cover.
Hex Cap Nut Terminal Cover
Yellow Wire
Overload Wire
Overload Protector
With Spring
To Next Page
