4-4
COMPRESSOR
Refer to page 3-18 for the procedure for servic-
ing the compressor.
1. Unplug air conditioner or disconnect power.
2. Disconnect the three wires from the com-
pressor terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
following compressor terminals. The meter
should indicate (approximately) as shown:
Terminal R to C = 1.1 Ω
Terminal S to C = 2.8 Ω

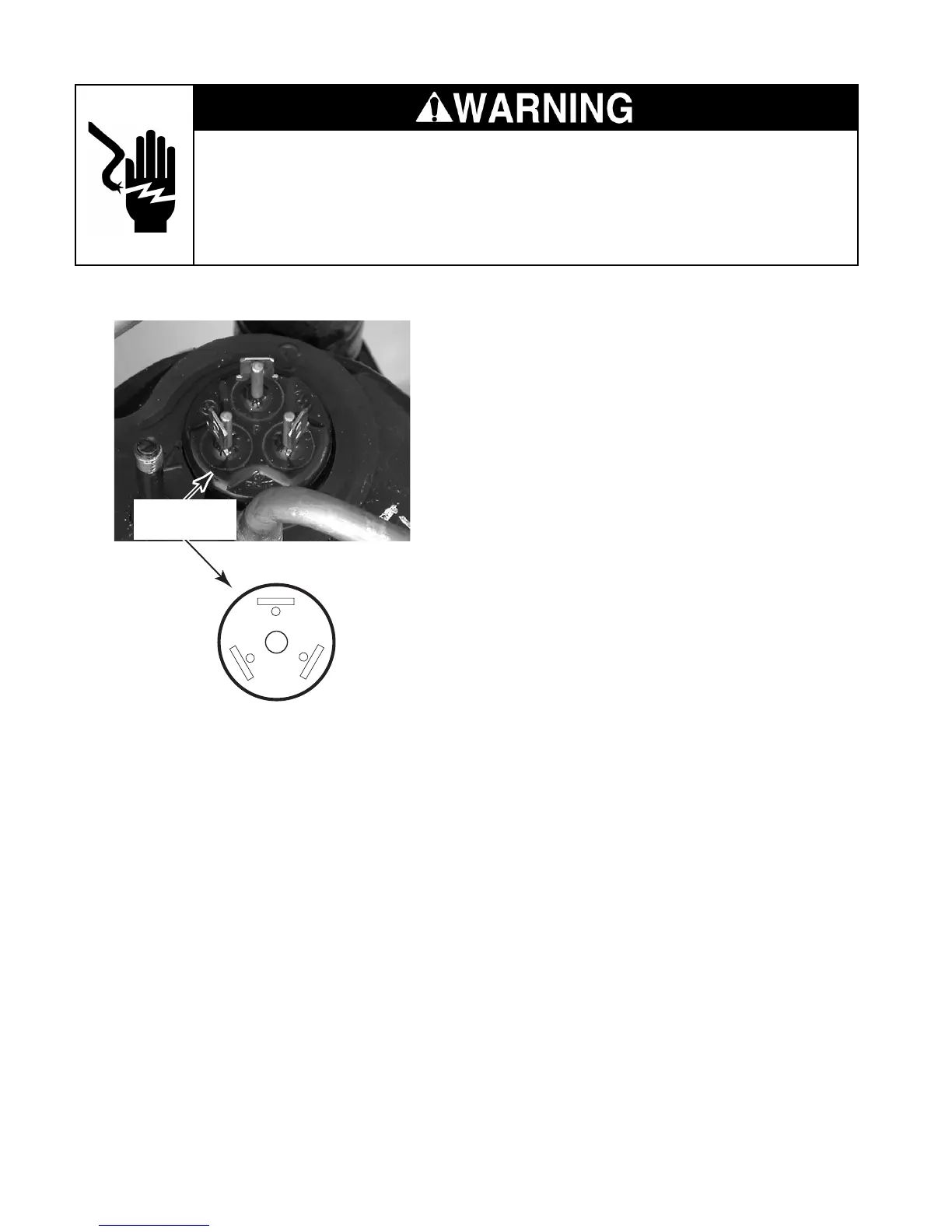

R
(WH)
S
(BN)
C
(BK)
Compressor
Terminals
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
