Whirlpool ACM062MM - Strip Circuits: Electronic ACQ Models

6-4

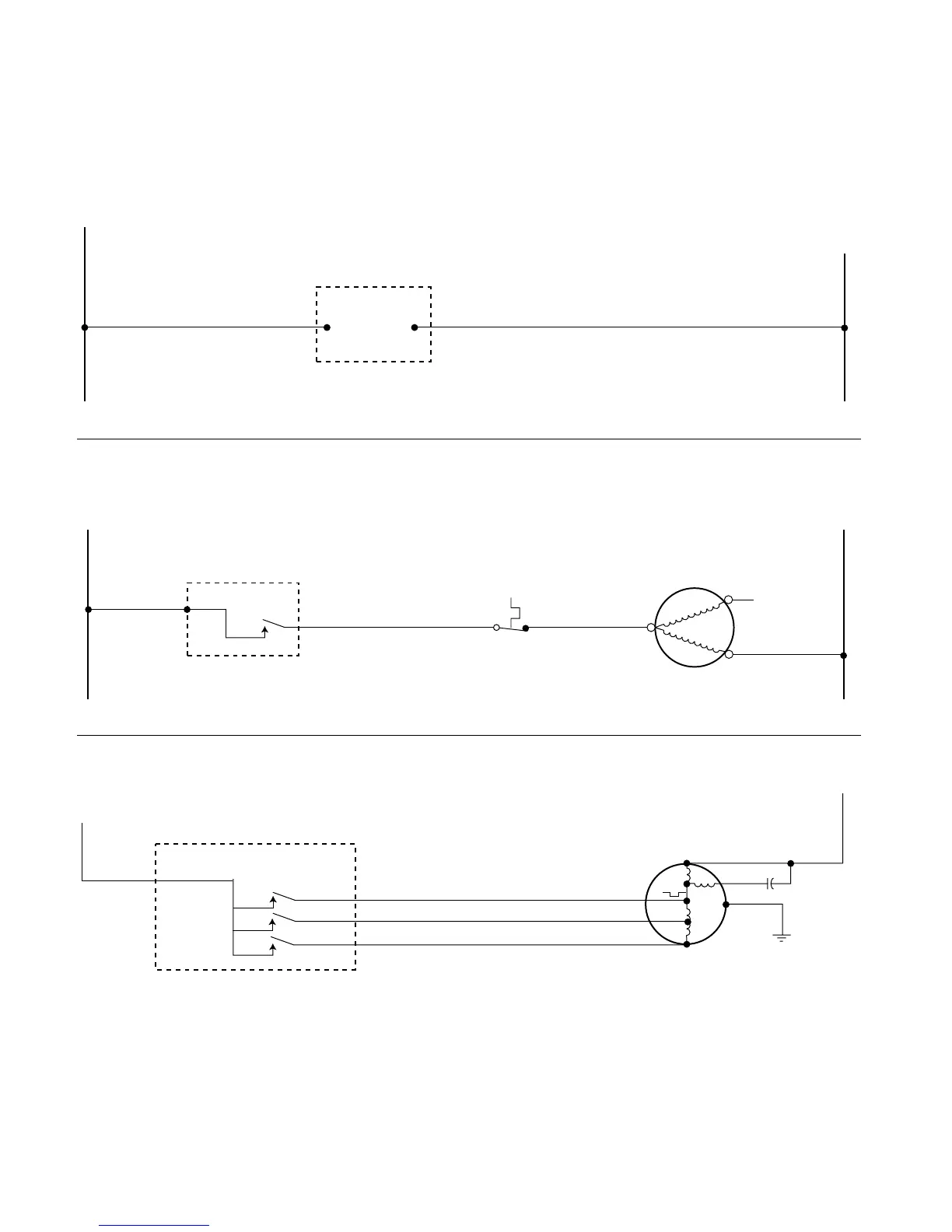

STRIP CIRCUITS
Electronic (ACQ) Models Only
L1 L2
WH
L2
L1
Electronic Control Board
Compressor
Comp.
L1
YL BK
BR
WH
L2
Overload
R
S
C
L1
Electronic Control Board
Electronic Control
Low
L1
L1
L2
High
Turbo
3-Speed Motor
G
Capacitor
S
T
BK
BU
RD
BR
GN
H
L
POWER ON
COMPRESSOR ON
FAN MOTOR ON
