Whirlpool ACM062MM - Component Access & Removal; Component Locations Overview

3-1

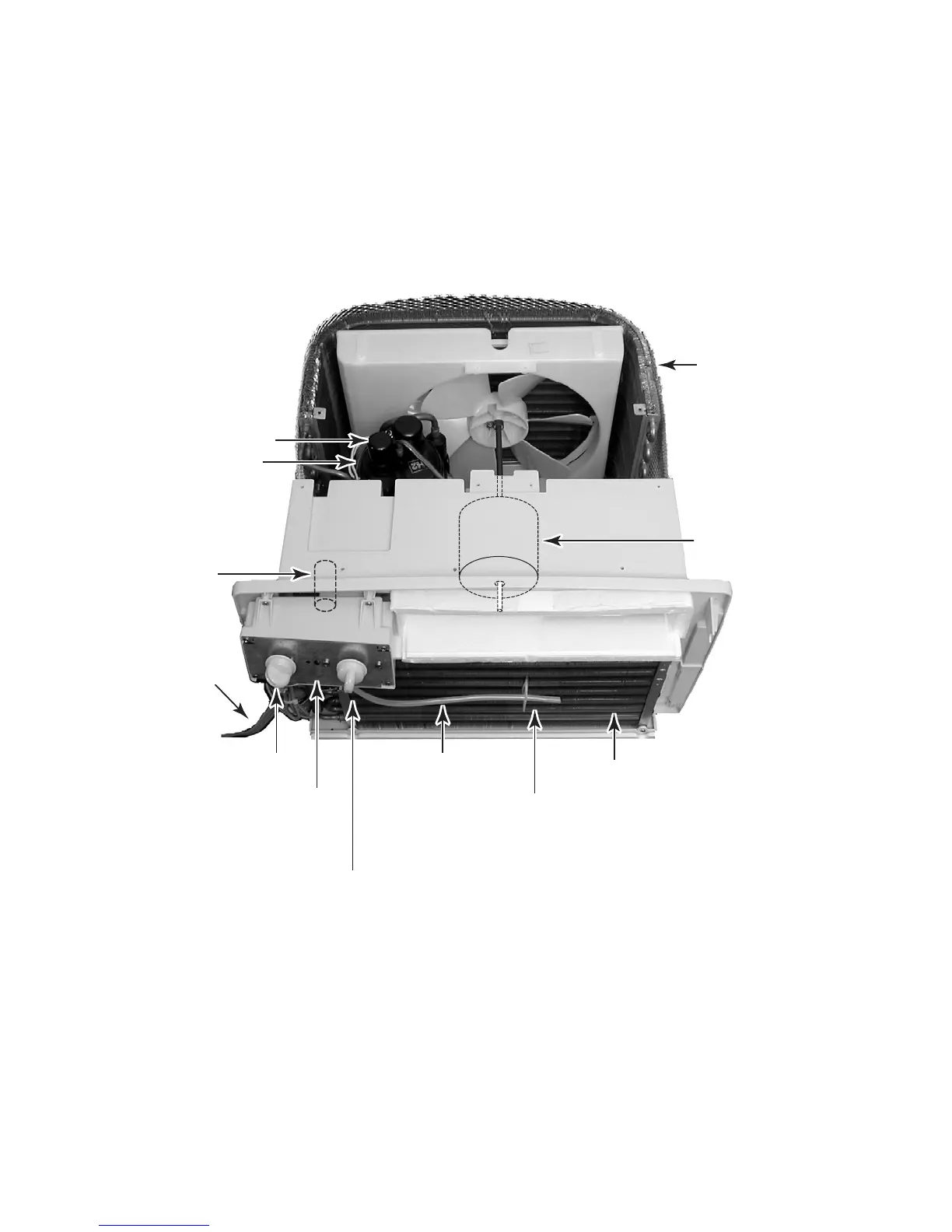

COMPONENT LOCATIONS
This section instructs you on how to service each component inside the air conditioner. The
components and their locations are shown below.
COMPONENT ACCESS
Evaporator
Temperature Control
Fan Speed Control
Power Cord
Compressor
Capacitor
Overload Protector
Condenser
Temperature
Sensor Tube
Models ACQ058MM
& ACQ062MM Use An
Electronic Control Assembly
Instead Of Manual Controls
Models ACQ058MM &
ACQ062MM Use A
Thermistor In Place Of A
Temperature Sensor Tube
Fan Motor
