3-15
Foam Strip
Front Evaporator Screws
Side Screw
(1 of 2)

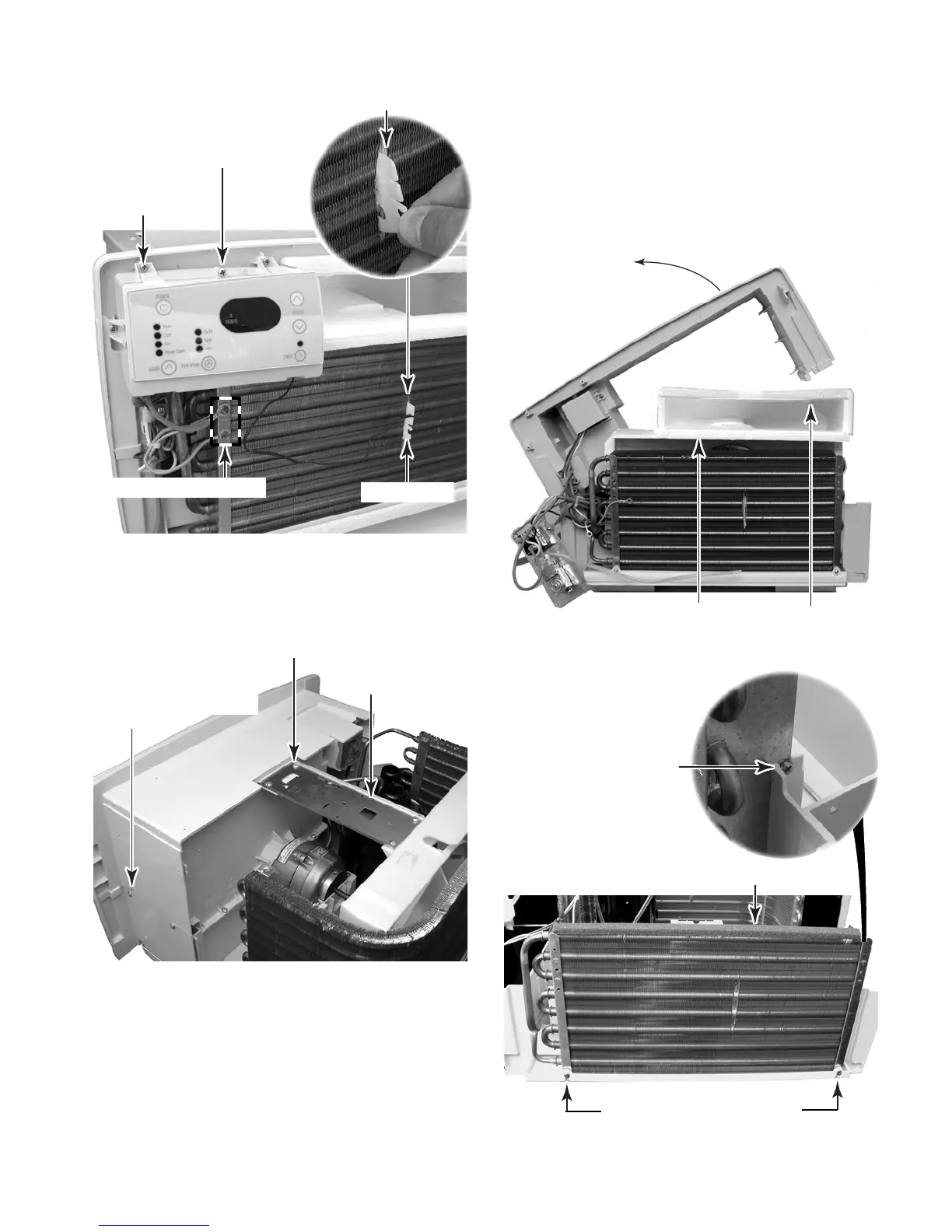

7. Remove the four screws from the brace
and remove the brace.
8. Remove the eight screws from the top air
guide.
Brace Screw (1 of 4)
Top Air Guide Screw
(1 of 8)
Top Air
Guide
Brace
9. Lift the top air guide off the upper styrofoam
air shields, and rotate the guide to the left,
(facing front). Lay the guide on the work
surface out of the way.
10. Carefully lift the two upper styrofoam air
shields off the unit.
Rotate Air Guide
Upper Styrofoam Air Shields
11. Remove the two front and two side screws
from the evaporator.
Continued on the next page.
Ground Wire Screws
Electronic Control
Box Assembly Screw
Control Housing
Screw (1 of 3)
Thermistor
Thermistor Holder
To Next Page
