7-2
Perform the following steps to install the Con-
densate Drain Adapter:
1. Position the gasket and adapter so that
the flat side faces up.
2. Mount the adapter and gasket to the two
predrilled mounting holes in the rear of the
base plate with the two hex-head screws
provided.
3. Slide the end of a length of tubing over the
end of the adapter, and route it to the
drainage location.

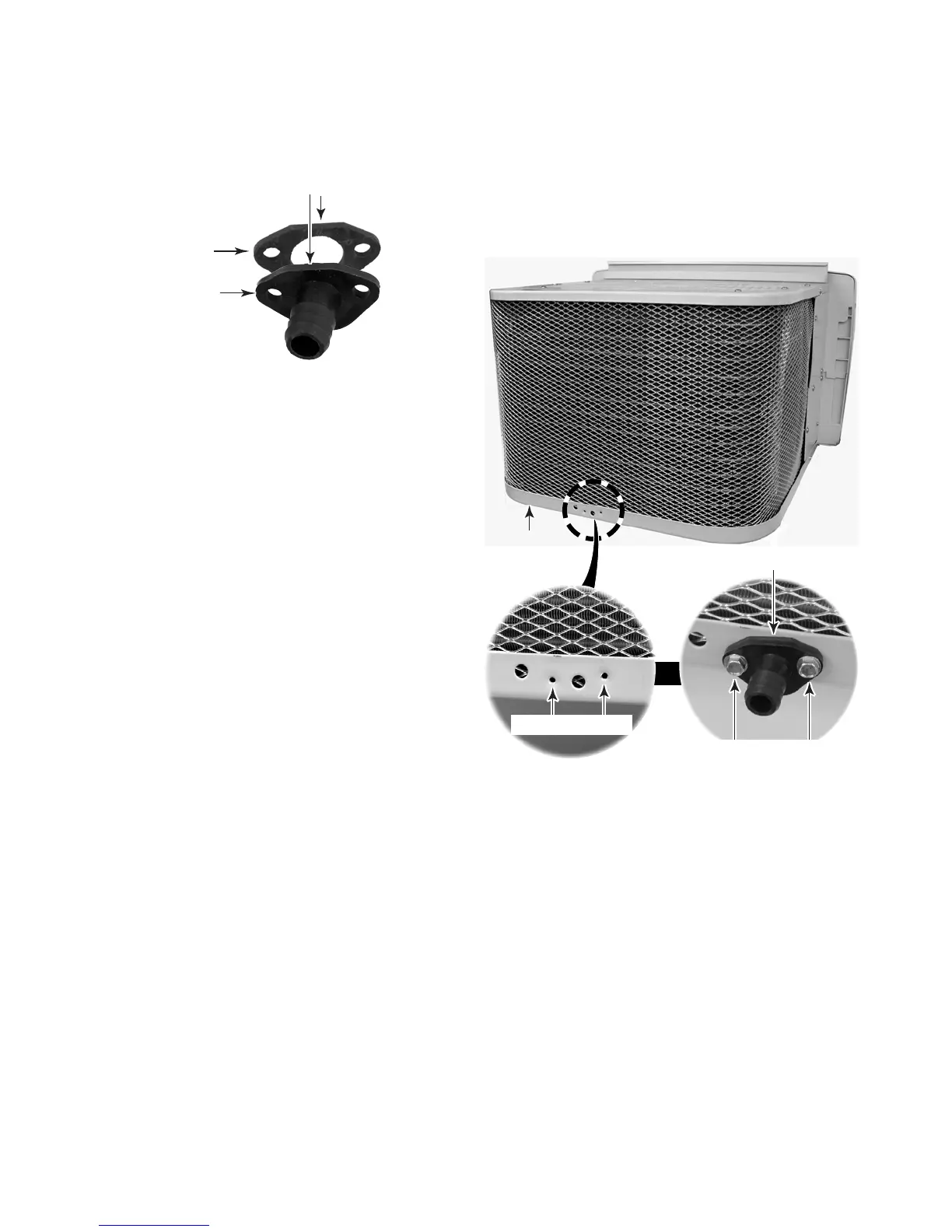

Gasket
Drain Adapter
Mounting Holes
Base Plate
Hex-Head Screws
Drain Adapter & Gasket
Flat Side
