PRODUCT DESCRIPTION

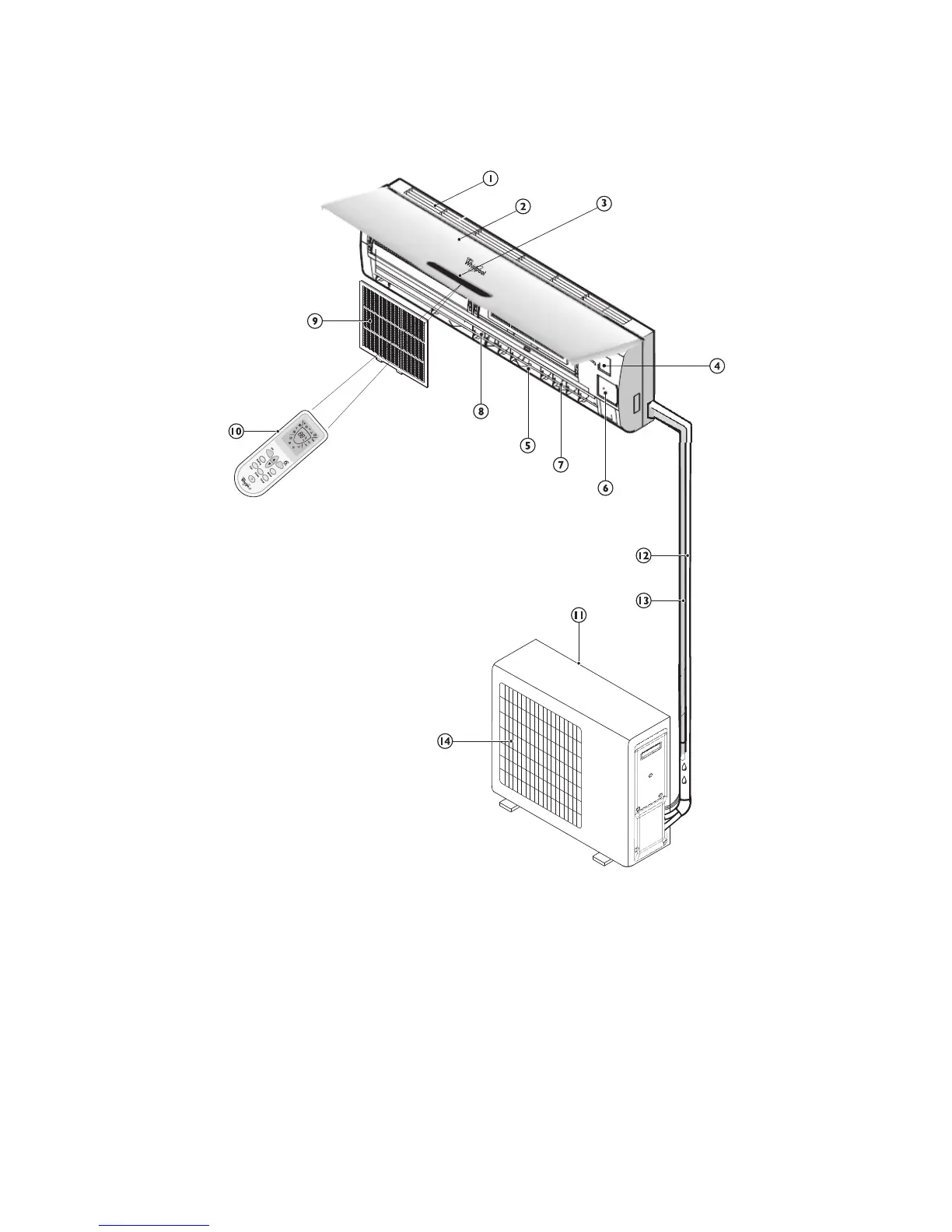

Indoor unit
1. Air Intake
2. Front Panel
3. Display panel
4. Electrical box
5. Air Outlet
6. Emergency button
7. Vertical Adjustment Louver
8. Horizontal Adjustment Louver
9. Air Filter
10. Remote Control
Outdoor unit
11. Air Intake
12. Pipes and Power Connection Cord
13. Drain Hose
Note: Condensate water drains at COOLING
or DRY operation.
14. Air Outlet
Images in the user instructions are based on external views of standard models, shape and design vary
according to the model.
