ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.
REMOVING A SIDE PANEL
CAUTION: When you work on the gas range,
be careful when handling the sheet metal parts.
Sharp edges may be present, and you can cut
yourself if you are not careful.
WARNING
FIRE HAZARD
Shut off gas supply line valve before servic-
ing the range.
Check all gas line connections and replace
all panels before operating the range.
Failure to do so could result in explosion, fire,
or other injury.
1. Turn off the gas to the range and discon-
nect the power cord from the wall outlet.
2. Remove the grates and burner caps from
the cooktop.
3. Remove the cooktop from the range (see
page 4-6).
4. Remove all of the knobs from the control
panel by pulling them off the control shafts.
5. Remove the oven door from the range
(see page 4-20 for the procedure).
6. Remove the three screws and flat wash-
ers from the bottom of the control panel,
then remove the panel from the unit.
7. Remove the two front bracket screws from
the front of the side panel. Do not remove
the two top center side panel screws.
8. Remove the screw from the end cap.
9. Pull the range away from the wall so you
can access the back of the unit.
10. Open the warming drawer several inches.

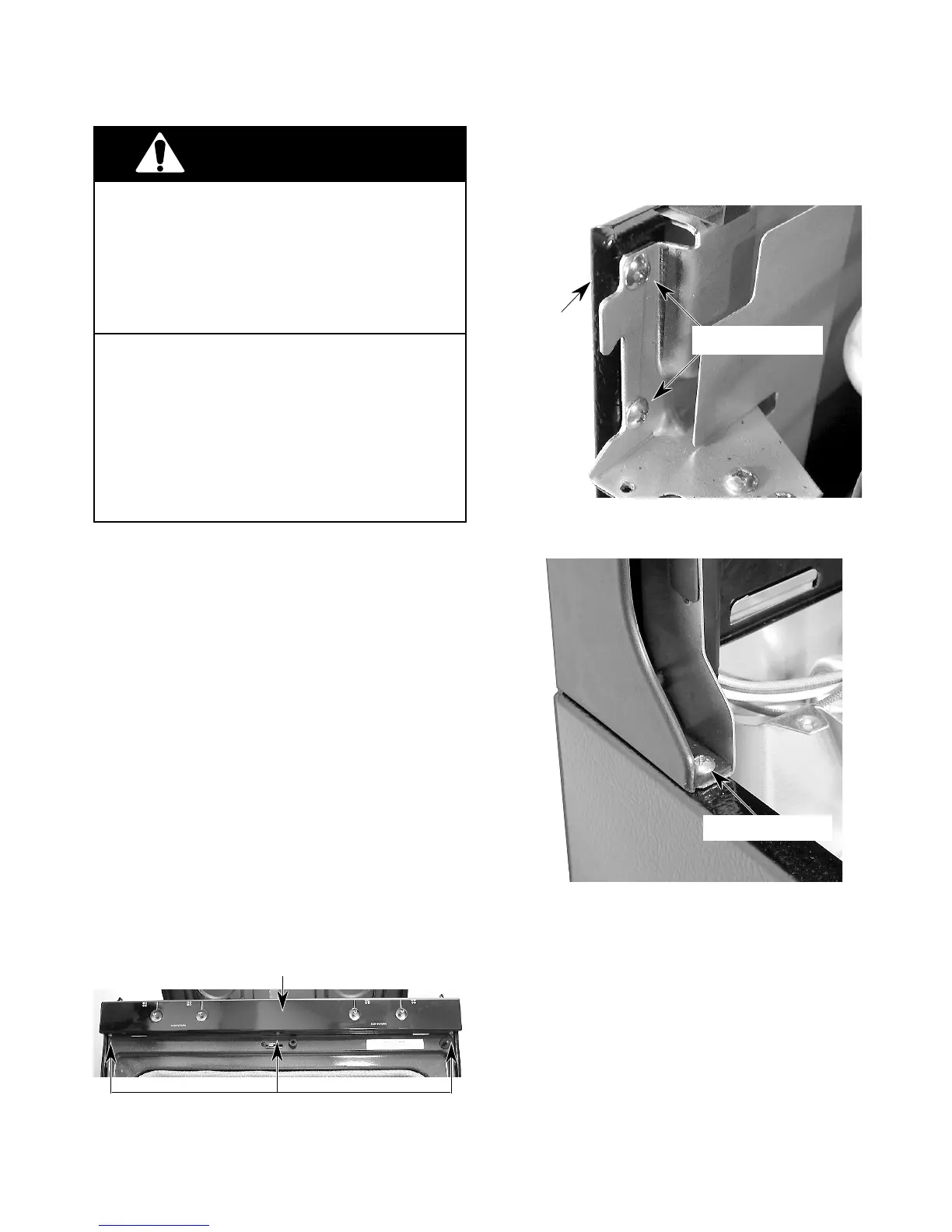

End Cap Screw
3 Screws & Flat Washers
Control Panel
Bracket Screws
Side Panel
Continued on the next page.
