COMPONENT ACCESS
Multi-Door Freestanding Refrigerator
n
4-13
Accessing Refrigerator Compartment Components (Continued)
1. Complete
instrucons steps 1-10 and
instrucons steps 1-6.
2. Remove any remaining items and shelves in Refrigerator
Compartment.

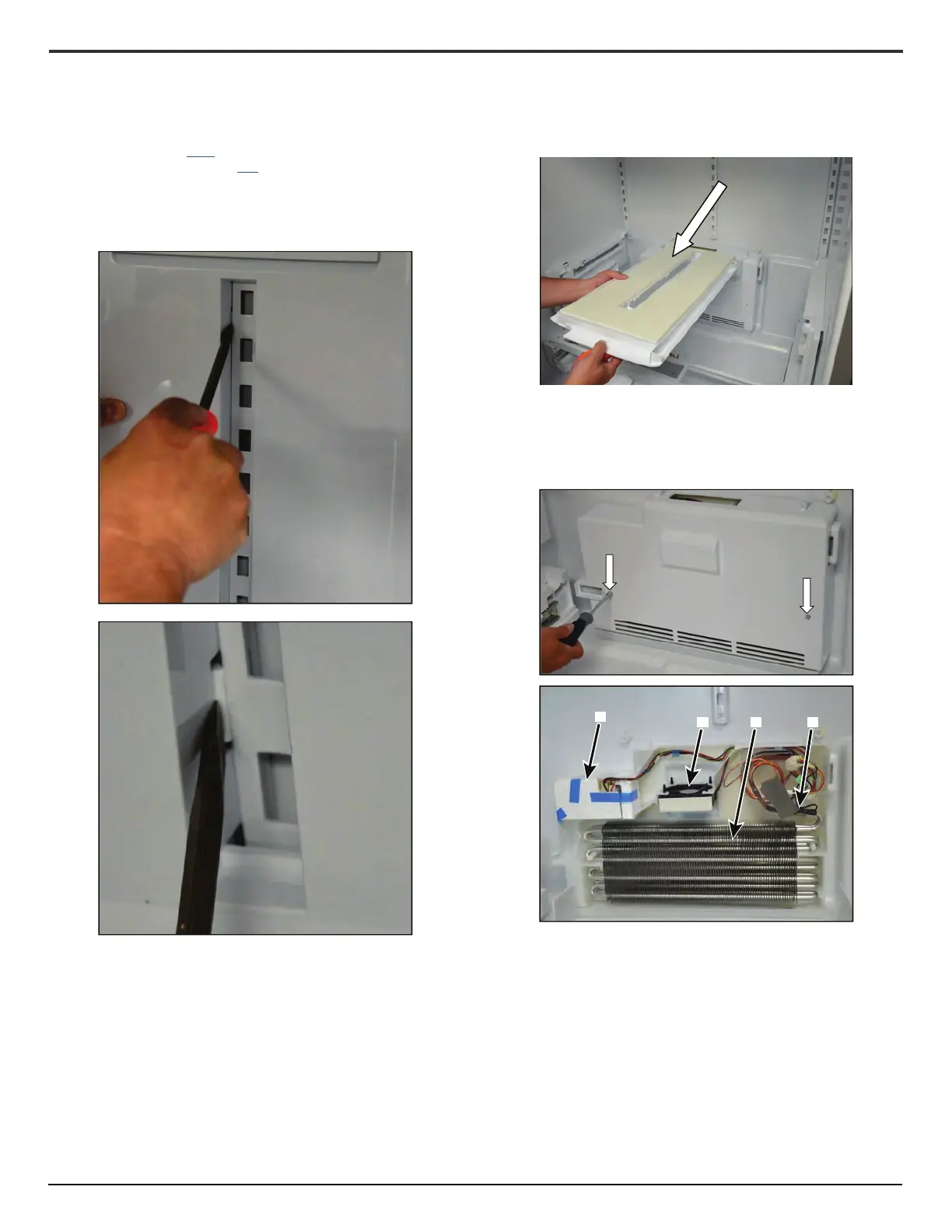

3. Release 6 locking tabs, there are two tabs at 3 locaons along
the center shelf rail.
4. Drop down the air tower and remove.
5. Remove two, 1/4" (6.4 mm) hex head screws to remove RC
evaporator cover to access RC evaporator and evaporator
components.
A
B
D
C
A. Deli air damper
B. RC evaporator fan motor
C. Evaporator
D. RC evaporator thermistor
To Next Page
