Whirlpool LSA 1300 - Pumping Tower and Lint Filter Assembly

SERVICE MANUAL
Page | 13
Sl. No
Part No
Description
Qty
1
W10564606
TOP
-
PUMPING TOWER
-
LF
-
GLOBAL WHITE,G62
1
2 W10564590 PUMPING TOWER-BASKET,G62 1
3 W10492527 LINT FILTER ASSY-CHARCOAL GREY,G62 1
4 S01132094 SCREW ST 3.5x10-F,SPAN;SS-PHILIPS-BT-CUT 2
5 W10402061 COUNTERSUNK SCREW 2
6 W10564601 SPONGE SEAL-PUMPING TOWER,G62 2
1
2
3
4
5
6

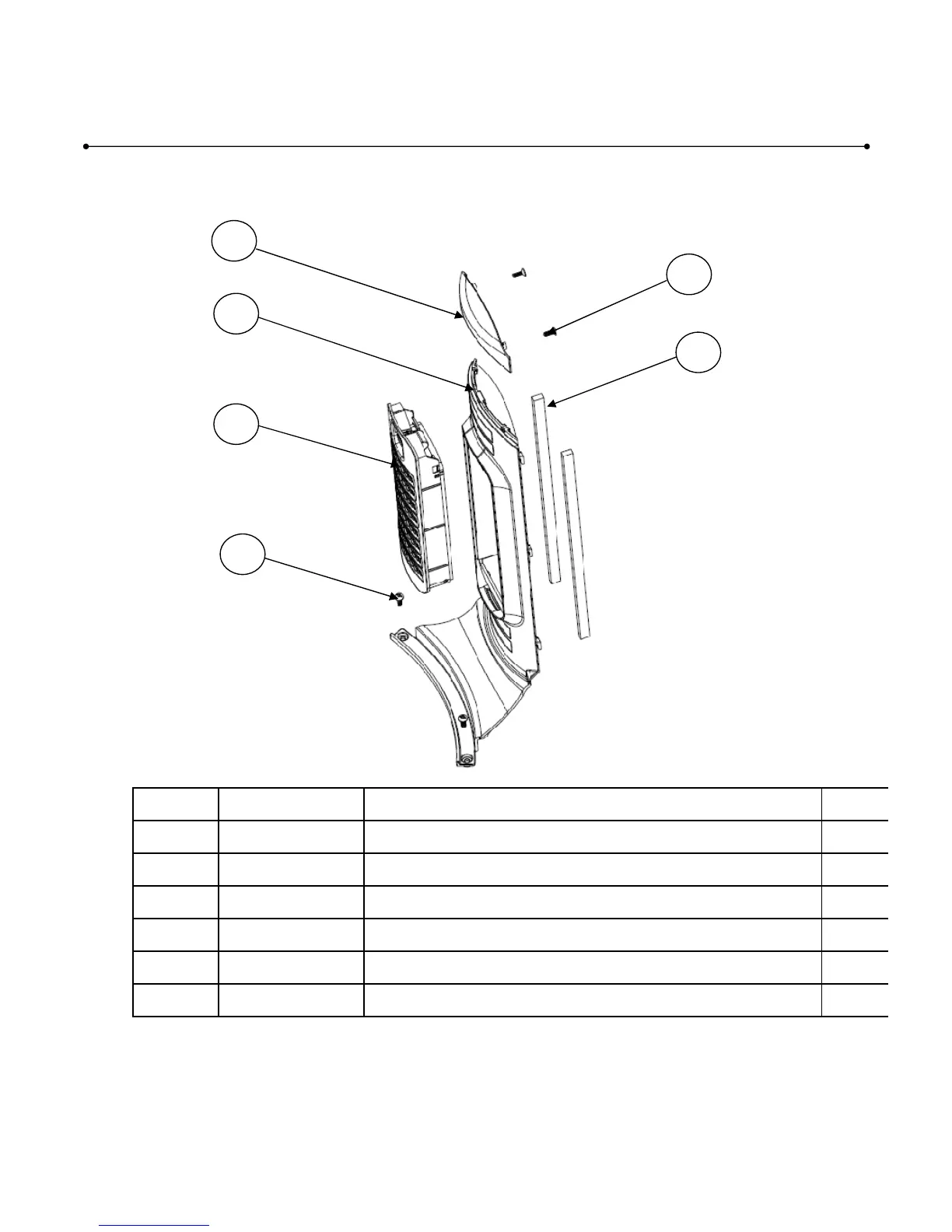

PUMPING TOWER AND LINT FILTER ASSEMBLY
