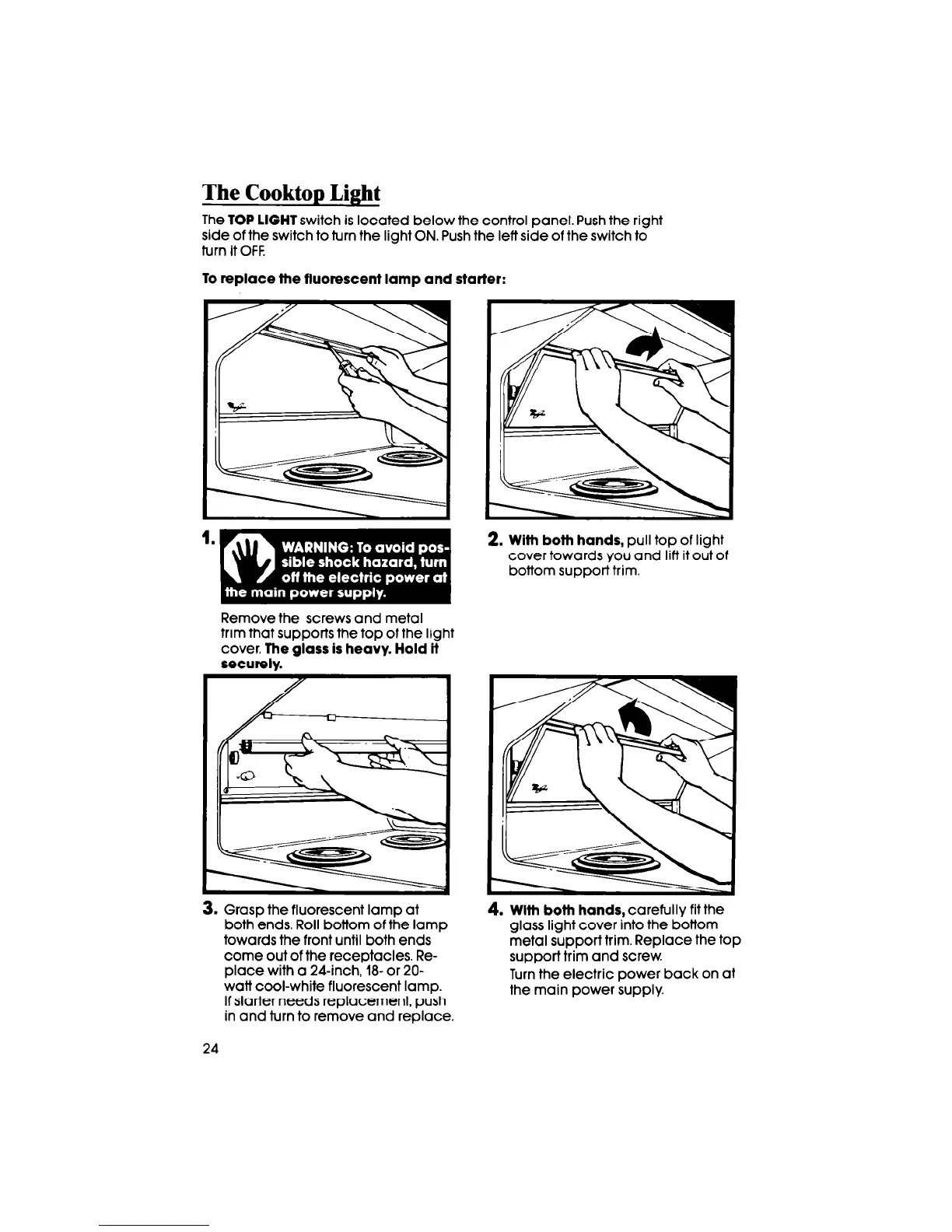

The Cooktop Light
The
TOP LIGHT
switch is located below the control panel. Push the right
side of the switch to turn the light ON. Push the left side of the switch to
turn it OFF.
To replace the fluorescent lamp and starter:
Remove the screws and metal
trim that supports the top of the light
cover.
The glass is heavy. Hold it
securelv.
3. Grasp the fluorescent lamp at
both ends. Roll bottom of the lamp
towards the front until both ends
come out of the receptacles. Re-
place with a 24-inch, 18- or 20-
watt cool-white fluorescent lamp.
If starter needs replacement, push
in and turn to remove and replace.
2. With both hands,
pull top of light
cover towards you and lift it out of
bottom support trim.
4. With both hands,
carefully fit the
glass light cover into the bottom
metal support trim. Replace the top
support trim and screw.
Turn the electric power back on at
the main power supply.
24
