STANDARD
EQUIPMENT
:
•
10
HP Baldor TEFC Motor
208
/
230
/
460
/ 3/
60
• 3 Premium V-Belts
• Filter, Regulator, Coalescing Filter w. Gauge
• Magnetic Starter
In
Nema
12
Box
with Low
Vo
ltage Controls
• Tempered Chrome-
Maly
Spindle
• Heavy Steel Spindle Housing
• 4" Cast Aluminum Dust Chute
•
Air
Supply Lock-Out
OPTIONAL
EQUIPMENT:
• 20"
A.TB
. or T.C.G. Systi-Matic Blades
• Spray
Mist
for Metal and Plastic Use
• Electric Delete Credit
• 15 HP Baldor TEFC Motor
• 7 1/ 2 HP Single Phase Motor
ELECTRICAL (Amps)
Current
230
Vo
lt
s
Motor Running
26
Amps
Service Current
50
Amps
460
Volts
13
Amps
25
Amps
--
--
MATERIAL
FLOW
2 1 /4" cast i
ron
table top
ACCESS
DOOR
WITH
AUTOMATIC
ELECTRIC
INTERLOCK
4
INCH
EXHAUST
FITTING
IN
BACK
--
SPECIFICATIONS:
• Blade Size:
20
" x
1"
Bore
• Blade Speed: Approx. 3,
165
RPM
• Cycle Speed: Up to
40
I Minute
•
Air
Cylinder: 2" x 12"
• C.F.M. Approx.
1.96
- SCFM
12.65
• Table Height:
36
3/ 4 Inches
• Floor Space:
26
" x
33
1/ 2 Inches
• Made With Pride
in
the U.S.
A.
CAPACITY:
• 1 x
18
, 2 x
16
, 3 x
14
, 4 x
12
• 5 x
10
and 6 x 8
HEIGHT
ADJUSTMENT
KNOB
TO
ADJUST
CLEARANCE
BETWE
EN
--
LUMBER
AND
GUARD/CLAMP
(S
HOULD
BE
1/4
INCH)
AIR
CUT-OFF
VALVE
W.
LOCK-OUT
RECESSED
TOP
FOR
OPERATOR'S
HANDS
MAGNETIC
STARTER
IN
NEMA
12
BOX
LO
W
VOLTAGE
CONTROLS
ONE
PIECE
1/4"
STEEL
PLATE:
ALL
4
CORNERS
BENT
AIR H
OSE
FOR
CLEARING
CHIPS

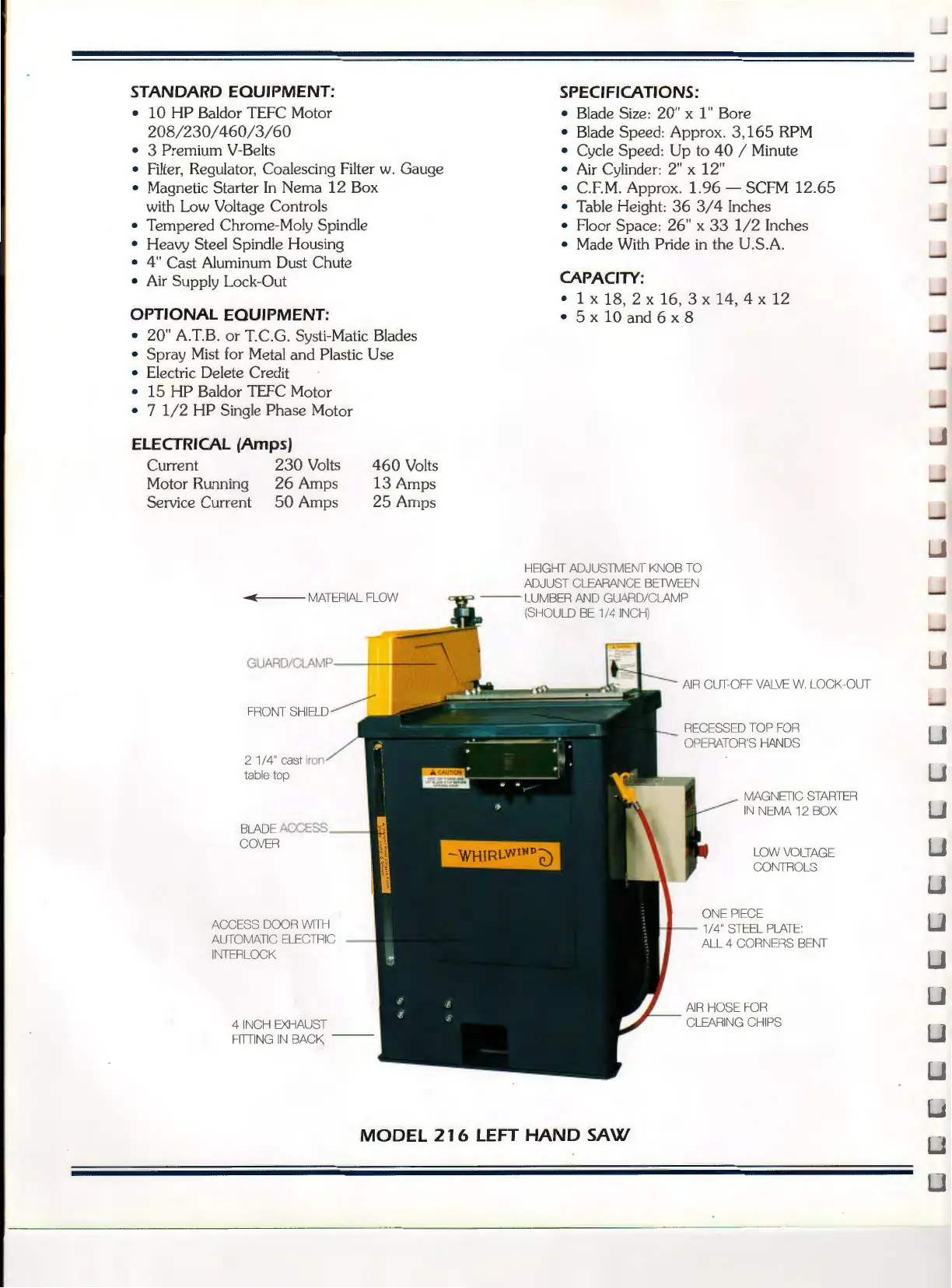

MODEL
216
LEFT
HAND
SAW
