WiiM Ultra User Manual Version 1.2 12/30/2024
28
Scenario 2: Optical In Audio Source Input (TV or PC)
The Optical In interface on the WiiM Ultra is typically used to connect to a TV or PC to
receive audio input.

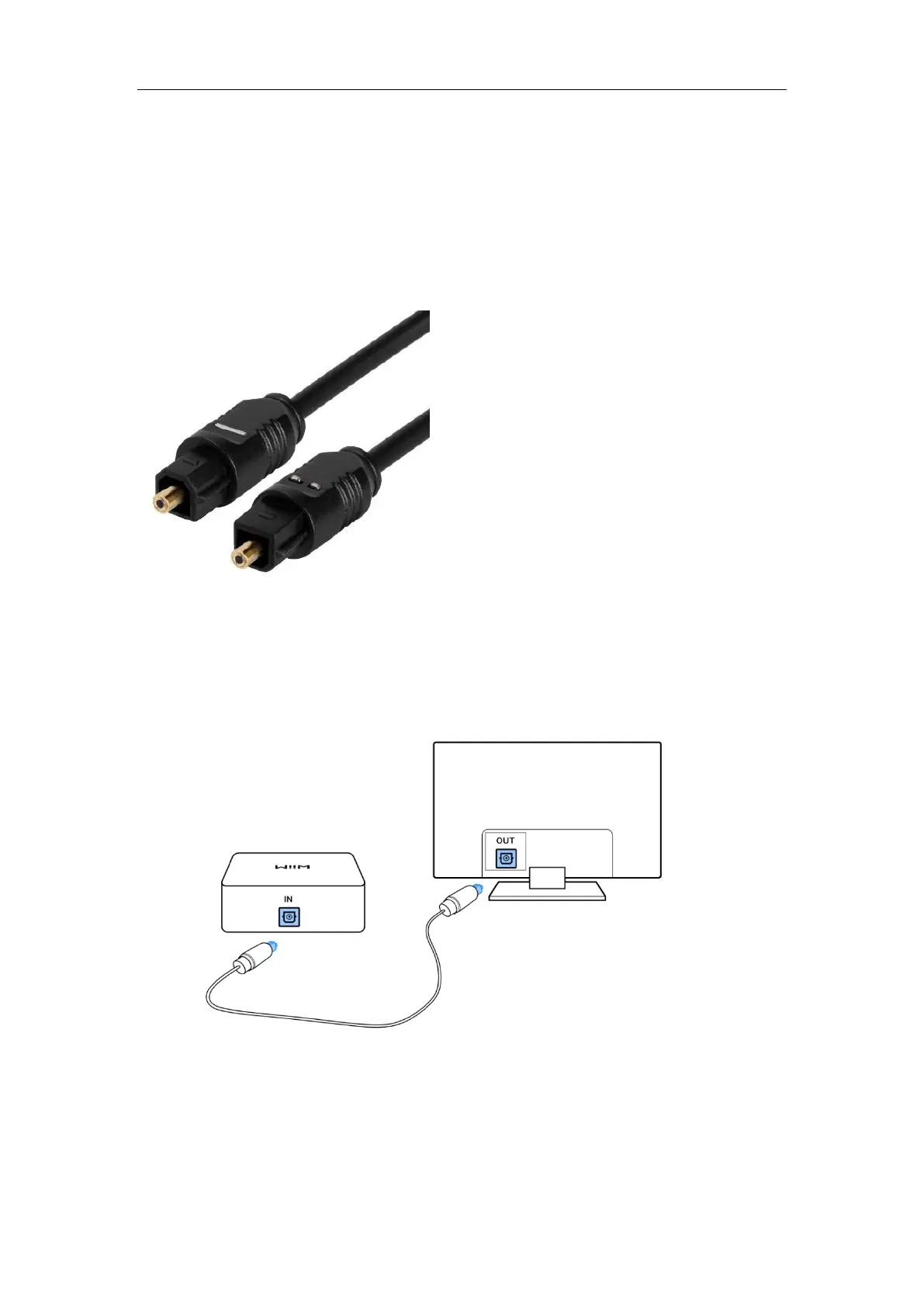

Cable Requirement: use a TOSLINK optical cable as below:
Cable Connection Steps
1. Plug one end of the TOSLINK cable into the Optical In port on the WiiM Ultra.
2. Plug the other end into the Optical Out port on the TV or PC.
Note: The Optical In interface on the WiiM Ultra only supports PCM and Dolby Digital
5.1 audio formats. Please ensure that the audio source device connected to the WiiM
Ultra is set to output audio in PCM or Dolby Digital 5.1 format. Otherwise, you may not
hear sound.
