4. Design and function
4.6 Explanation of display and keypad
4.6.1 Display in measuring mode

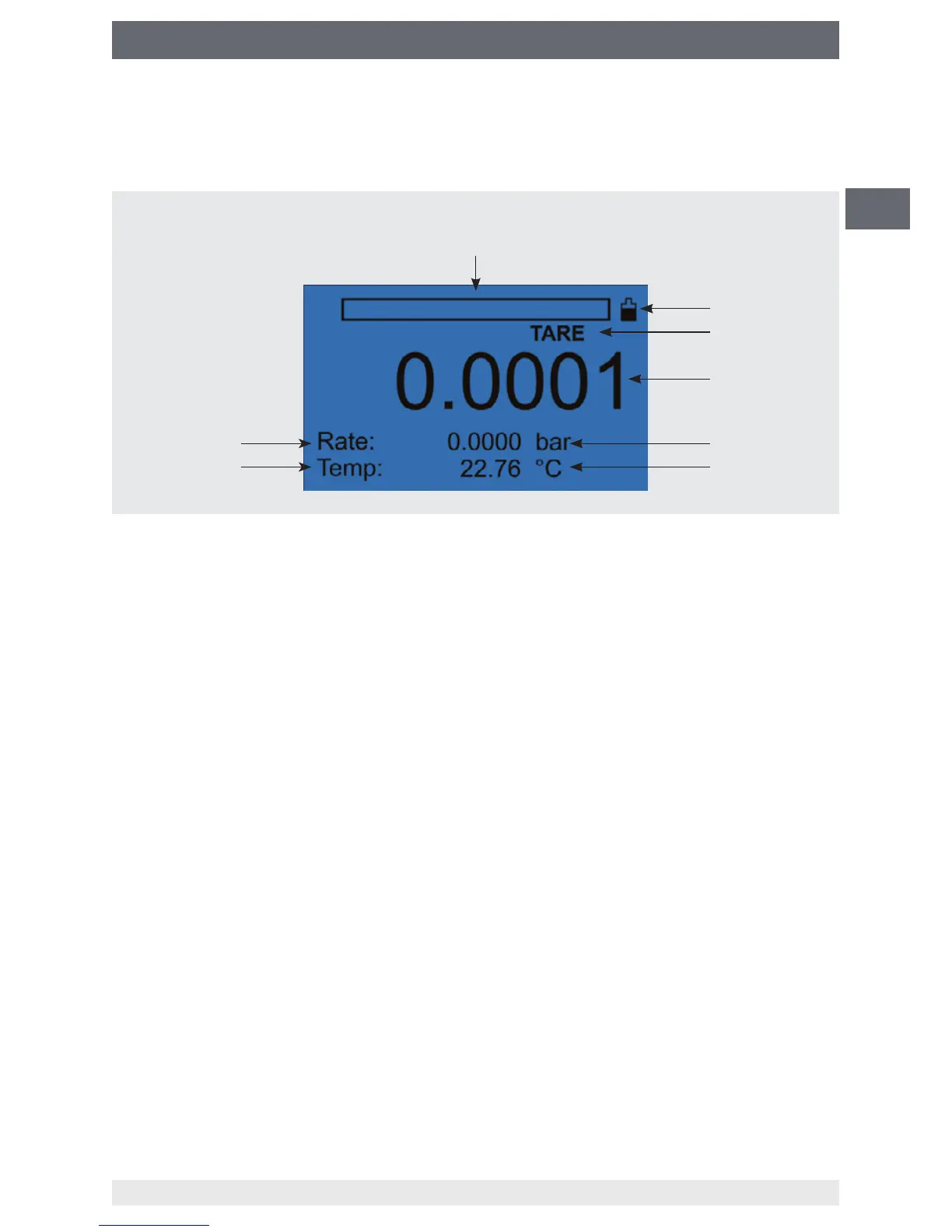

Display
1 Bar graph
The bar graph displays from 0 ... 100 % of the measuring range of the currently
connected sensor. It is 'lled' to x % based on the current pressure value and it gives
information about the current load on the connected pressure sensor.
2 Battery level display
The battery level display indicates from 0 ... 100 % of the charge level. It is 'lled' to
x % based on the current battery charge and it gives information about the current
charge level of the battery.
3 TARE function (if activated)
4 Current measured pressure value
5 Current unit and type of pressure
■
Gauge pressure: without identication;
■
Absolute pressure: identied by an additional "ABS"
6 Temperature unit (2-channel version)
7 Current measured temperature via the external temperature sensor (2-channel
version)
8 Display of the measuring rate
