WIKA operating instructions model T15 23
6.2 Configuration procedure
1. “Loading the instrument data” (this is not necessary to be done separately on starting
the software)
2. “Loading configuration”
3. [optional] Cancel write protection (“key” symbol at the bottom right)
4. Change the required parameters
→ Sensor/Measuring range/Error signalling etc.
5. “Save to the instrument”
6. [optional] Activate write protection
7. [optional] Test: “Loading the instrument data” → checking the configuration
6.3 Fault diagnosis
Here, in the event of an “error detected by the transmitter”, the error message is displayed.
Examples: Sensor break, permitted highest temperature exceeded, etc.
In normal operation, “No fault - No maintenance requirement” is displayed here.
6.4 Measured values
Line recorder - Here the measured value progression is represented in the format of a
chart recorder with a constant sampling rate in a defined time interval (180 seconds) and a
variable temperature axis.
The display purely serves as a functional check and for information.
An export of the data is not possible.
For further information, see chapter 1 “General information”, “Contact data” or
the back page of these operating instructions

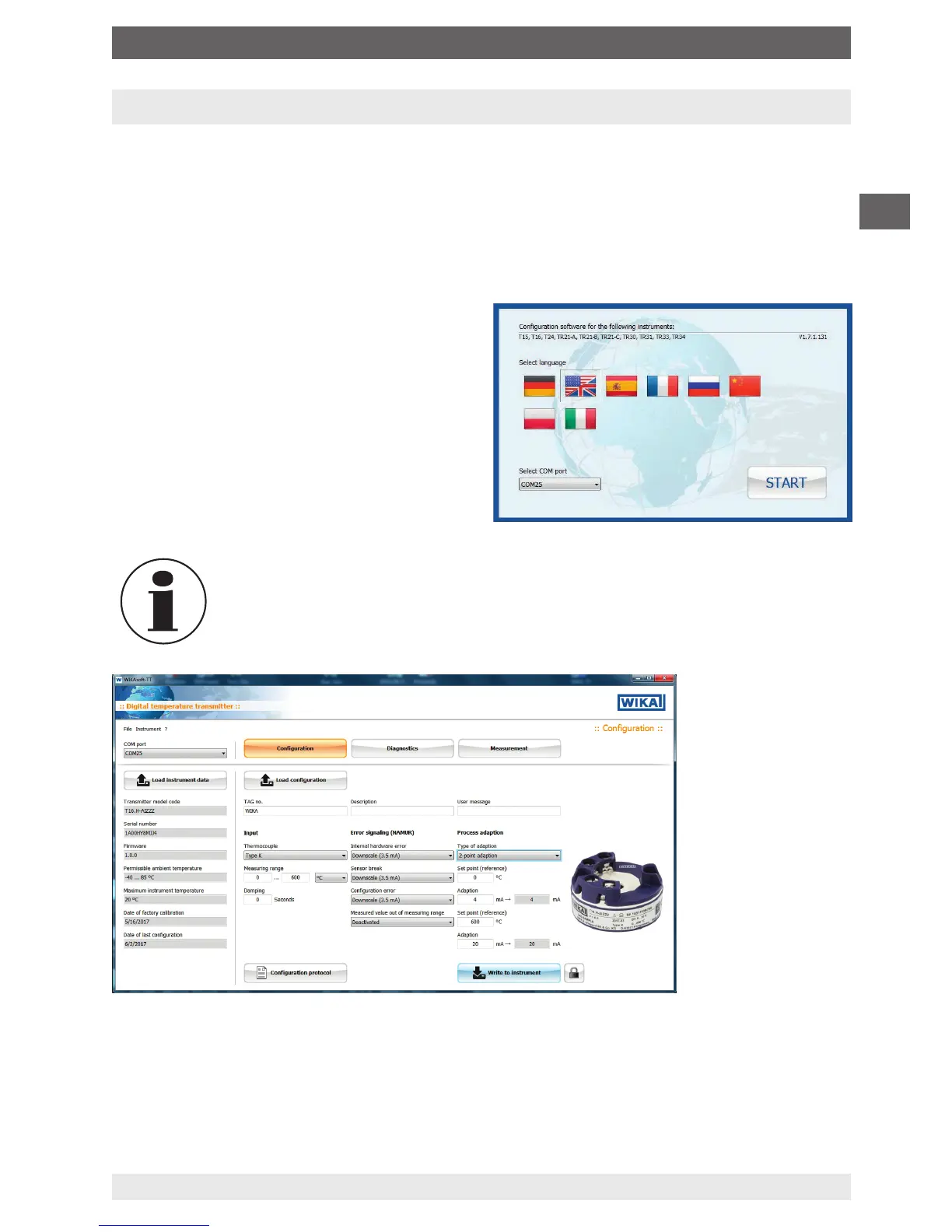

6. Configuration software WIKAsoft-TT
