123WIKA manual de instrucciones, modelos TRxx y TCxx
14150915.08 04/2024 EN/DE/FR/ES
ES
No torcer el cable.
Es posible abrir y cerrar repetidamente; sin embargo solo si es necesario, ya que
podría tener un efecto perjudicial en el grado de protección.
En cables de elevada susceptibilidad a efectos causados por flujo en frío se debe
reapretar el racord.
5.3 Conexión eléctrica
¡ADVERTENCIA!
Riesgo de cortocircuito
Daños en cables y puntos de unión pueden causar un mal
funcionamiento del instrumento.
Evitar daños en los cables. Equipar los extremos de los conductores
con hilo fino de virolas de cables.
5.3.1 Termorresistencias

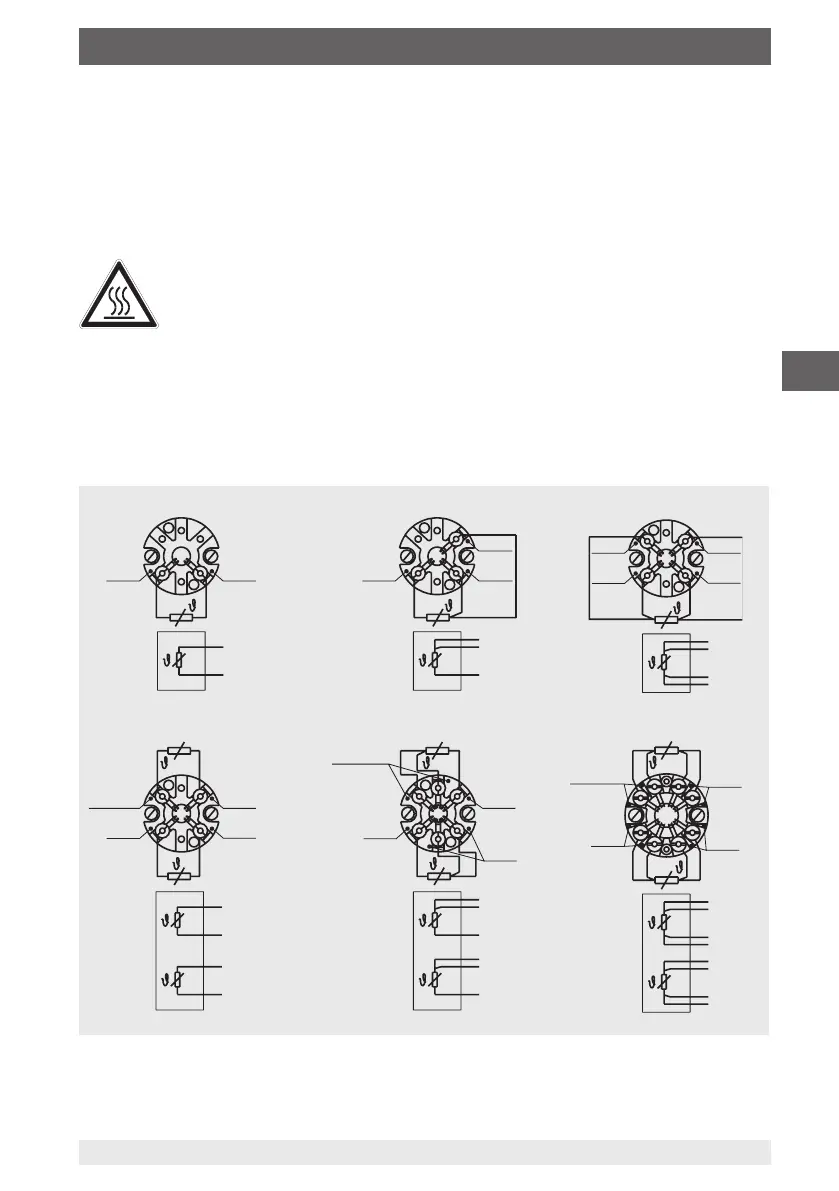

Zócalo estándar (código de color según IEC/EN 60751)
Asignación y código de color para Pt1000 y Pt100
Pt1000 solo disponible como elementos simples
3160629.06
rojo
1 x Pt100, 2 hilos 1 x Pt100, 3 hilos 1 x Pt100, 4 hilos
blanco
blanco
rojo
rojo
rojo
rojo
blanco
blanco
blanco
blanco
blanco
blanco
rojo
rojo
rojo
rojo
rojo
2 x Pt100, 2 hilos 2 x Pt100, 3 hilos 2 x Pt100, 4 hilos
rojo
blanco
blanco
rojo
rojo
blanco
negro
amarillo amarillo
amarillo
negro
negro
blanco
blanco
rojo
rojo
rojo
rojo
negro
negro
negro
negro
amarillo
amarillo
amarillo
rojo
blanco
negro
amarillo
blanco
5. Puesta en servicio y funcionamiento
