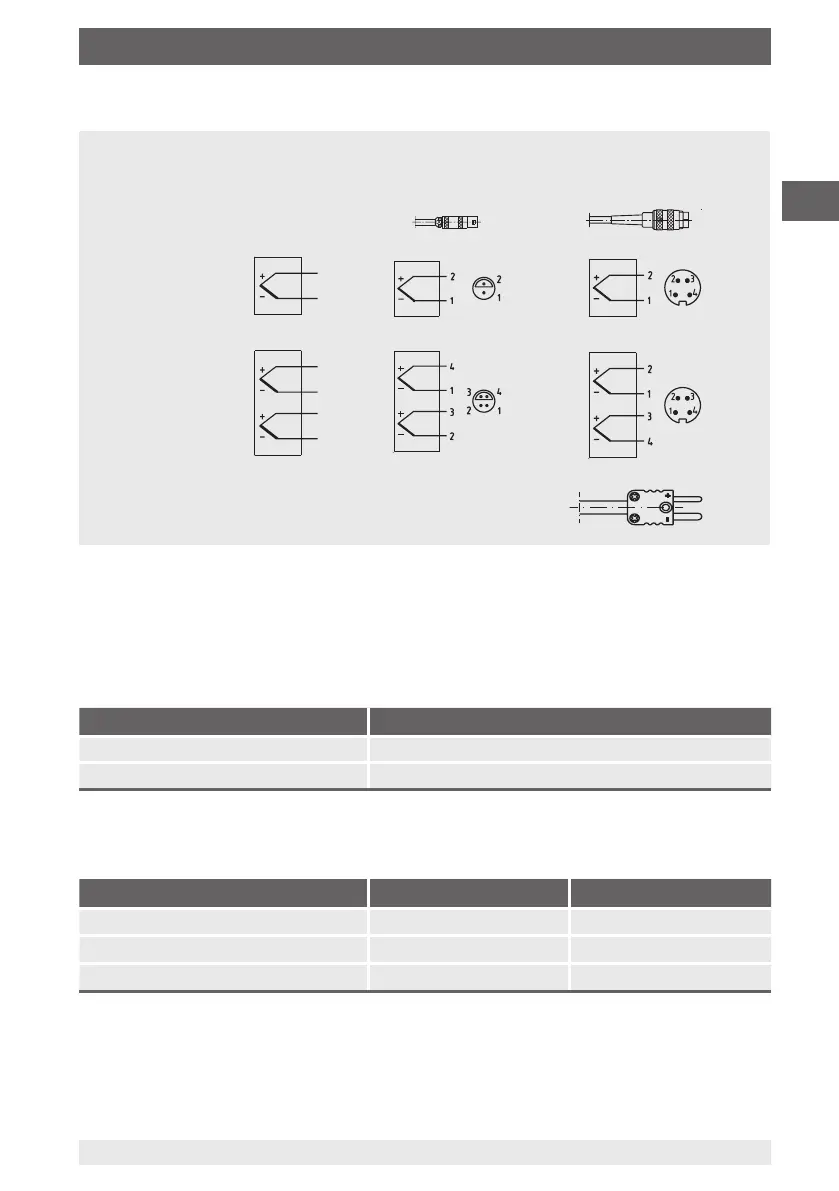

EN
19WIKA operating instructions, models TRxx and TCxx
14150915.08 04/2024 EN/DE/FR/ES
5. Commissioning and operation
With cable or connector
5.4 Tightening torques
Junction between cable and cable gland
Screw the male nut tightly into the adapter piece (use appropriate tools.)
5.4.1 Tightening torques between cable gland (plastic) and connection head
Junction between cable gland and connection head
Threads Tightening torques
M20 x 1.5 12 Nm
½ NPT T.F.F.T 2 - 3
1)
1) Turns from finger tight (T.F.F.T)
5.4.2 Tightening torques for compression fittings
Seal Turns
1)
Max. pressure in bar
Stainless steel ferrule 1 ¼ ... 1 ½ 100
Stainless steel bite-type ferrule 1 ¼ ... 1 ½ 100
PTFE ferrule 1 ¼ ... 1 ½ 8
1) Turns from finger tight (T.F.F.T)
3171966.01
3374896.01
Lemosa connector,
male on the cable
Binder connector,
male on the cable
(screw-in/plug connection)
Single
thermocouple
For the marking of
the cable ends, see
table
Cable
Dual
thermocouple
Positive and negative terminal are marked.
Two thermo-connectors are used with dual
thermocouples.
Thermo-con-
nector
3374900.01a
