WIKA TR - Page 14

11208287.03 06/2010 GB/D/F/E
14
WIKA Operating Instructions RTDs and Thermocouples
GB

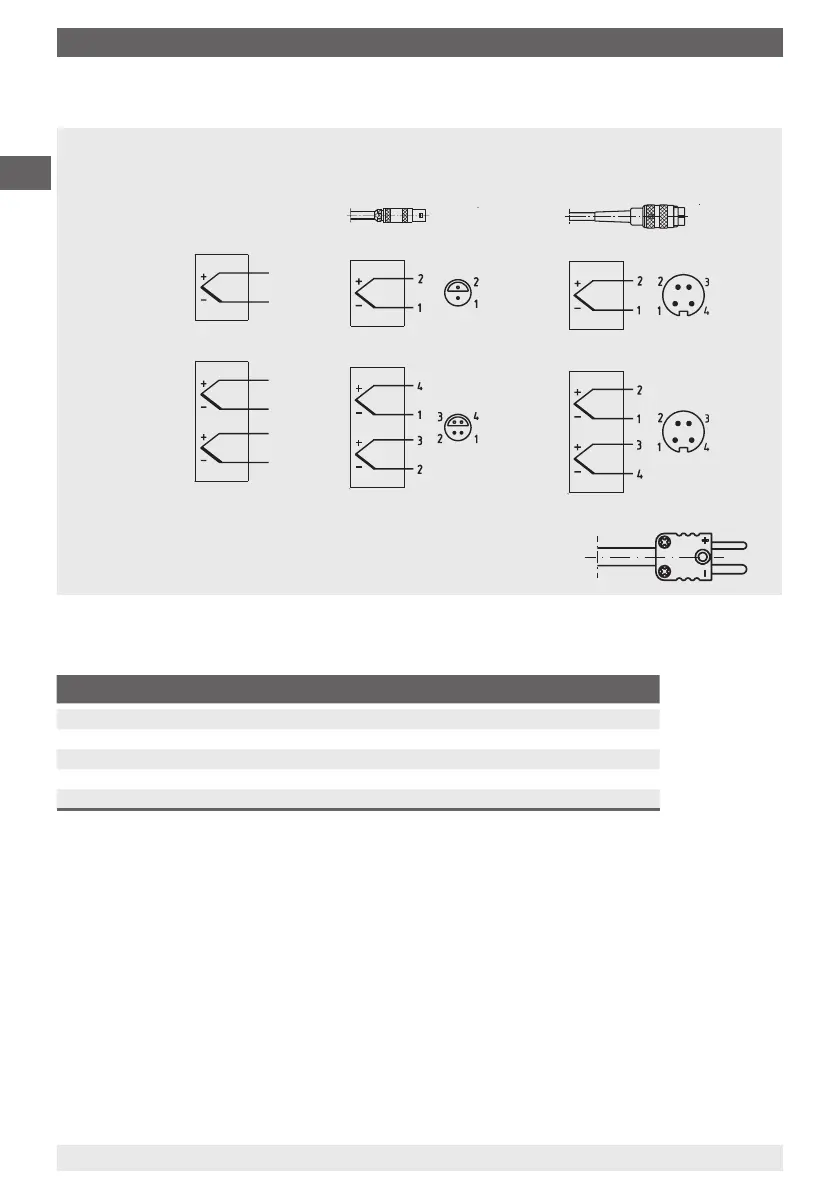

Thermocouples with cable connection or male connector
6. Commissioning, operation
Lemosa connector,
(male) on cable
Binder connector,
(male) on cable
(threaded plug connection)
Single
thermocouple
Colour coding of
the wire ends see
table
Cable
Dual
thermocouple
Colour code of cable
Positive and negative terminal are marked. Two
miniature size thermo connectors are used with
dual thermocouples.
Thermo connector
Type of sensor Standard Positive terminal Negative terminal
K DIN EN 60584 green white
J DIN EN 60584 black white
E DIN EN 60584 violet white
T DIN EN 60584 brown white
N DIN EN 60584 pink white
