SECTION 1 - OPTIMUM OVAL ABOVE GROUND POOL
SKIMMER INSTALLATION (Cont.)
STEP

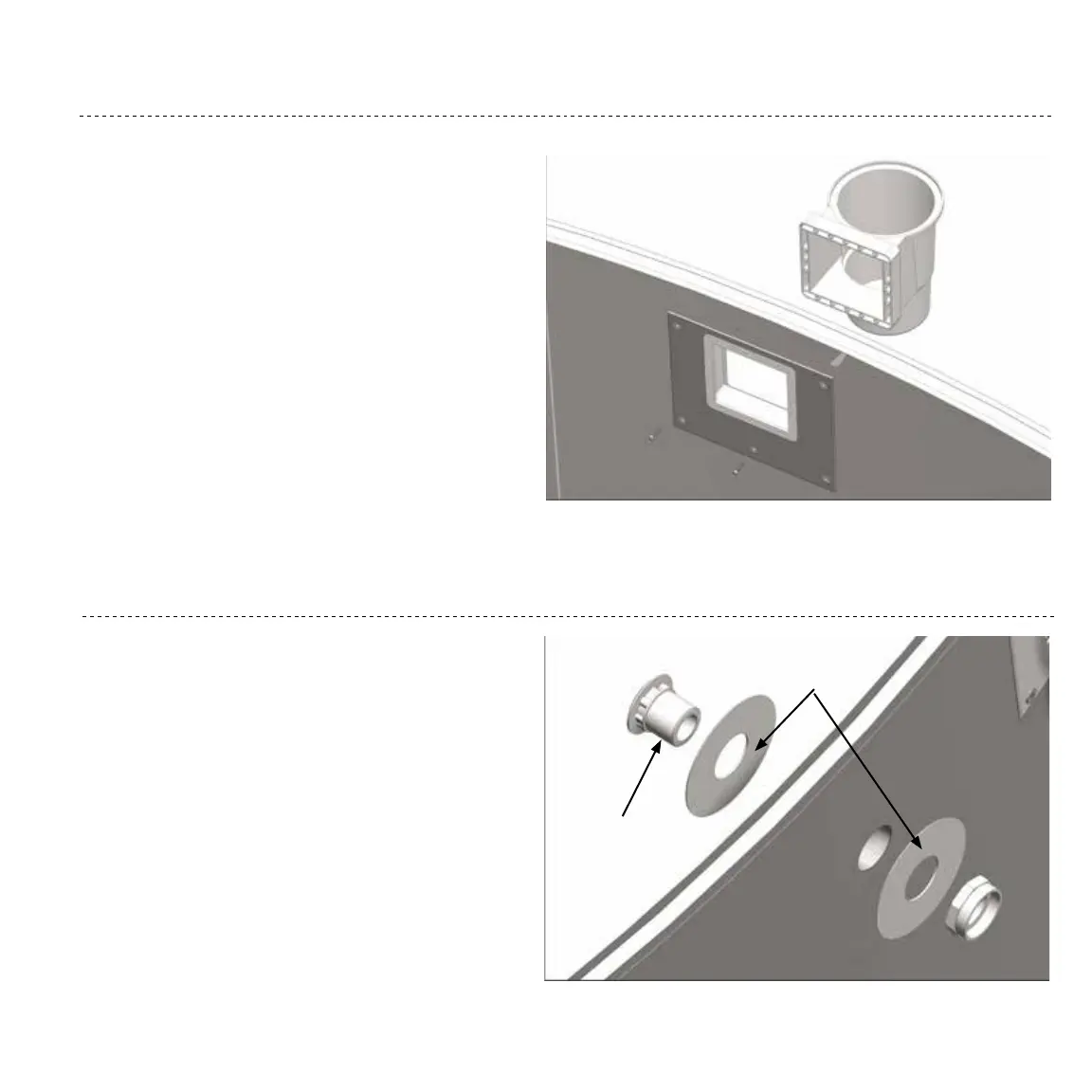

10.3 Install skimmer from outside of pool through to
gasket on gray plate. Secure and tighten with 2 pan
head screws through gaskets and gray plate into
center hole in skimmer.
Tighten 4 corner bolts, do not over tighten.
Note: Skimmer Face Plate (in skimmer assembly)
will be attached after pool liner is installed, locking
the skimmer rmly in place .
11.1 Place white return plate over opening on inside wall
and insert return tting through return plate and
wall.
Insert second white return plate over return tting
on outside of wall, then install back nut to
secure inlet tting. Do not over tighten.
10.3
11.1
11
RETURN FITTING INSTALLATION
STEP
Return tting
White return
plate
