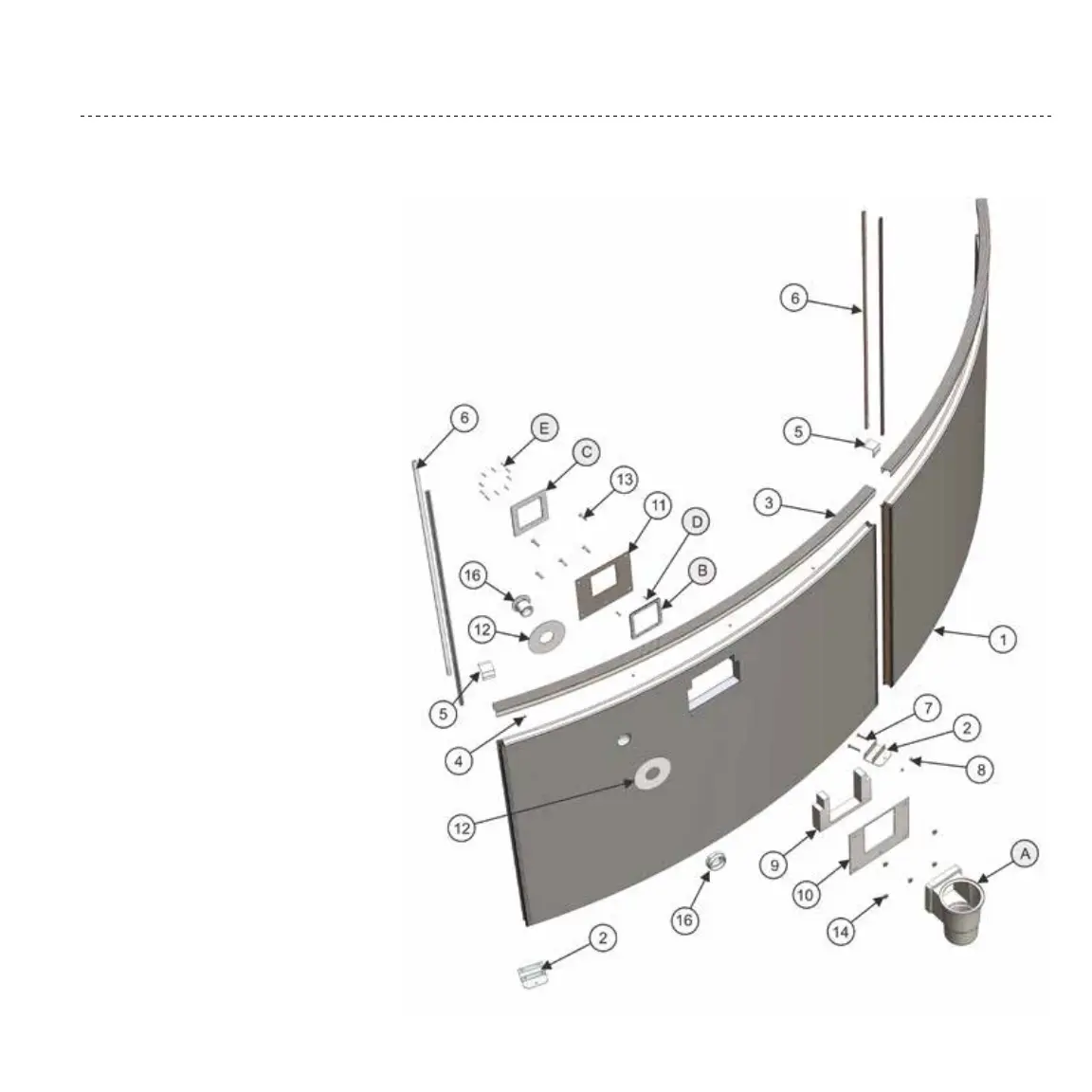

SECTION 1 - OPTIMUM OVAL ABOVE GROUND POOL
POOL
1 Panels
2 Bottom Plates
3 Top Rail
4 Cap Screws - 1/2”
5 Top Rail Clips
6 Splines, Long
7 Bolts, Long Hex Head - 2 1/2”
8 Nut
9 Skimmer Foam Insert
10 White Skimmer Plate (outside)
11 Gray Skimmer Plate (inside)
12 White Return Plate
13 Bolts, Long Flat Head - 2 1/4”
14 T Nut
15 Skimmer Mount Kit (see below)
16 Return Fitting
17 Vinyl Liner (not shown)
Skimmer Mount Kit
A Skimmer
B Double Layer Gasket
C Face Plate
D Screw, Pan Head
E Screw, Flat Head
Note: For complete skimmer and return tting parts
and assembly, see skimmer instruction attached.
COMPONENTS CHECK LIST
