SECTION 2 - OPTIMUM OVAL SEMI IN GROUND AND IN GROUND POOL
ASSEMBLE CHANNEL
STEP

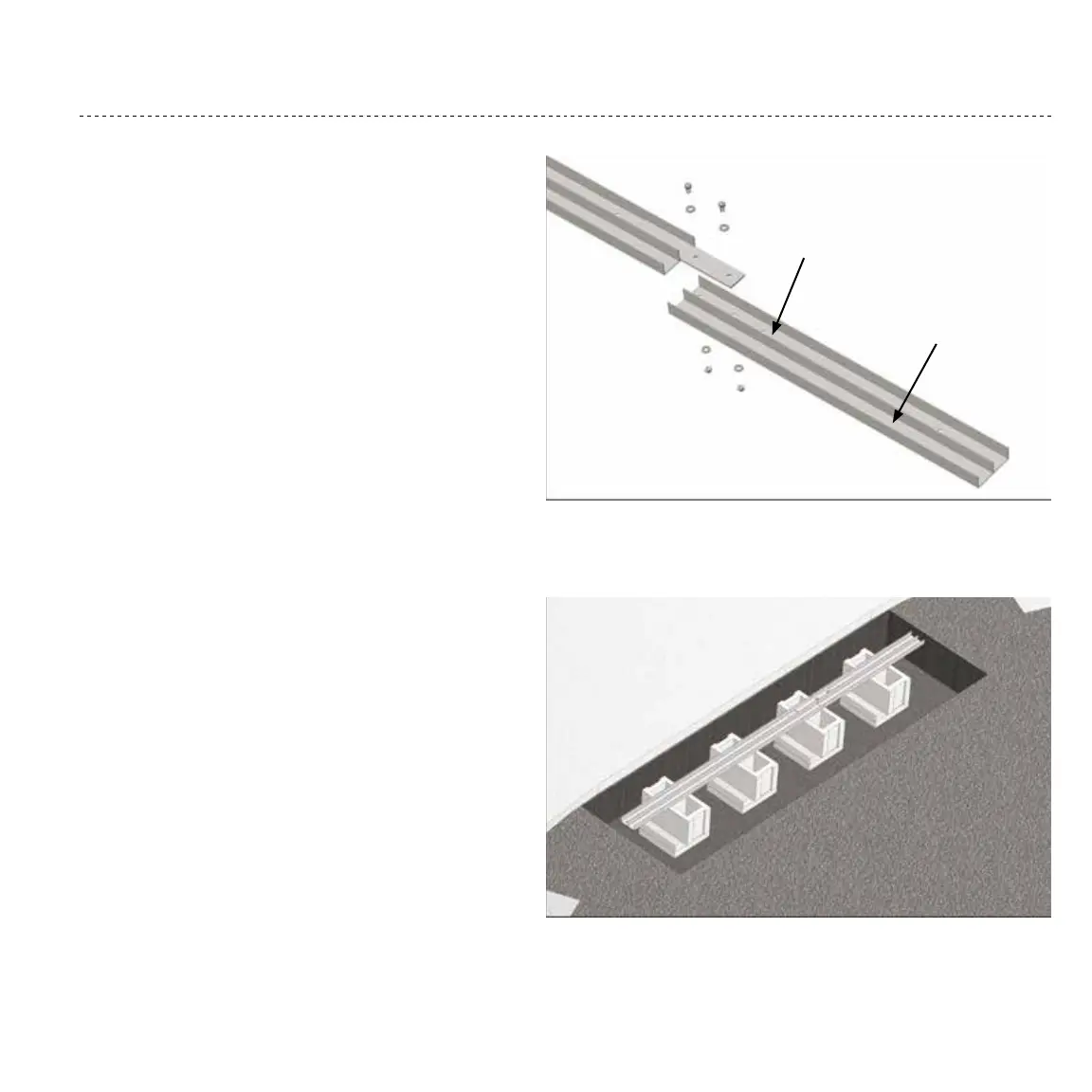

4.1 The Channel Assembly holds the at panels in place.
Assemble the extruded channel sections using 3/8”
x 3/4” bolts with corresponding nuts and washers as
shown.
Make sure tracks are clean and free of dirt..
The wall panels will be set in the inner channel. The
connecting bar is screwed in the outer bar. This will
be outside the pool when assembled
4.2 Place the channels above the concrete blocks. These
should be parallel to one another and the center line.
These will be longer than the at wall by 6”
4.1
4.2
This channel
is outside
Wall runs in
this channel
