Wilden P200 - P200 Plastic - Polyurethane, Center Ported; P200 Plastic PVDF, Center Ported

WIL-11070-E-15 Wilden
®
8
P200 Plastic - Polypropylene, Center Ported
P200 Plastic - PVDF, Center Ported
DIMENSIONS
ITEM
METRIC (mm)
STANDARD (inch)
A
480
18.9
B
66
2.6
C
259
10.2
D
381
15.0
E
434
17.1
F
99
3.9
G
104
4.1
H
122
4.8
J
259
10.2
K
288
11.3
L
32
1.3
M
353
13.9
N
310
12.2
P
124
4.9
R
157
6.2
S
10
0.4
DIN FLANGE
T
84 DIA.
3.3 DIA.
U
114 DIA.
4.5 DIA.
V
15 DIA.
0.6 DIA.
ANSI FLANGE
T
79 DIA.
3.1 DIA.
U
109 DIA.
4.3 DIA.
V
15 DIA.
0.6 DIA.
LW0492 REV. A
DIMENSIONS
ITEM
METRIC (mm)
STANDARD (inch)
A
476
18.7
B
66
2.6
C
257
10.1
D
376
14.8
E
429
16.9
F
99
3.9
G
104
4.1
H
122
4.8
J
257
10.1
K
288
11.3
L
32
1.3
M
353
13.9
N
310
12.2
P
124
4.9
R
157
6.2
S
10
0.4
DIN FLANGE
T
84 DIA.
3.3 DIA.
U
114 DIA.
4.5 DIA.
V
15 DIA.
0.6 DIA.
ANSI FLANGE
T
79 DIA.
3.1 DIA.
U
109 DIA.
4.3 DIA.
V
15 DIA.
0.6 DIA.
LW0493 REV.A

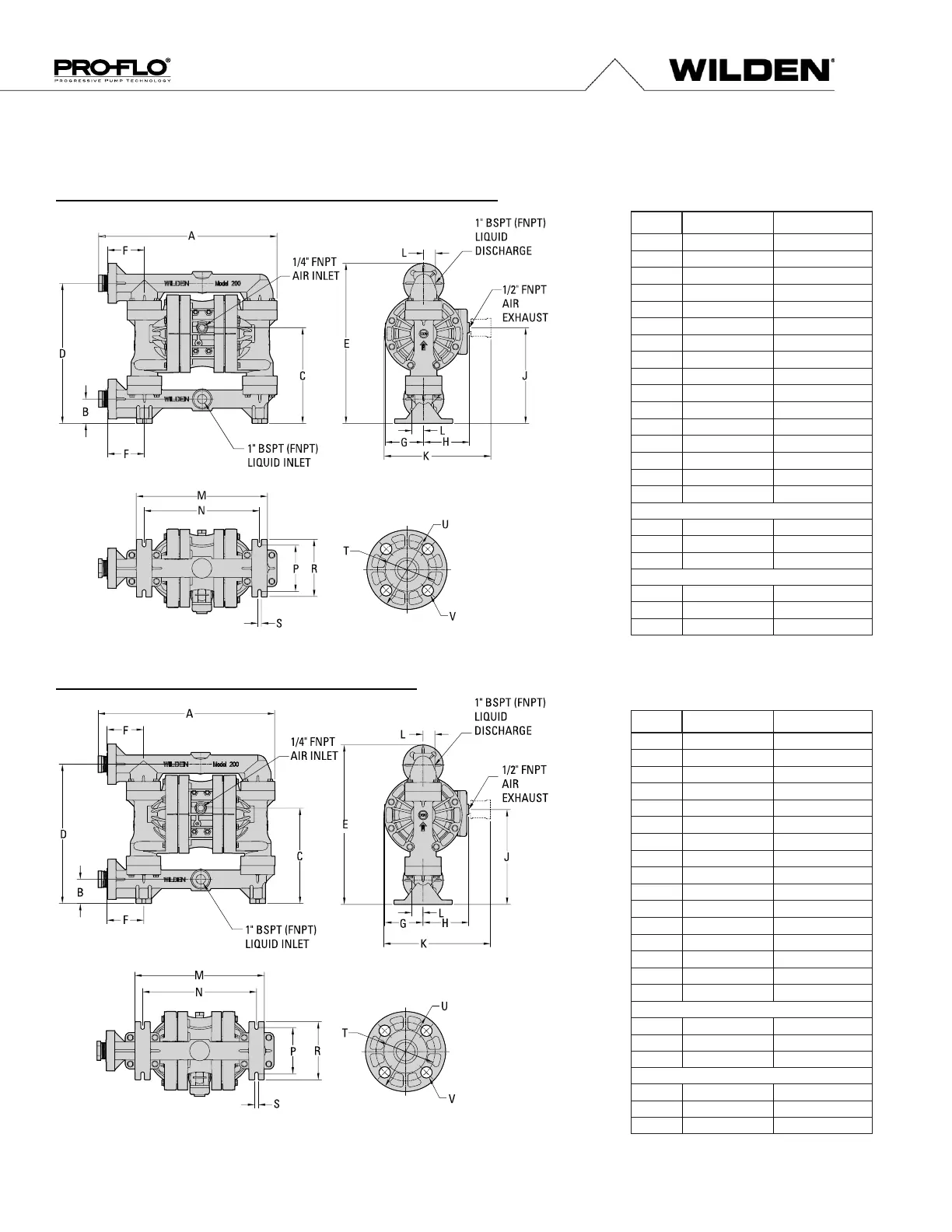

DIMENSIONAL DRAWING
