Wilden P200 - Section 5: Performance; P200 Plastic Rubber-Fitted; P200 Plastic TPE-Fitted

WIL-11070-E-15 Wilden
®
9
PERFORMANCE
P200 PLASTIC
RUBBER-FITTED
Ship Weight ...... Polypropylene 10 kg (22 lb)
PVDF 15 kg (32 lb)
PFA 18 kg (40 lb)
Air Inlet.................................... 6 mm (1/4")
Inlet ....................................... 25 mm (1")
Outlet ...................................... 25 mm (1")
Suction Lift ................... 3.6 m Dry (11.9')
9.1 m Wet (30.0')
Disp. Per Stroke
1
................. 0.32 L (.086 gal)
Max. Flow Rate ............ 220 lpm (58 gpm)
Max. Size Solids ............... 4.76 mm (3/16")
1
Displacement per stroke was calculated
at 4.8 bar (70 psig) air inlet pressure
against a 2 bar (30 psig) head pressure.

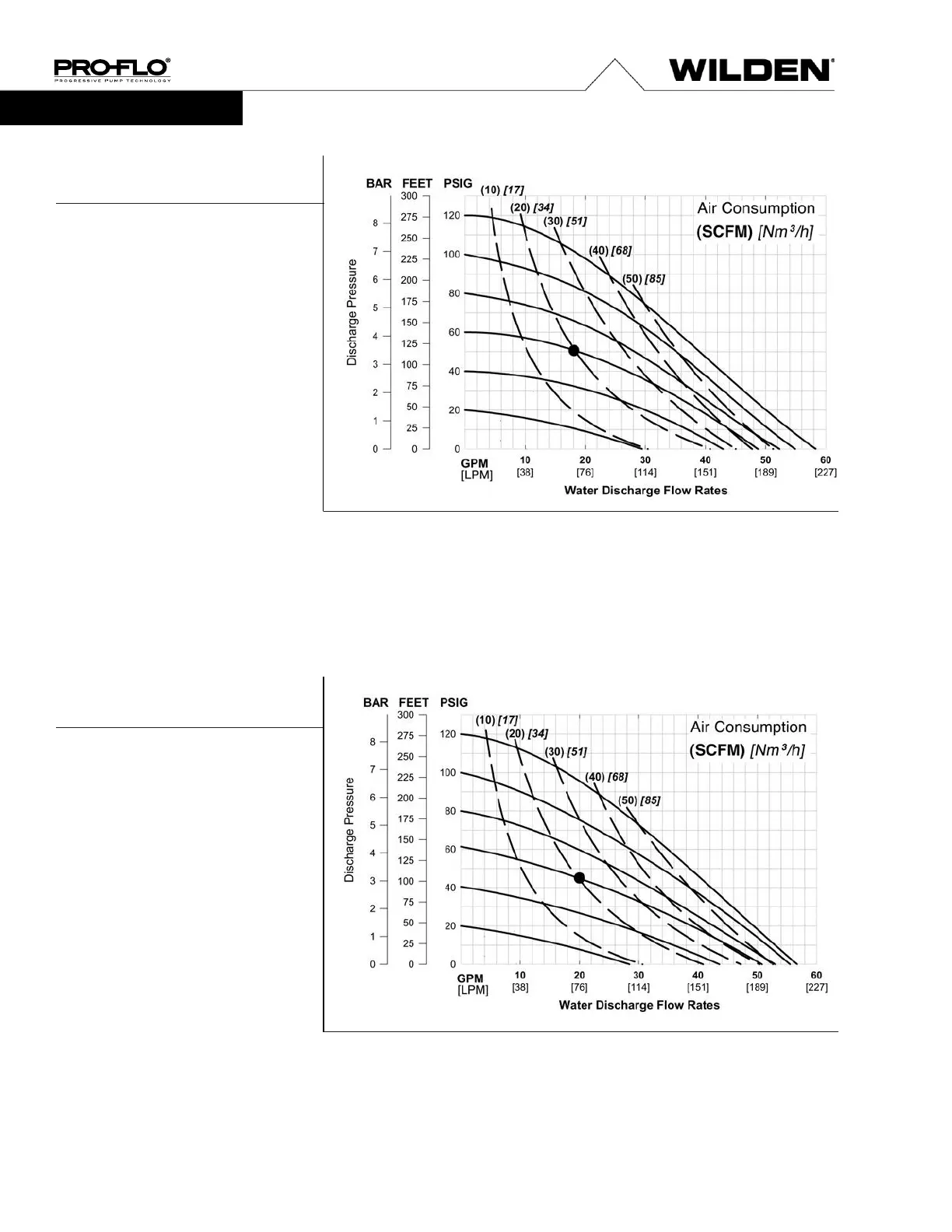

Example: To pump 68 lpm (18 gpm)
against a discharge head pressure of
3.4 bar (50 psig) requires 4.1 bar (60 psig)
and 34 Nm3/h (20 scfm) air consumption.
(See dot on chart.)
Caution: Do not exceed 5.2 bar (75 psig)
air supply pressure on PFA pumps.
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure on polypropylene
and PVDF pumps.
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily
operation parameters will fall in the center of the pump's performance curve.
P200 PLASTIC
TPE-FITTED
Ship Weight ...... Polypropylene 10 kg (22 lb)
PVDF 15 kg (32 lb)
PFA 18 kg (40 lb)
Air Inlet.................................... 6 mm (1/4")
Inlet ....................................... 25 mm (1")
Outlet ...................................... 25 mm (1")
Suction Lift ................... 3.5 m Dry (11.4')
9.8 m Wet (32.0')
Disp. Per Stroke
1
................. 0.33 L (.088 gal)
Max. Flow Rate ............ 216 lpm (57 gpm)
Max. Size Solids ............... 4.76 mm (3/16")
1
Displacement per stroke was calculated
at 4.8 bar (70 psig) air inlet pressure
against a 2 bar (30 psig) head pressure.
Example: To pump 76 lpm (20 gpm)
against a discharge head pressure of
3.1 bar (45 psig) requires 4.1 bar (60 psig)
and 34 Nm3/h (20 scfm) air consumption.
(See dot on chart.)
Caution: Do not exceed 5.2 bar (75 psig)
air supply pressure on PFA pumps.
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure on polypropylene
and PVDF pumps.
Section 5
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily
operation parameters will fall in the center of the pump's performance curve.
