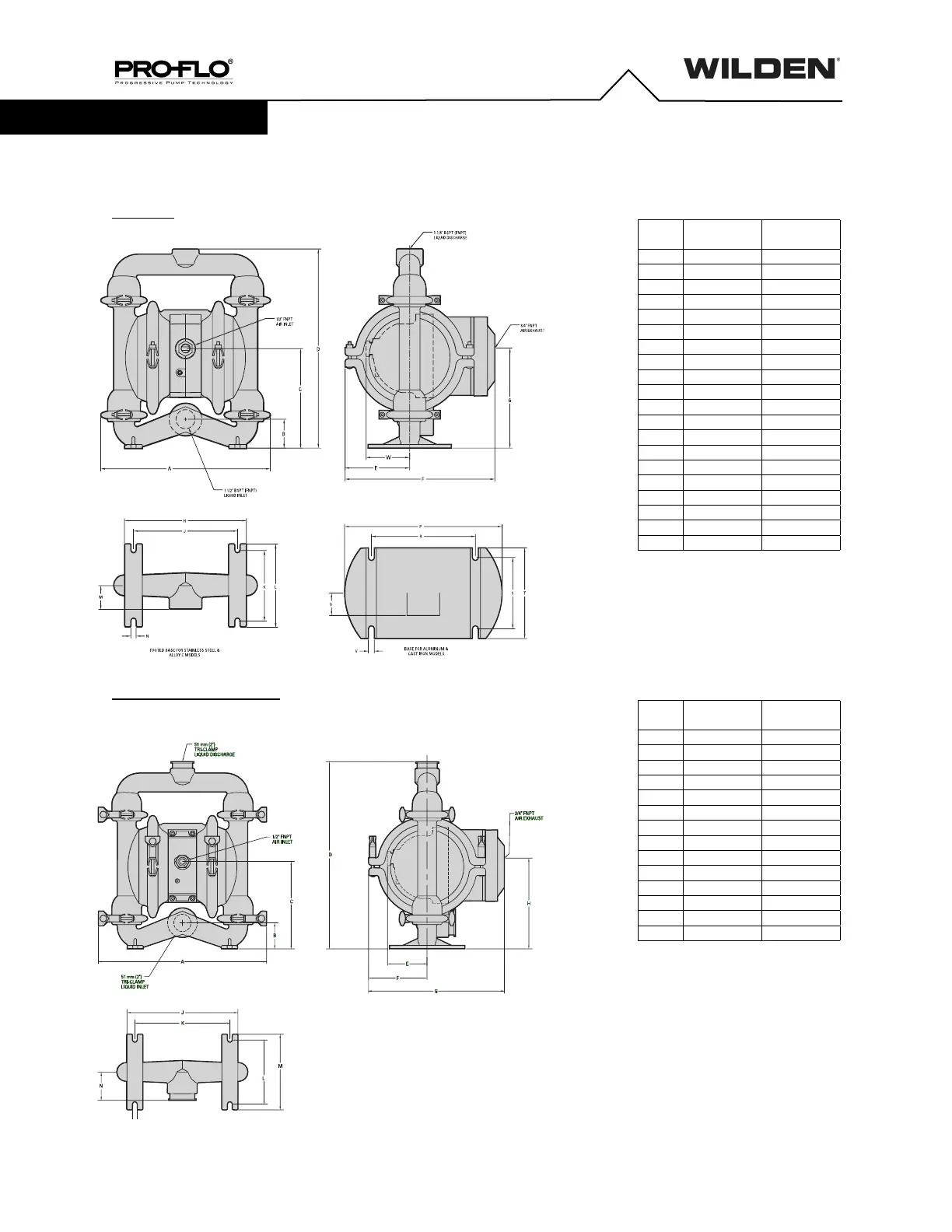

Wilden P4 - DIMENSIONAL DRAWING

WIL-10183-E-04 7
P4 Clamped Metal
SECTION 4
P4 Metal
DIMENSIONS
ITEM
METRIC
(mm)
STANDARD
(inch)
A
368 14.5
B 64 2.5
C 206 8.1
D 429 16.9
E 138 5.4
F 320 12.6
G 211 8.3
H 262 10.3
J 224 8.8
K 150 5.9
L 178 7.0
M 51 2.0
N 10 0.4
P 338 13.3
R 224 8.8
S 155 6.1
T 193 7.6
U 48 1.9
V 13 0.5
W 91 3.6
LW0338 REV. A
P4 Metal Saniflo™ FDA
DIMENSIONS
ITEM
METRIC
(mm)
STANDARD
(inch)
A
396 15.6
B 64 2.5
C 206 8.1
D 422 17.4
E 91 3.6
F 138 5.4
G 320 12.6
H 211 8.3
J 262 10.3
K 224 8.8
L 152 6.0
M 178 7.0
N 69 2.7
P 10 0.4
LW0339 REV. A
DIMENSIONAL DRAWING
