PS15 METAL
FULL-STROKE
PTFE-FITTED
Ship Weight .......... Aluminum 55 kg (121 lb)
316 Stainless Steel 105 kg (230 lb)
Cast Iron 93 kg (205 lb)
Air Inlet.................................................. 3/4"
Inlet ....................................................... 3
"
Outlet .......................................................
3
"
Suction Lift ...................... 6.2 m Dry (20.2')
8.6 m Wet (28.4
'
)
Disp. Per Stroke
1
..................... 5.1 L (1.34 gal)
Max. Flow Rate .............. 916 lpm (242 gpm)
Max. Size Solids ..................... 9.5 mm (3/8
"
)
1Displacement per stroke was calculated
at 4.8 bar (70 psig) air inlet pressure
against a 2.1 bar (30 psig) head pressure.
Example:
To pump 647 lpm (171 gpm)
against a discharge head of 1.4 bar
(20 psig) requires 5.5 bar (80 psig) and
161 Nm3/h (95 scfm) air consumption
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.

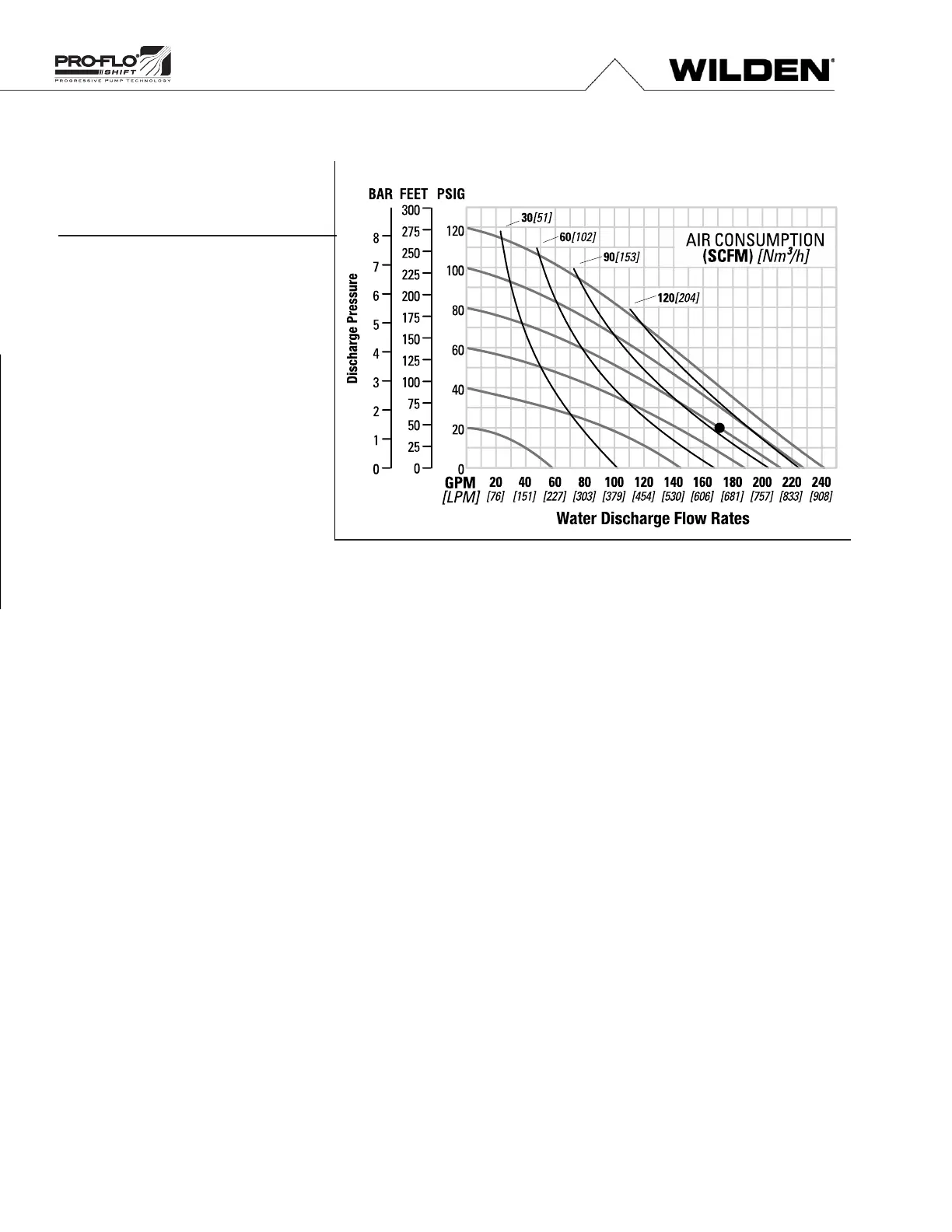

Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily
operation parameters will fall in the center of the pump's performance curve.
