Installing Your Furnace
12
MOUNTING OPTIONAL SIDE OUTLET GRILLE KIT
NO. 6701
Refer to Fig. 14.
1. Before setting furnace into position, cut 5"x 7" rectangular
opening in furnace outer casing where marked. See Page 10,
Fig. 10.
2. Place the outer boot against casing with inner flanges exactly
on edges of cut hole, mark screw location, remove boot and
drill #33 holes for the sheet metal screws.
3. Remove the knockout plate and knockouts for screws from the
inner liner.
4. Secure 1"x 1" wood strip (not included with this kit) to the wall
next to the side outlet as a backup for metal filler strips.
5. Fasten metal filler strips to the side of the furnace casing with
the front surface exactly opposite the front of wood backup
strip.
6. After the furnace is placed in position, place the outer boot
through the plaster ground tight against the furnace casing.
Then mark and cut off the outer end flush with the wall
surface.
7. Press the inner boot against liner, mark and cut it off flush with
the wall surface. Install the outer boot first, then the inner boot,
fastening through all holes with the screws provided.
OPTIONAL 2-WAY DIFFUSING GRILLE KIT NO. 6703
Refer to Fig. 15.
CAUTION: For use only in conjunction with a front
outlet when the furnace is spaced at least 12-
inches from an intersecting wall (see Page 8, Fig.
5).
Metal clips on backside of the optional grille snap into the side
louvers of the front warm air outlet. Adjust clips with pliers if
necessary. Grille may also be attached with sheet metal screws.
1-WAY FRONT DIFFUSING GRILLE KIT NO. 6704
Follow instructions for 2-WAY FRONT DIFFUSING GRILLE 6703
ABOVE, except furnace clearance to an adjacent wall must be ¾-
inch minimum.
CAUTION: Use only optional kits available from
the manufacturer.

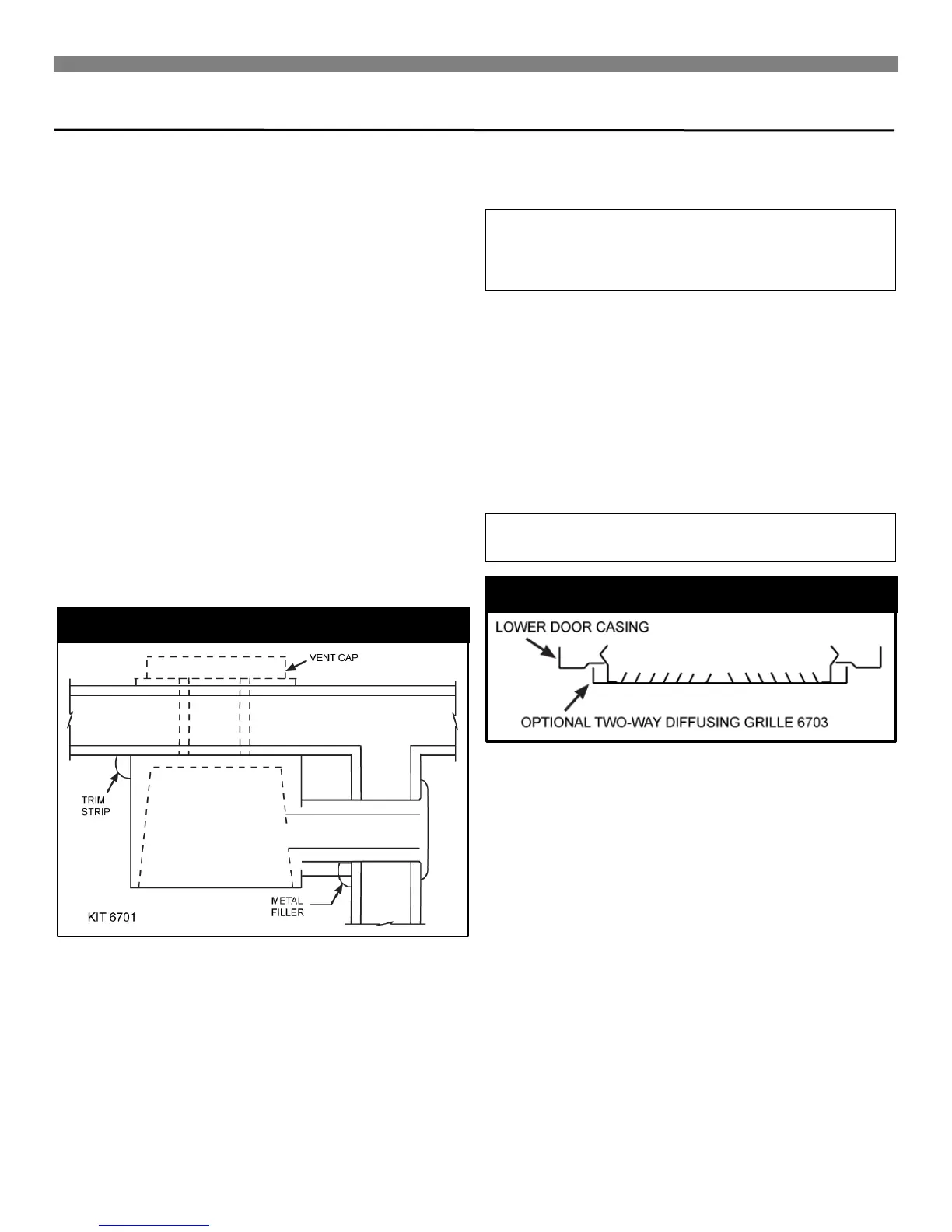

FIGURE 14 Mounting Grille Kit 6701
FIGURE 15 Two-Way Diffusing Grille 6703
