7
Installing the Wilson Universal Connector
Amplier
Universal
Connector

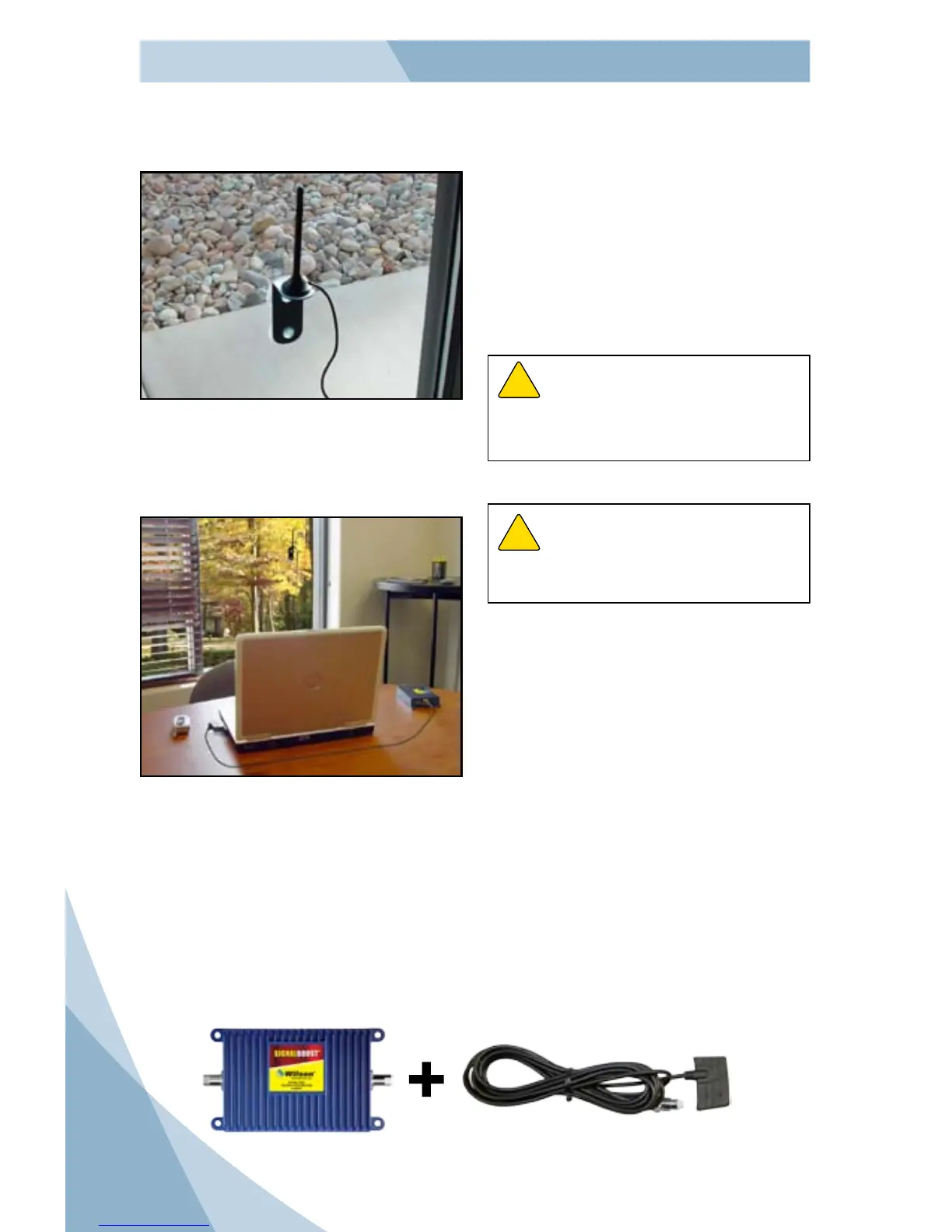

Installing the Antenna
To receive the best cell signal, select a window location at least 12 inches away from any
radio or television antennas and free of obstructions.
Using the suction cups, position the
optional mounting bracket on the window at
a height convenient to where the amplier
will be located, then attach the antenna to
the bracket.
The antenna must be installed vertically.
Signal performance will be degraded if the
antenna is not vertical.
Select a location to install the amplier that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations are:
• On a desk or table top
• In a bookshelf
• On the oor
Run the cable from the antenna and attach it to the FME-Male connector labeled “outside
antenna” on the amplier.
Attach the universal connector cable to the extension cable and attach the extension cable to
the FME-Male connector labeled “Universal Connector” on the amplier.
Then attach the universal connector to your cellular data card.
Home/Ofce Installation
Installing the Wilson SIGNALBOOST™ Amplier
Warning: Do not plug in the AC power
supply until the outside antenna and universal
connector cables are attached to the amplier.
!
Warning: The bracket mounted
antennas used with this amplier must have a
separation distance of at least 8 inches from
all persons.
!
