Wimius K1 - Horizontal Keystone and Focus Adjustment

（2）Focus Adjustment
②Horizontal Keystone

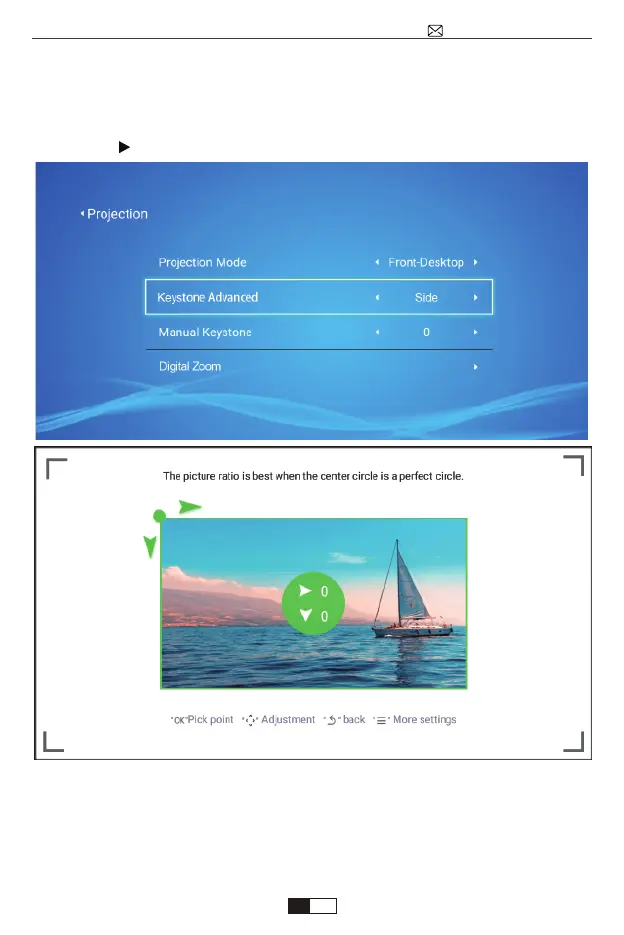

When you choose “Keystone Advanced Side”, you can set “4-point Keystone”as
your need: Horizontal Value ±64, Vertical Value from±36
Just click “OK” button to pick the point you want adjust at first, and then presse
the button " " or "▼ " to set the value needed as shown below.
Turn the trackwheel clockwise to bring the trackwheel to the end, then slowly
rotate the trackwheel counterclockwise. At the same time, carefully observe the
pixels on the screen. When the image particles are the clearest (Subjed to the
middle of the image), the pixels on the screen are the best focus of the lens.
