Function and Integration CMD controller
01750060162 A Cash Media Dispenser Version 4 - Service Manual 2-23

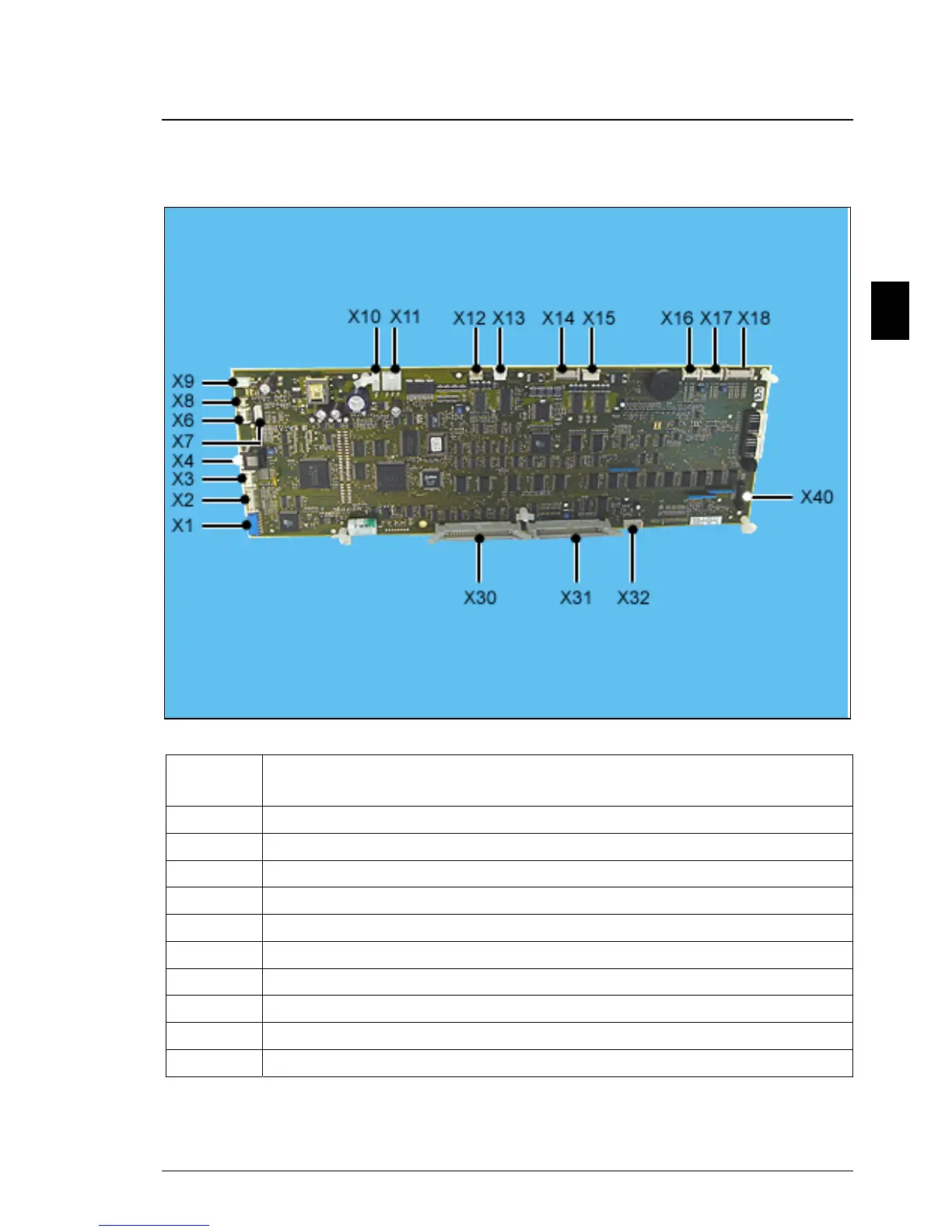

Connectors on the CMD controller
Connec-
tor
Description
X1 Mechanical thickness sensor
X2 Shutter
X3 Transport module
X4 V.24 interface from PC
X6 Door switch and safety switch in safe
X7 V.24 interface SCOP card (AVT2800)
X8 Special electronics
X9 24 V power supply
X10 24 V connection to SCOP card (AVT2800)
X11 Motor M1
