Window Master CompactSmoke WSC 104 - Page 11

11
When using actuators with MotorLink
®
the max/total cable length is 50m regardless of the result of the above mentions formula.
Actuators with MotorLink
®
Do not use the PE wire / green/yellow wire!
cable cross
section [a]
Total
actuator current [I]
3 wire
0.75mm²
3 wire
1.50 mm²
5 wire
1.50 mm²
2 wire
parallel
3 wire
2.50 mm²
5 wire
2.50 mm²
2 wire
parallel
3 wire
4.00 mm²
1A
42m
50m
2A
21m
40m
50m
3A
14m
28m
50m
47m
50m
4A
11m
21m
42m
35m

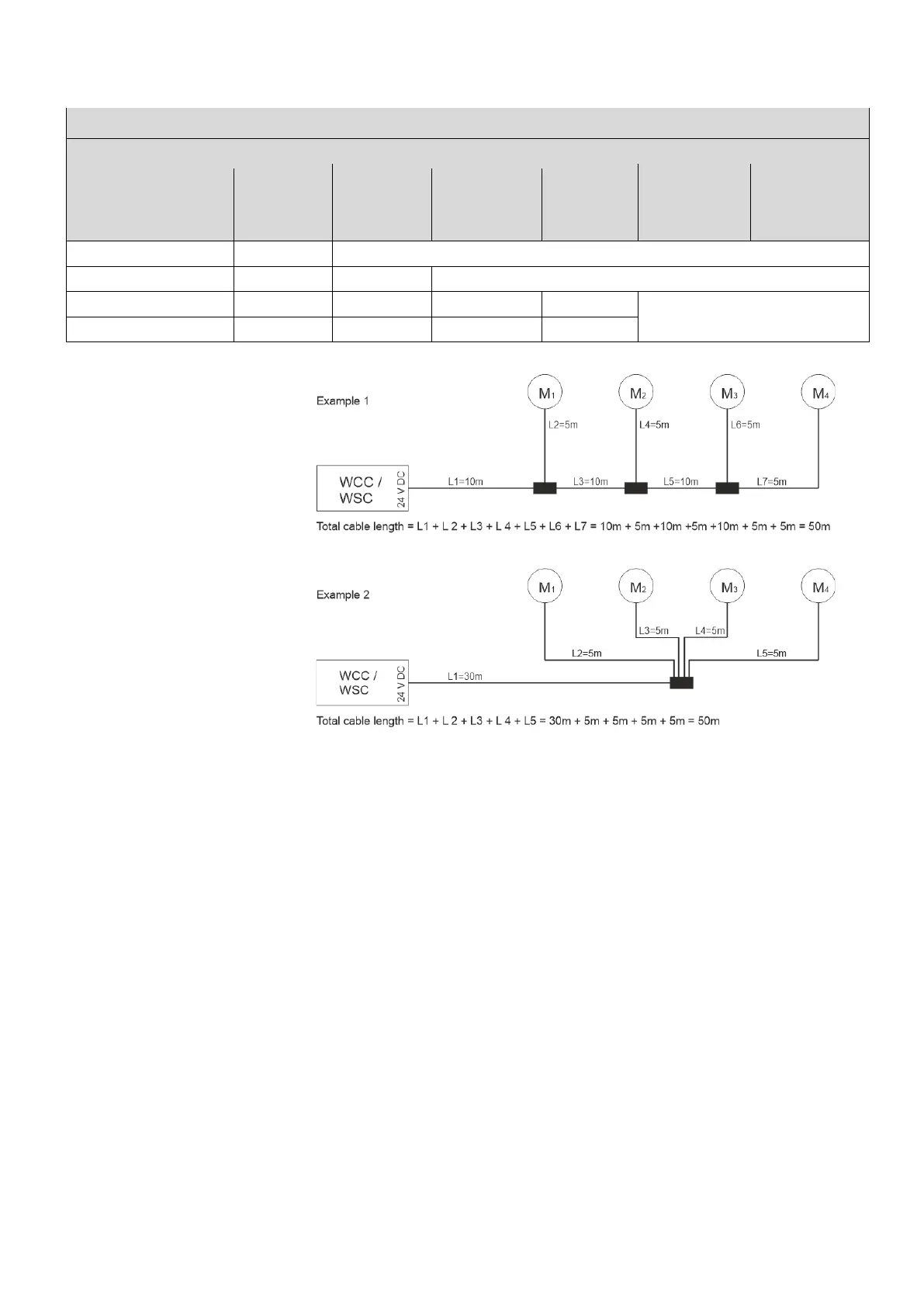

Definition of total cable length
The total cable length is defined as
the sum of all cables from the panel
output to the last actuator. Including
the cable mounted on the actuator.
For example, in case of 4 actuators
with 5m cable each, the remaining
cable length is 30m.
