Window Master CompactSmoke WSC 104 - DIP Switch Configuration; Back-Up Batteries

18

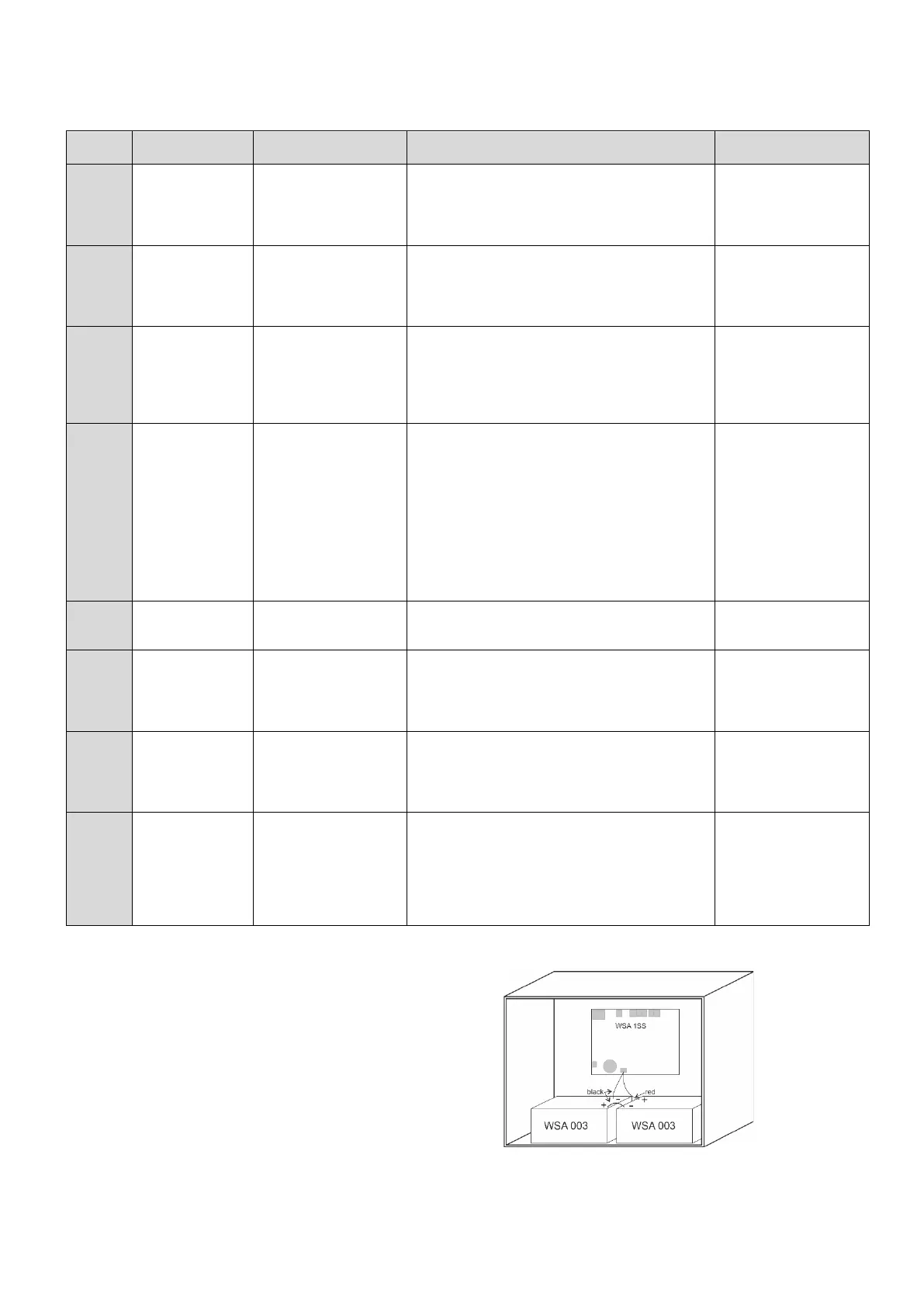

11 DIP switch configuration
For easy configuration the smoke panel includes 8 DIP switches. The factory settings for all the DIP switches is OFF.
DIP
switch
Description on
the panel
Description
DIP switch position
Possible
consequence
1
No 230V
window pos.
unchanged
No 230V window
position unchanged
ON: No change in position in case of power
failure
OFF: The windows close in case of power
failure.
This function
becomes suspended
when DIP switch 2 is
ON.
2
Moment. act.
Open / Close
Momentary action
OPEN / CLOSE
(Comfort ventilation)
ON: The window actuators run for as long as
the comfort keypad is pressed.
OFF: The windows close / open completely
when pressing the comfort keypad once.
3
Re-triggering
(VdS)
VdS triggering by
alarm
ON: When the alarm is triggered the actuators
will, in accordance with VdS 2581, for a
duration of 30min be triggered to shortly
reverse and open every second minute.
OFF: Normal alarm
4
Close on smoke
detc. (B)
Smoke detector –
CLOSE
(Primarily used in
Switzerland)
ON: When the alarm is triggered by a smoke
detector, the windows will close in all smoke
zones. A following operation of a break glass
unit will leave the system in alarm but trigger
the actuators to open the windows. Break
glass units have higher priority than smoke
detectors.
OFF: Regardless of if the alarm is triggered by
smoke detectors or break glass units, the
window actuators will open the windows
5
Open / Close on
fire
The windows open or
close in case of fire
ON: The windows close in case of fire
OFF: The windows open in case of fire
6
Limited opening
comfort. vent
Window opening is
limited
(Only by comfort
ventilation)
ON: The window opening is limited to 30%
during comfort ventilation
OFF: The windows will open 100% during
comfort ventilation
7
Time comfort
vent.
Window opening is
time limited
(Only by comfort
ventilation)
ON: The windows will close after 30min during
comfort ventilation
OFF: The windows will close when triggered
by safety signal or close command
8
Pyrotechnic gas
generator
Pyrotechnic gas
generator is
connected
ON: A pyrotechnic gas generator is connected
OFF: Window actuators are connected
When DIP switch 8 is changed from ON to
OFF the panel must be re-configured, see
section 13 “Configuring of panel”.
12 Back-up batteries
Connect 2 pcs. back-up batteries type WSA 003
See section 17 “Maintenance” for further
information.
Panel with back–up batteries.
