Window Master CompactSmoke WSC 104 - Cable Plan for Connection to WSC 104; Description of Card and Mains Connection; Mains Connection and Power Supply (WCA 1 P1)

12

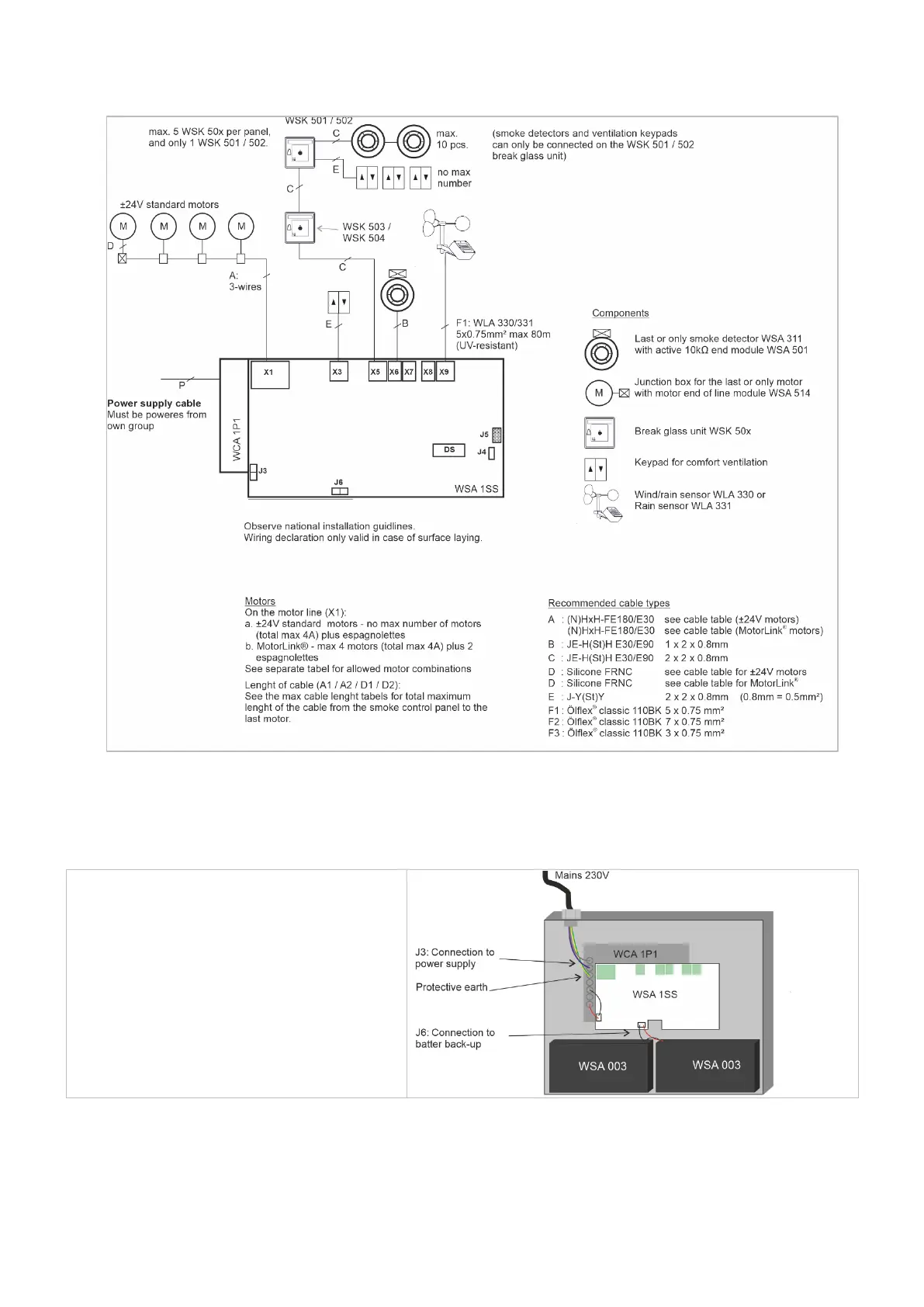

9 Cable plan for connection to WSC 104
The above plan shows the WSC 104 with ±24V standard actuators connected.
10 Description of card and mains connection
The panel includes a power supply unit (SMPS) and a main card.
10.1 Mains connection and power supply (WCA 1P1)
WCA 1P1 - 100W SMPS unit
The power supply is located under the main card.
The cable inlet is in the top left corner of the panel.
The panel must be grounded by means of protective
earth.
