Window Master CompactSmoke WSC 104 - Page 16

16
Connection of different types of smoke detectors to CompactSmoke™
Smoke detector type
WSA 311
Hekatron
MSD 523
(max 5 pcs)
Hekatron
SSD 521/a
(WSA 200 6101)
Connect to WSA 1SS
X6.1
In +
2
2
X6.2
Com -
1
1
Connect to WSK
p 7
Com -
1
1
p 8
In +
2
2
ALWAYS connect 10 KOhm in between
Com – and Out +
1 and 3
1 and 3

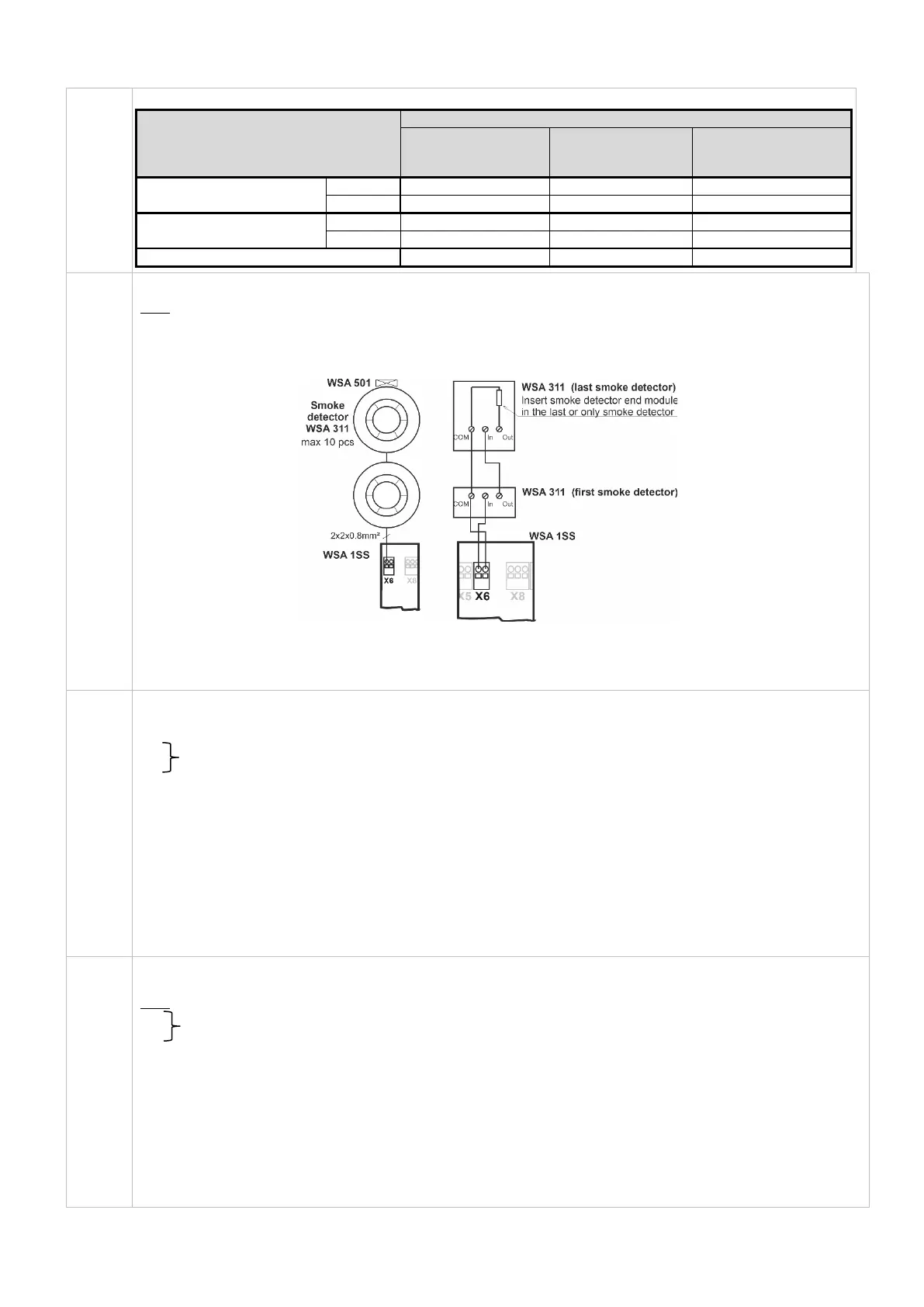

X6
For connection of smoke detector type WSA 311.
Data
6.1 +
6.2 -
Imax = 3,4mA
When no smoke detector is connected to X6, a 10kΩ resistor is connected to the input.
The WSC 104 is type tested with 4 x WSA 311.
For connection of a different type of smoke detector, see above.
X7
Solid state output for transmission of alarm signal to 3rd party systems, e.g., Fire Alarm System
Data
7.1 normally open. Closed = alarm
7.2
Solid state output for transmission of alarm signal to 3’rd party systems.
This output will be closed, if the Smoke zone is in active emergency open or close status.
Active alarm, means close circuit on the connection pins.
Data
Max voltage: 30 Vp (peak)
Max output: 150 mA
Typical On-resistance (Closed): 4,7 Ω
Max On-resistance (Closed): 8 Ω
Max switching speed: 2 ms
X8
Solid state output for transmission of fault signal to Fire Alarm System
Data
8.1 Normally closed. Open = Fault
8.2
Solid state output for transmission of fault signal to Fire Alarm System.
A fault must last min 20 seconds before the relay indicate a fault.
Data
Max voltage: 30 Vp (peak)
Max output: 150 mA
Typical On-resistance: 4,7 Ω
Max On-resistance: 8 Ω
Max switching speed: 2 ms
