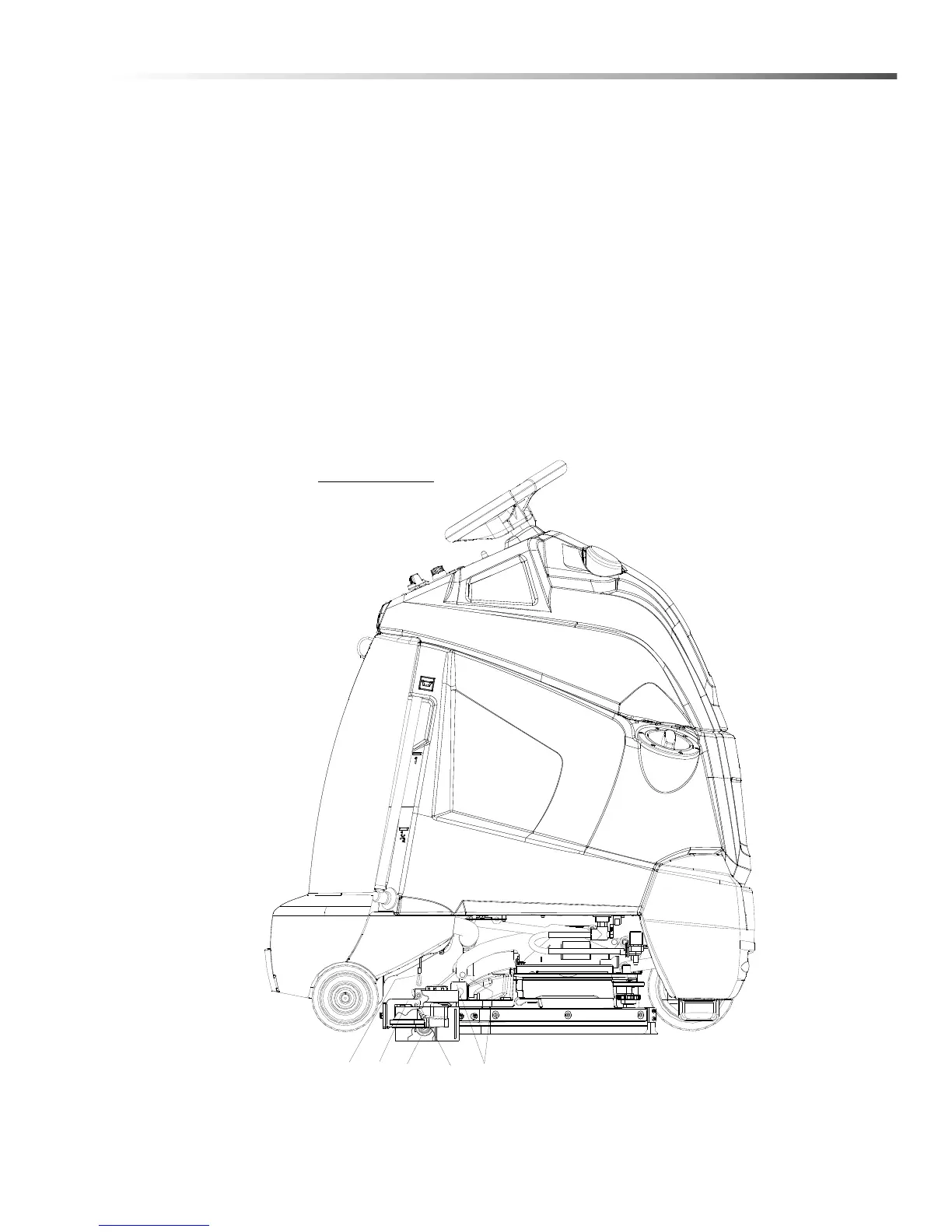

1. Squeegee Latch
The squeegee latch holds the squeegee in place.
2. Squeegee Hose and Tube
The squeegee hose and tube carry the recovered solution to the recovery tank.
3. Squeegee Wheels
The three squeegee wheels support the squeegee at the correct height and angle so that no adjustment is
required.
4. Double Scrub Support Cable
The double scrub support cables retain the deck in the double scrub position.
5. Double Scrub Cable Hook
The double scrub cable hook is the connection point for the double scrub support cable.
Since the squeegee is raised and lowered by the scrub deck, the double scrub position is set manually.
