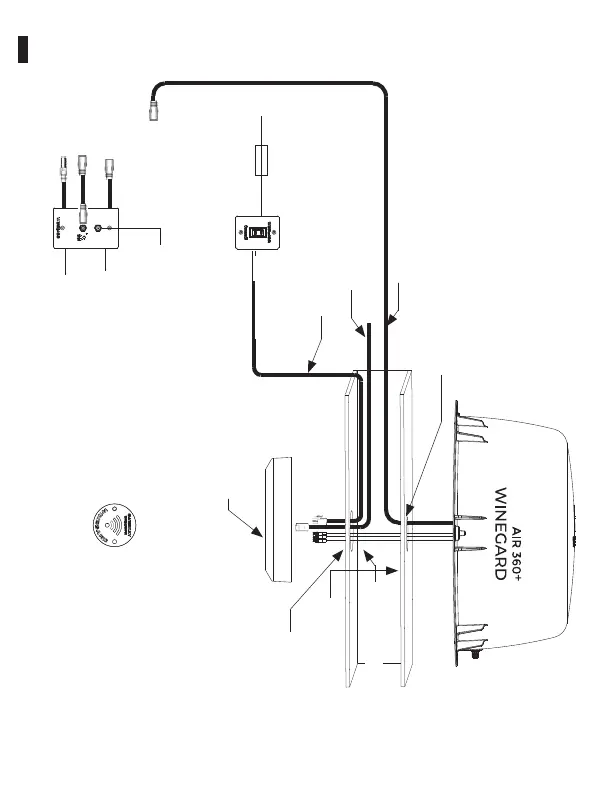

Installation Diagram
7
OTA cable
Gateway
1”-3" hole in roof
Gateway power cable
Red wire
to switch
Black wire
to ground
Ethernet cable (optional)
7" max roof thickness
To ANT IN
3A fuse
+12V DC
1" hole in ceiling
Must be directly
below hole in roof
Prewire hole cover
+12V DC
TV out 2
TV out 1
Ground
WiFi/4G cables
ANT IN
Satellite
Passthrough
