6. Attach coax cable from antenna assy. to jack on mount, see Figure 10.

Make sure to feed coax cable under the shaft. Slide weather boot over boot

collar.

7. Attach antenna/feed assembly to mount with (2) 10-32 x 1-1/8" screws and

washers provided, see Figure 10. (Torque: 6 ft. lbs.)

Rev. 5/99

Antenna/Feed

Assembly

(2) 10-32 x 1/1/8"

Hex Head Screw

(2) 10-32 Washers

Mount Assembly

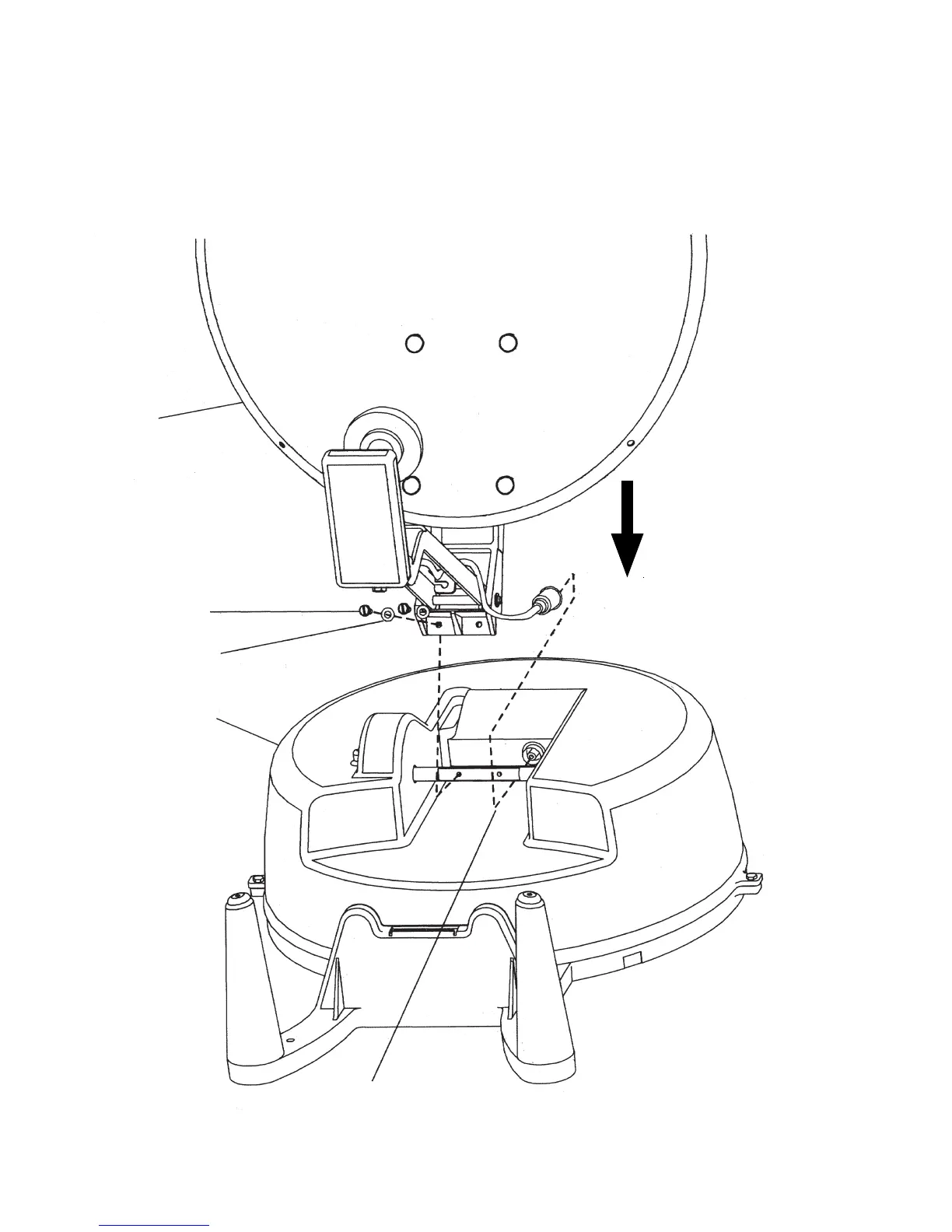

Figure 10

Feed coax under shaft.
