WINEMASTER WineC25 - Sealing and Frame Levelling; Fitting the Air Conditioner Unit

VERSION 2.1 06.2020
USER GUIDE WINE C25 / C25S(R)/WINEC25X/WINEC25S(R)X
Page 10

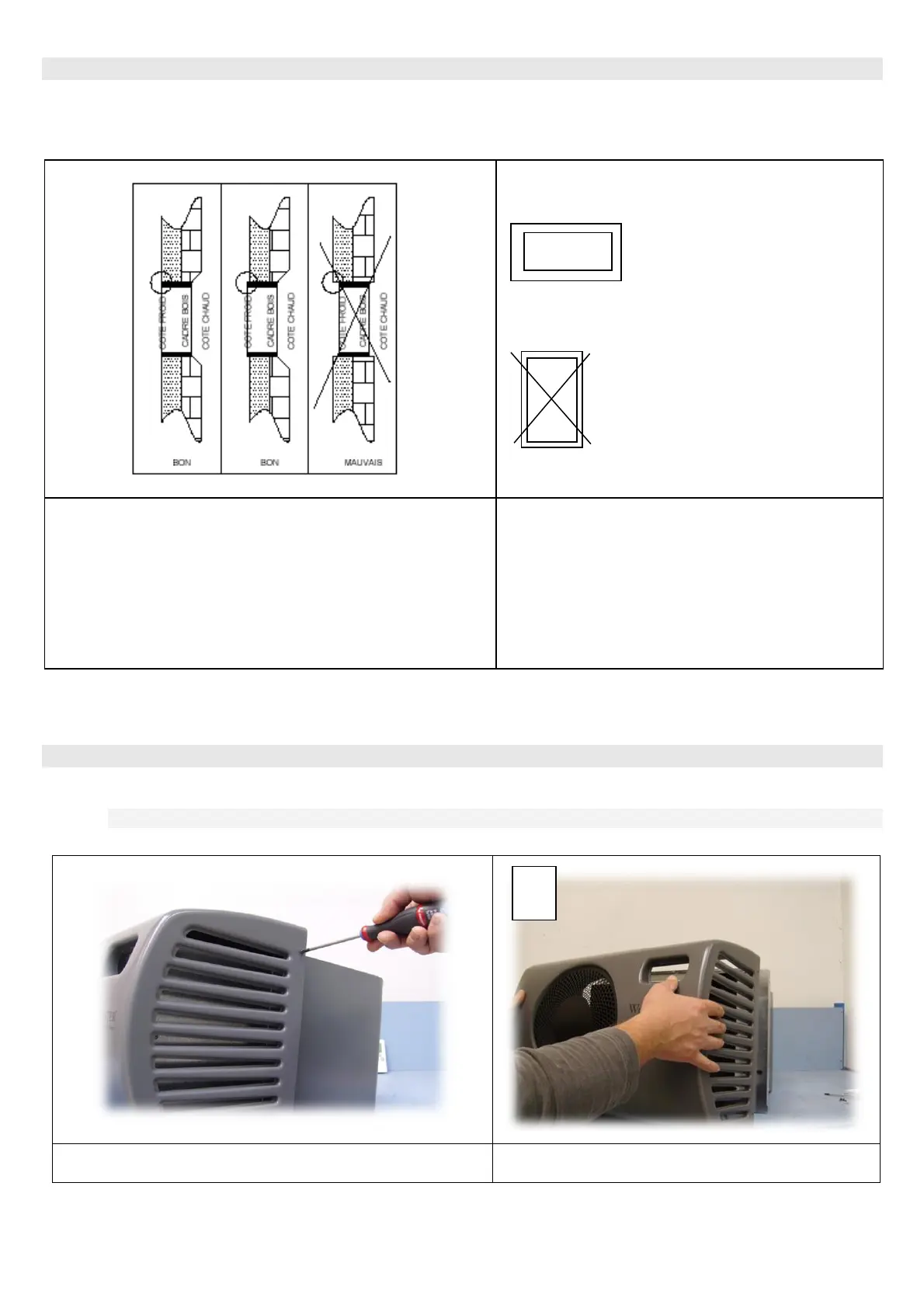

2.2 Sealing and wooden frame levelling
2.3 Fitting the air conditioner
2.3.1. Removing the plastic cover
Unscrew the 2 screws on each side of the air condi-
tioner
Remove the cover
CORRECT
INCORRECT
- Seal the wooden frame in order it fit flush with the
inner wall of the cellar.
- If the wall is thicker than the wooden frame, cut a
wedge-shape in the wall (more than 220 mm)
- Fill the joint between the wooden frame and the insu-
lation
- Do not put polyurethane foam between the unit and
the wooden frame ( for removing purpose).
The wooden frame must be level;
the widest side at the horizontal
1
2
2
1
