WINEMASTER WineC25 - Water Drain System Installation

VERSION 2.1 06.2020
USER GUIDE WINE C25 / C25S(R)/WINEC25X/WINEC25S(R)X
Page 11

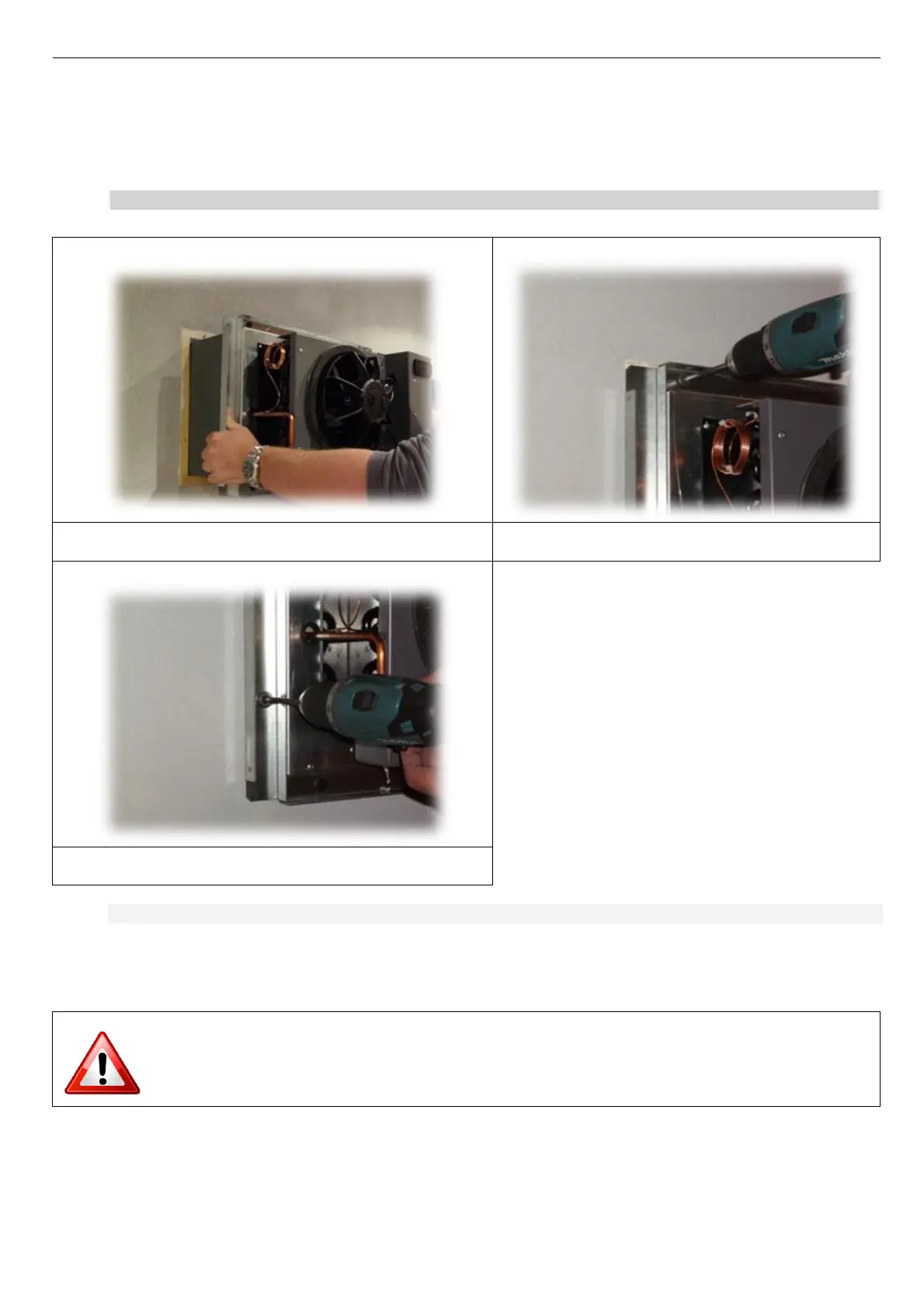

2.3.2. Fitting the device into the wooden frame
Position the air-conditioner in the frame from inside
the cellar
Tighten the two screw/washer units at the top
Tighten the two screw/washer units on the side
2.3.3. Installing the water drain system
The electrical connection cable and the PVC condensate drain are situated inside the cellar. Check the seal
between the wooden frame and the Winemaster
®.
If the power cable is damaged, it has to be replaced by the producer, his
after-sale service or qualified people in order to avoid any danger.
