CENTRAL AIR CONDITIONING
SYSTEM
NOTE: See “Electronic Thermostat” for instruc-
tions on turning the air conditioner on
and changing the thermostat settings.
The central air conditioner is mounted in an
exterior compartment on the right (passenger)
side of the coach. The compartment door opens
for easy maintenance and periodic service. (See
“Condenser Coils”) The cooled air is forced
through ducts in the ceiling of the coach. Inside
air returns to the air conditioner through a filter
system beneath the rear bed. (See “Air Condi-
tioner Filters”.)
Air Conditioner Filter
The disposable furnace type filter is located
beneath the mattress board in the rear bed cabi-
net. The filter must be inspected and replaced
periodically so the air conditioner will operate
efficiently.
To Replace the A/C Filter:
• Lift the foot of the rear bed mattress board,
which is hinged near the head of the mat-
tress. It is supported by gas props while
open.
• Remove the filter from of the bracket assem-
bly at the passenger side of the cabinet or
floor depending on model.
• Place the new filter into position, being care-
ful to observe airflow markings on the edge
of the filter.
A/C Filter Size: 14” x 20” x 1” (35U & 37G)
or 10” x 20” x 1” (30Y & 32V)
NOTE: Do not block the filter in any way, such
as by setting packages or newspapers,
etc., on top of it. There must be free air
flow for the air conditioner to operate
efficiently.
Condenser Coils
The condenser is located in a compartment on
the right side of the coach. The condenser is the
large, black, rectangular area that looks like a car
radiator.
Periodically sweep debris carefully from the
fins of the condenser. Rinse dust off with clean
water. The condenser coils must be clean and
free of dust, debris and insect particles, etc., for
the air conditioner to cool efficiently.
Further Information
See the air conditioner manufacturer’s operat-
ing instructions supplied in your Owners Info-
Gas Heat = Furnace
Elec Heat = Heat Pump
TM

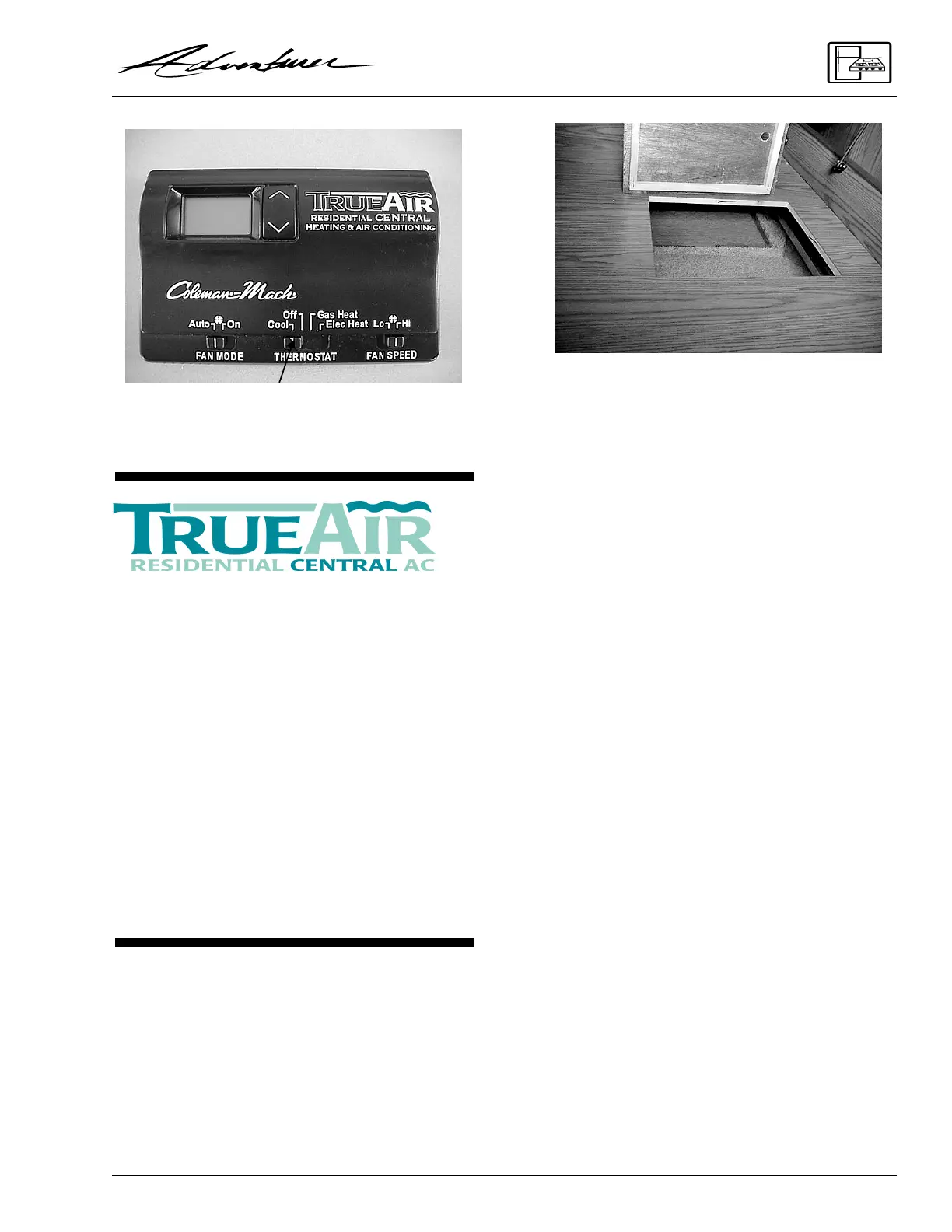

AC Filter under mattress board
