SECTION 2
DRIVING YOUR MOTOR HOME
NOTE: When parking at an uneven site, always
park the front of the motor home to the
downhill side. This allows you to level by
raising the front end rather than the rear.
Since only the rear wheels are locked
while in PARK, raising the rear wheels
off the ground could allow the vehicle to
roll off the jacks.
Further Information
See the HWH Operator Manual supplied in your
Owner InfoCase. It contains detailed instruc-
tions, precautions and technical information. It
also contains troubleshooting instructions for op-
erating system if any functions fail.
NOTE: If one of the leveling jacks should fail to
retract, it can be normally retracted by
opening a valve on the hydraulic pump.
The jacks are spring loaded to retract
when hydraulic line pressure is relieved.
See the HWH Operator’s Manual includ-
ed in your InfoCase for specific instruc-
tions on which valve to open and what
precautions to follow. The hydraulic
pump is mounted between the front chas-
sis frame extensions just behind the front
bumper of the coach.
SLIDEOUT LIVING ROOM
The slideout living room provides a spacious
living area at the push of a button. The slideout
room is extended and retracted using a hydraulic
mechanism with an electronic control system.
The slideout control switch is located near the
leveling system pad on the lower left dash area.
Travel Straps
The travel straps must be released before
attempting to extend the room or damage to the
coach will result.
Keep all people clear of the coach
while the leveling system is operat-
ing.
Do not use the leveling jacks to sup-
port vehicle for service or tire chang-
ing.
Do not rely only upon the warning
lights to indicate when jacks are up. It
is the owner’s responsibility to check
that all jacks are up before moving
the coach
WARNING
CAUTION
Release slideout room travel straps
before attempting to extend slideout
room. Fasten travel straps before
driving vehicle. See instructions
below.

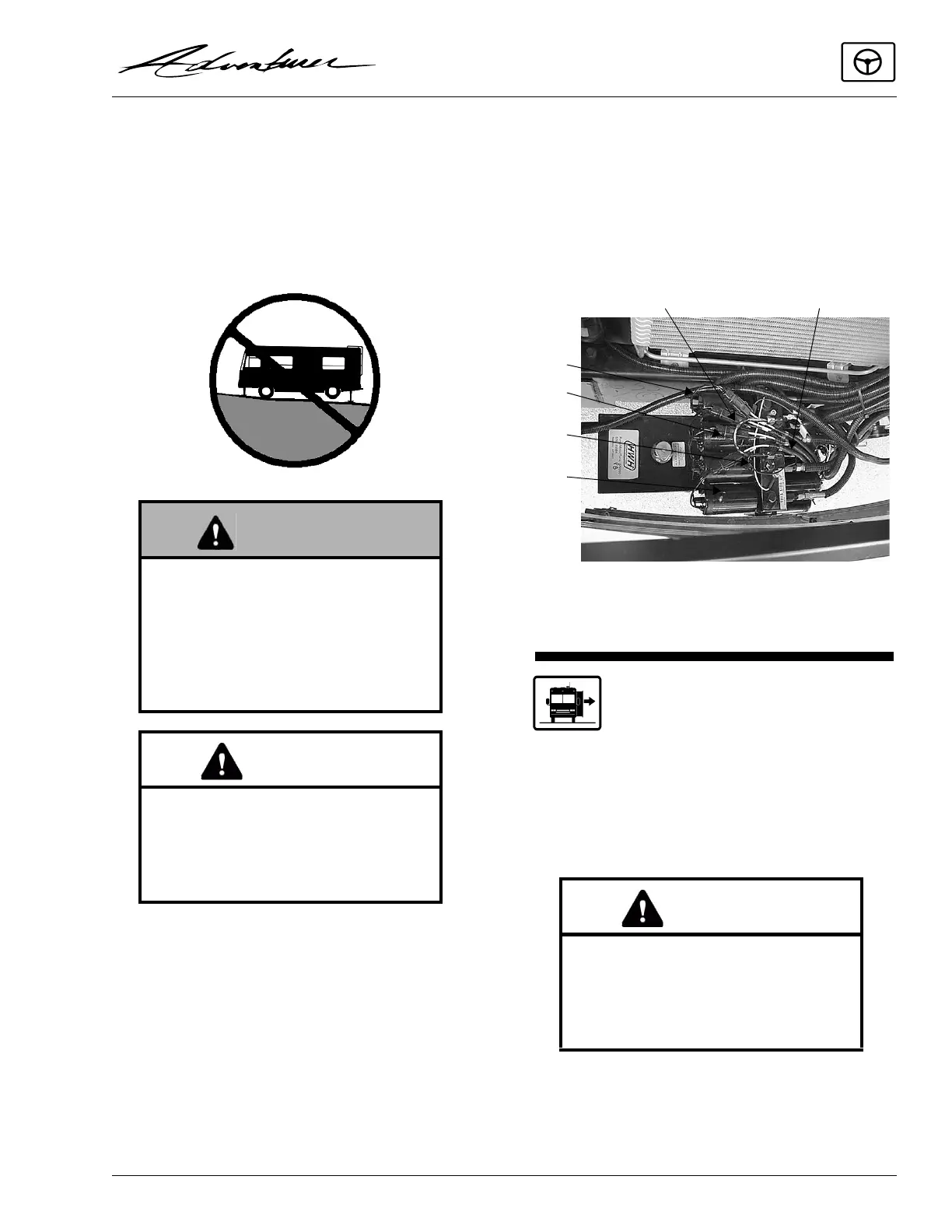

Leve
li
ng Jac
k
Val v es
Slid
eout Room
Val v e s
RH
RF
LF
LR
Leveling/Slideout System Hydraulic Pump
(top view from hood opening)
CAUTION
