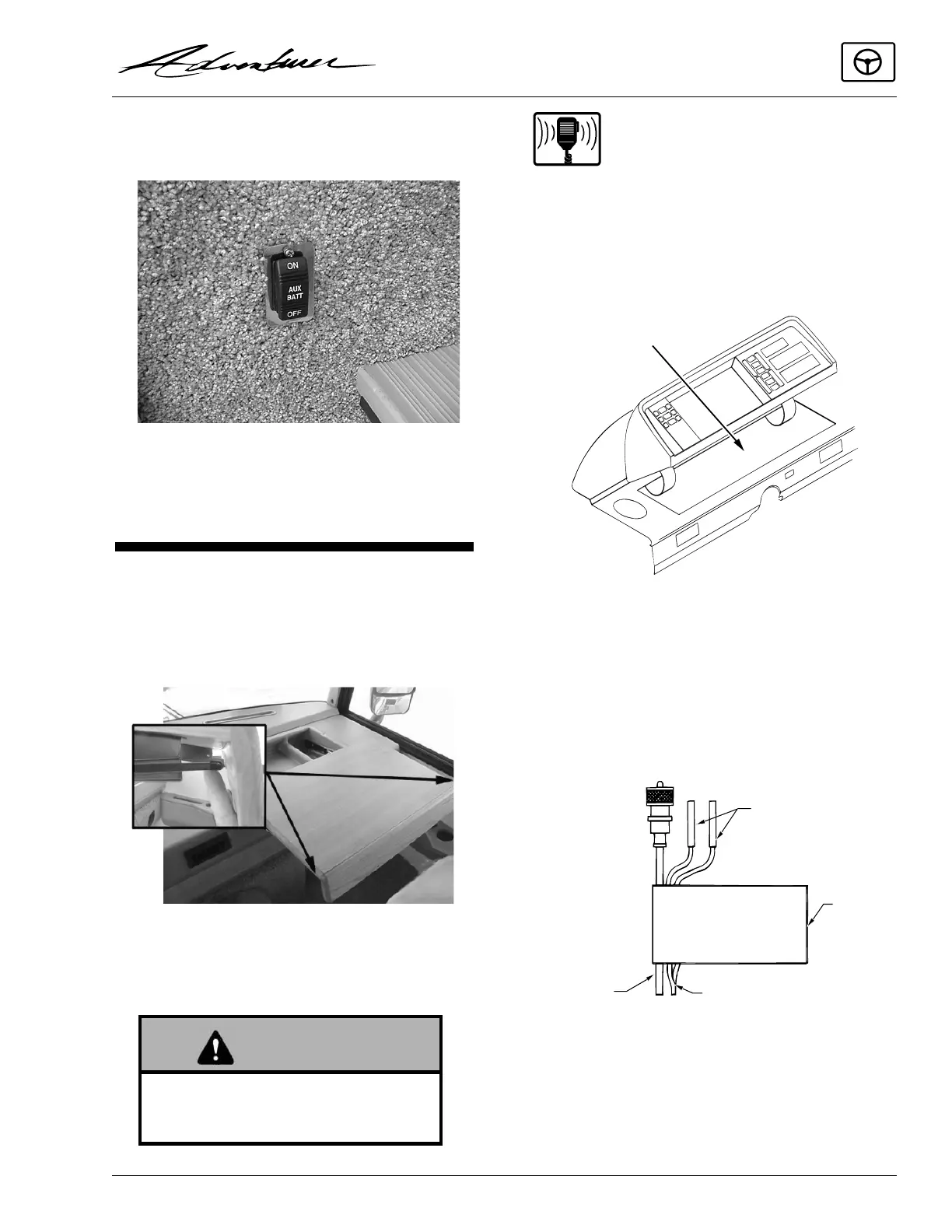

2-15
SECTION 2
DRIVING YOUR MOTOR HOME
Always leave this switch ON except during
storage periods (a month or more).
Pull-Out Passenger Work Station - Optional
Pull the worktop toward you until it clicks into
the fully extended position.
To Close: Lift the latch tabs and push the
worktop forward completely until it locks in
place on the dashtop.
CB RADIO WIRING
Your coach is pre-wired for CB radio installa-
tion, the wires are located in the main wiring har-
ness beneath the instrument pod. Lift the
instrument pod as shown to access the wiring har-
ness.
Look for a pair of wires, yellow (+) and white
(-), with connectors and flag labels, suspended
from the wiring harness.
Be sure to read the wire labels before install-
ing a CB radio. The labels contain important in-
formation and cautions.
SWR ADJUSTMENT
To adjust CB antenna SWR (standing wave
ratio), remove the cap on the end of the antenna.
Turn the tuning ring on the antenna to achieve
Do not use the passenger side front
workstation in the extended position
while the vehicle is in motion.
Aux. Batt. Disconnect Switch
in Entrance Stepwell
WARNING
CB Radio Wiring
TO
CB RADIO
TO
CB RADIO WIRING
LABEL
CB ANTENNA
CABLE
WIRE ASM-IP,MAIN
CB Radio Wiring
CB POWER PROVISION
RED + 12 V
BLACK GROUND
COAX ANTENNA
(SEE REVERSE ALSO)
CB POWER PROVISION
Yellow
White
Coax
+12 V
Ground
Antenna
(See Reverse Also)
