7

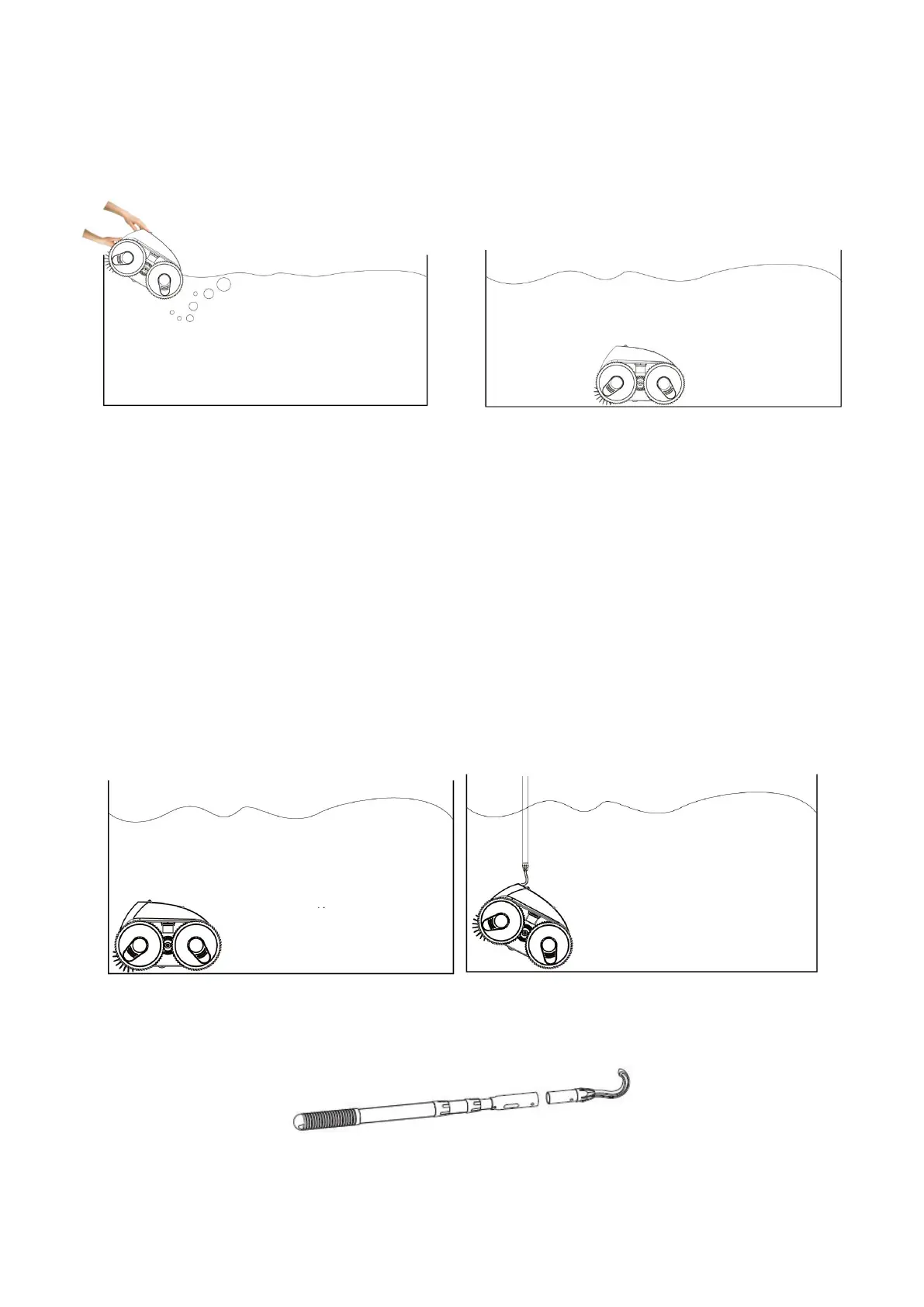

sure to empty the inside air in order to make the robot work well), then the cleaner can immerse
into the pool floor.
5.3 Let it clean
The robotic cleaner shall run around the pool floor and wall and vacuum the debris automatically
for about 90 minutes until it runs out of battery and stops.
5.4 Retrieve the cleaner
The cleaner will move to pool edge when finish working, then use the hook to lift it out of the
pool.
Note: Attach the retrieving hook to a standard inch diameter pool pole (not included).

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Winny RoadRunner Plus and is the answer not in the manual?

Winny RoadRunner Plus Specifications

General IconGeneral
Rated input voltage of charger100VAC-240VAC
Rated input frequency of charger50Hz/60Hz
Maximum charging voltage12.6VAC
Charging current1.8A
Battery runtimemax. 90min
Battery capacity8800mAh
Maximum cleaning surface150m²
Filter density180μm
Running speedmax. 11m/min (appr. 36ft/min), max. 11m/min (appr. 36ft/min)
Maximum pool depth180μm
Optimal pool water temperature10℃(50℉) - 35℃(95℉)
Charging environment temperature5℃(50℉) -35℃(95℉)
Storage condition5℃(50℉) -35℃(95℉), RH <75%
Weight and Dimensions IconWeight and Dimensions
Robot size360mm (L)408mm (W)240mm (H)
