Winny RoadRunner Plus User Manual

8

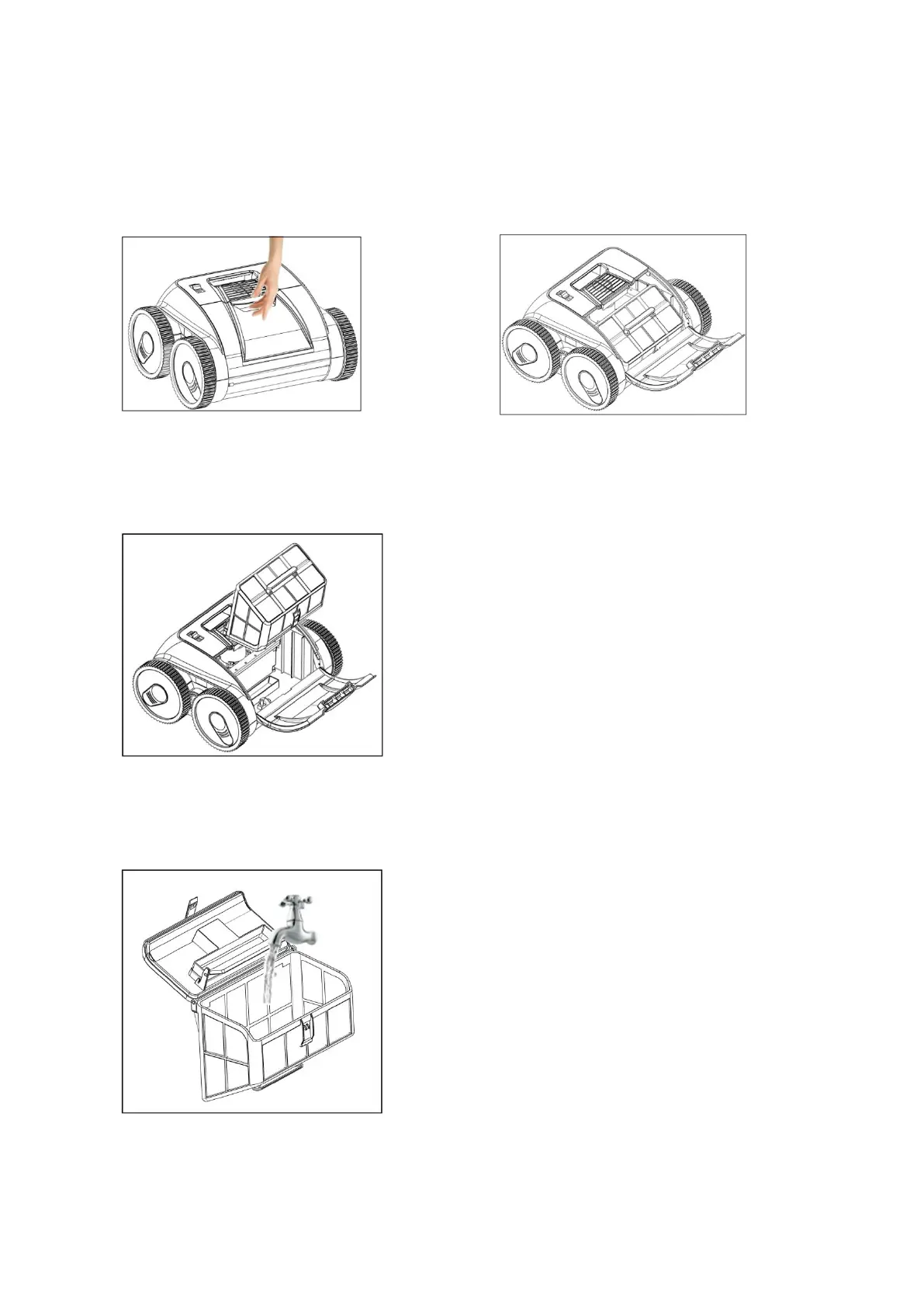

5.5 Filter cleaning
5.5.1 Open the top cover: Put the robot aside the pool and open the top cover (Figure 4-1), the
filter basket is located as show in Figure 4-2.
5.5.2 Take out the filter basket (Figure 4-3)
5.5.3 Wash filter basket (Figure 4-4) 5.5.4 Re-install the filter basket in reverse steps
图 4-8
Figure 4-1
Figure 4-2
Figure 4-3
Figure 4-4

Winny RoadRunner Plus Specifications

General

Rated input voltage of charger	100VAC-240VAC
Rated input frequency of charger	50Hz/60Hz
Maximum charging voltage	12.6VAC
Charging current	1.8A
Battery runtime	max. 90min
Battery capacity	8800mAh
Maximum cleaning surface	150m²
Filter density	180μm
Running speed	max. 11m/min (appr. 36ft/min), max. 11m/min (appr. 36ft/min)
Maximum pool depth	180μm
Optimal pool water temperature	10℃(50℉) - 35℃(95℉)
Charging environment temperature	5℃(50℉) -35℃(95℉)
Storage condition	5℃(50℉) -35℃(95℉), RH <75%

Weight and Dimensions

Robot size	360mm (L)408mm (W)240mm (H)
