Winterhalter UC-L Repair Manual

39

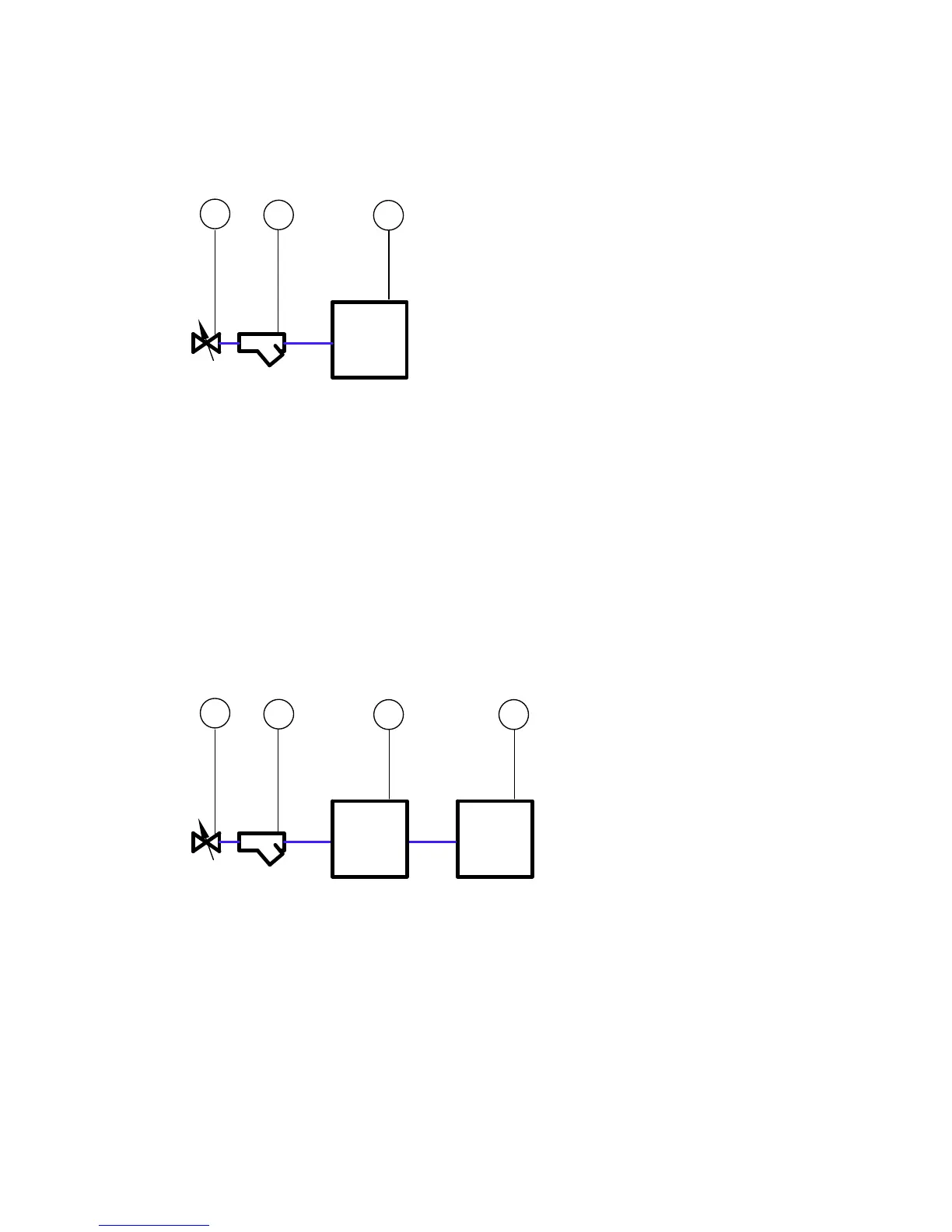

Options of the water treatment
UC with integrated water softener
1
2
3
UC
Water supply max. 60°C
Total hardness: max. 30 °dH
Copper concentr.: max. 2 mg/l
Set parameter:
P503 = 2
P505: max. 30
1: Water shut-off valve
2: Dirt trap (included in delivery of the UC)
3: Dishwashing machine UC Series
UC with upstream water softener
(MonoMatik / DuoMatik)
1
2
3
M / D UC
4
with MonoMatik:
Water supply: max. 50 °C
Total hardness: max. 40 °dH
Copper concentr.: max. 2 mg/l
with DuoMatik
Water supply: max. 60°C
Total hardness: max. 40 °dH
Copper concentr.: max. 2 mg/l
Set parameter:
P503 = 0
1: Water shut-off valve
2: Dirt trap (included in delivery of the UC)
3: MonoMatik or DuoMatik
4: Dishwashing machine UC Series

Winterhalter UC-L Specifications

General

Machine Type	Undercounter Dishwasher
Rack Size	500 x 500 mm
Wash Temperature	60°C
Wash Tank Capacity	11 l
Boiler Capacity	6 liters
Power Supply	400V 3N~ 50Hz
Theoretical Capacity	40 racks/h
