Instructions condensing Air heaters type XR version XR-GB-4001-a Page 6/27

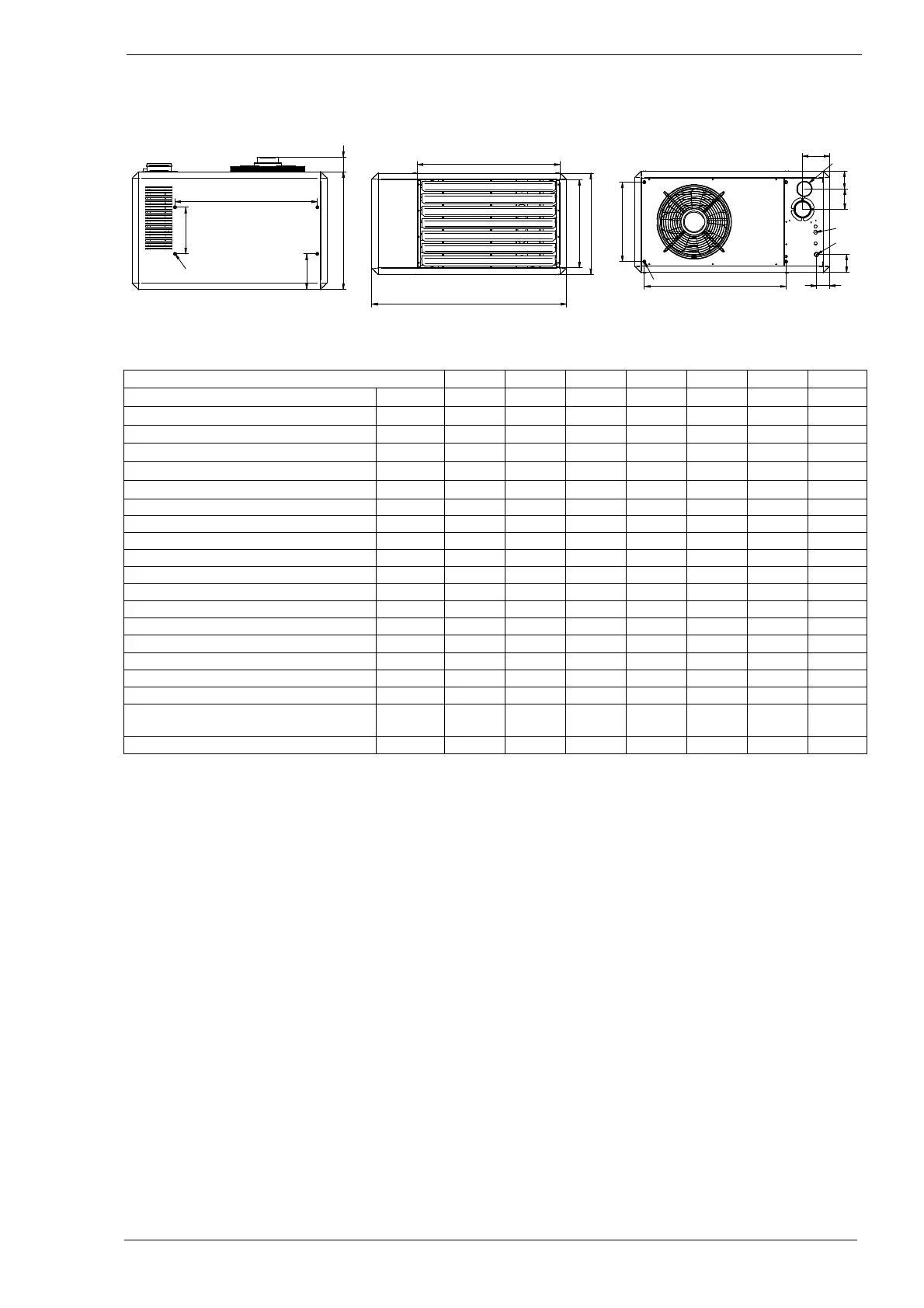

Dimensions axial version TR10 TR15 TR20 TR24 TR28 TR40 TR50
A mm 1110 1110 1110 1040 1040 1130 1130
B mm 290 290 290 540 540 540 670
C mm 630 630 630 630 630 700 700
D mm - - - 80 80 120 120
E mm 760 760 760 760 760 760 760
F mm - - - 763 763 763 763
G mm - - - 426 426 426 550
H mm 250 250 250 250 250 250 250
I mm 190 190 190 190 190 225 225
K mm 110 110 110 110 110 140 140
M mm Ø80 Ø80 Ø80 Ø80 Ø80 Ø100 Ø100
N mm Ø80 Ø80 Ø80 Ø80 Ø80 Ø100 Ø100
O mm 1/2“ 1/2“ 1/2“ 1/2“ 1/2“ 3/4“ 3/4“
P mm 250 250 250 470 470 470 600
R mm 235 235 235 145 145 195 195
S mm 80 80 80 95 95 95 95
T mm 175 175 175 75 75 165 165
U mm 50 50 50 80 80 70 80
For the purpose of suspension
above / below & backside
4x
M10
4x
M10
4x
M10
4x
M10
4x
M10
4x
M10
4x
M10
Weight kg 50 50 55 67 70 85 100
A
B
H
F
4X M10
i
G
Gas O"
Electra
F
4X M10
K
Diam M
C D
E
P
R
S
T
U
