WisyCom MPR52-ENG - Top Panel Connections; Antenna Connectors; Line Output Connectors; Headphones Output Socket

MPR52-ENG User Manual
7
Pin 1:ground
Pin 2:output AF+ (hot)
Pin 3:output AF- (cold)
1
2
4
5
3
FRONTVIEW
mini xlr 5pin
Pin 1:ground
Pin 2:output AF+ (hot)
Pin 3:output AF- (cold)
Pin 4:Power supplyV+
Pin 5:Power supply ground
1
2
3
FRONTVIEW
mini xlr 3pin

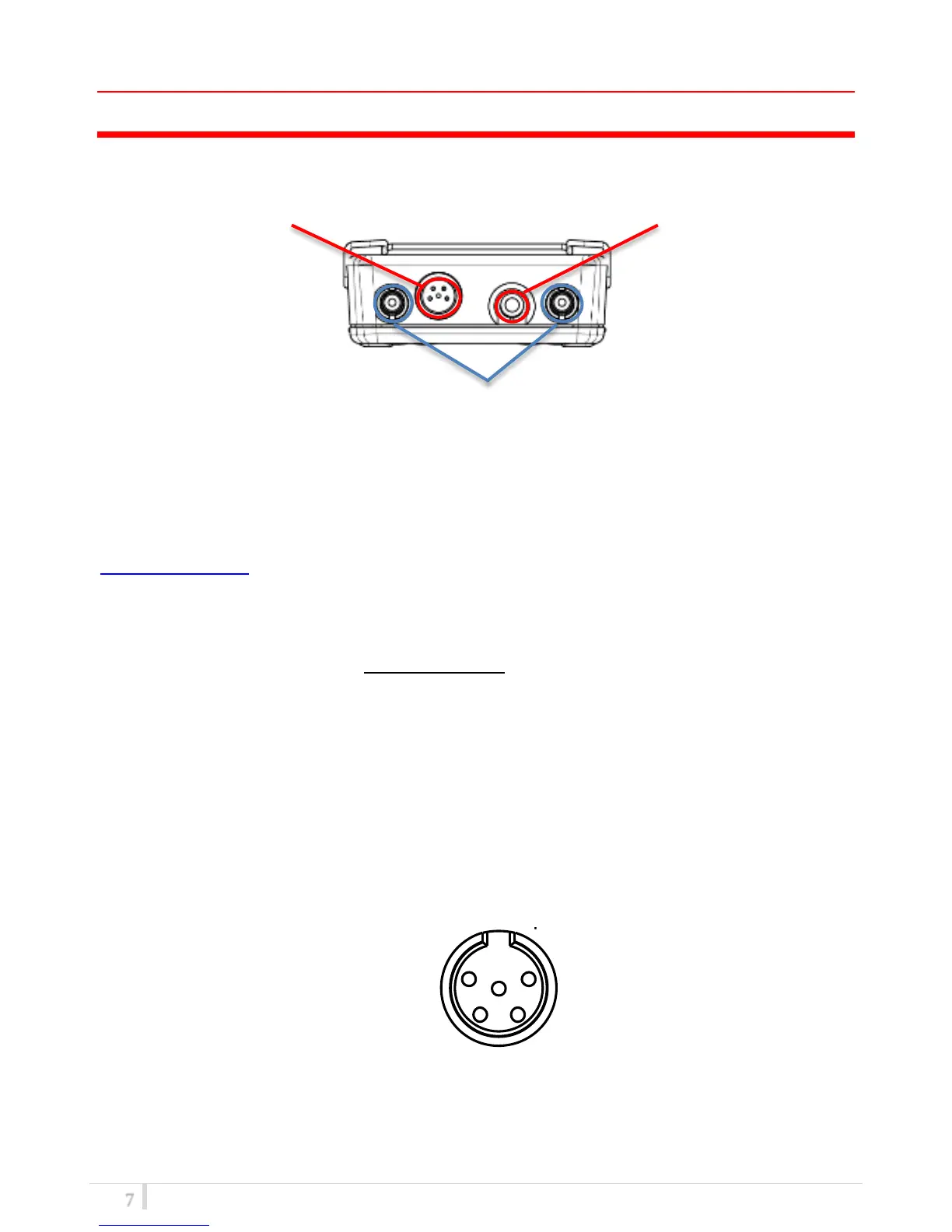

TOP PANEL
SMA antenna Connector A and B
MPR52-ENG is supplied with a pair of antennas tuned on 232 MHz bandwidth. Depending on the
working bandwidth, it can be provided with different antenna ranges.
For more details see the “Products”  “MPR52-ENG”  “Accessories” section on our website
www.wisycom.com.
Headphone Output
The audio headphone output with 3.5 mm stereo jack socket lockable (TRS).
Audio level can be adjusted with a headphones menu.
Configuration: Unbalanced mono (L=R), 1/8th inch
Maximum output power: 50mW @ 32Ω, 50mW @ 16Ω
Pin Assignment: Tip = AF+ (hot), Ring = AF+ (hot), Sleeve- Gnd
Line Output
The audio LINE output balanced on:
Pin 1: ground
Pin 2: output channel 1 AF+ (hot)
Pin 3: output channel 1 AF- (cold)
Pin 4: output channel 2 AF+ (hot)
Pin 5: output channel 2 AF- (cold)
SMA connectors Antenna A & B
5 Pin Line Output
Headphones Output
