2 Use Instructions with PC
2.1 Connection Method
PC software is only compatible with Windows system.
BWT901CL Playlist
2.1.1 Serial Connection

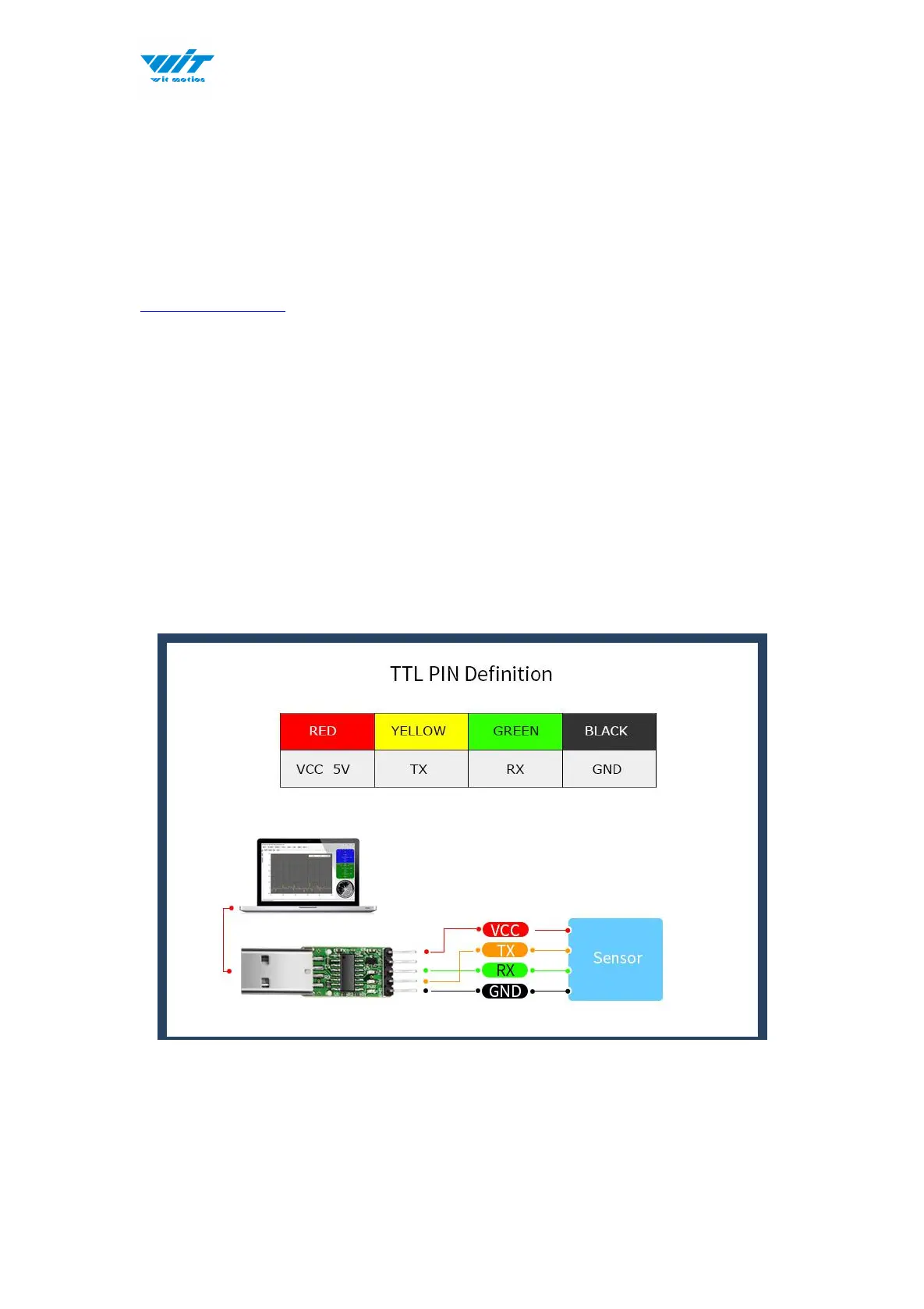

Step 1. Connect the sensor with a serial converter
PIN Connection:
VCC - 5V
TX - RX
RX - TX
GND - GND
(When connecting with computer, VCC-5V is recommended.)
