DC 24V-INPUT
DC 0V_GND
MKX Wiring
DC24V,0.5A
Drive connection.
2.
1.
- 8 -

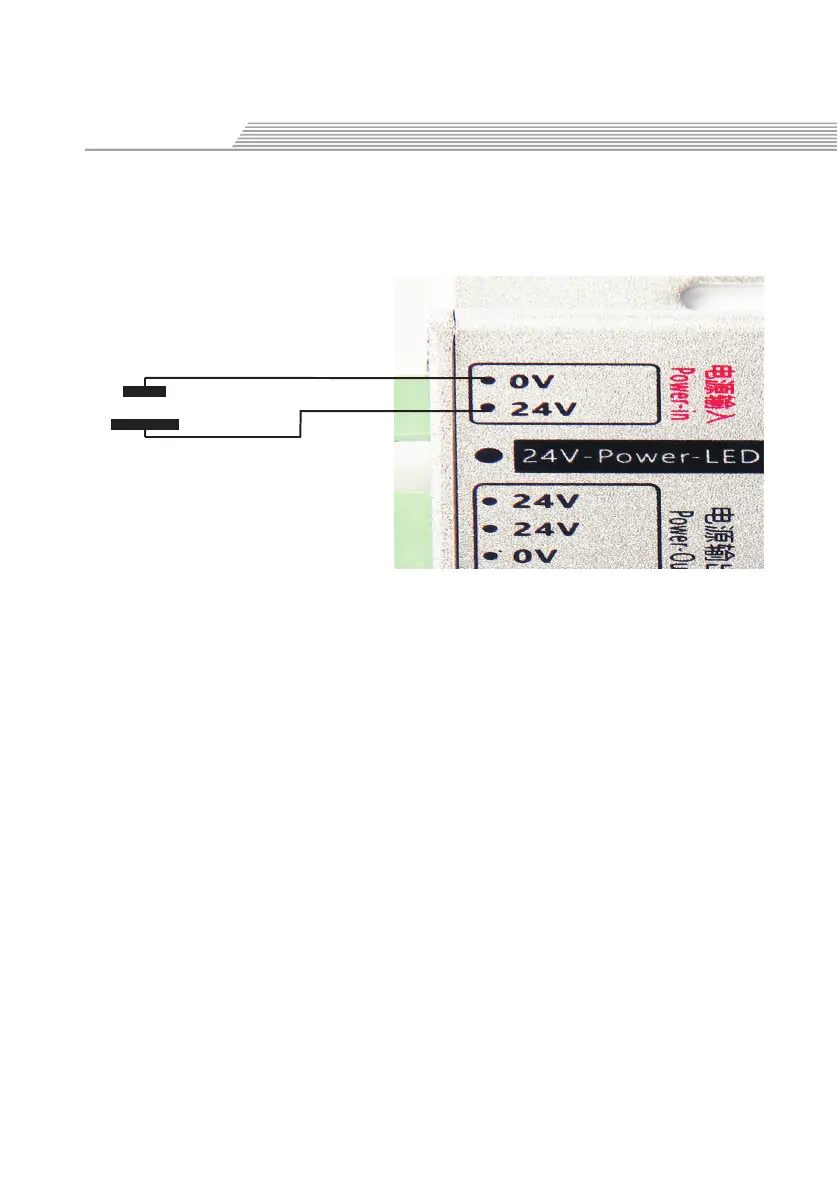

Offer power supply to our card
Our card support Servo or stepper drive, Differential output signal
ChengDu XinHeCheng Technology Co.,Ltd
