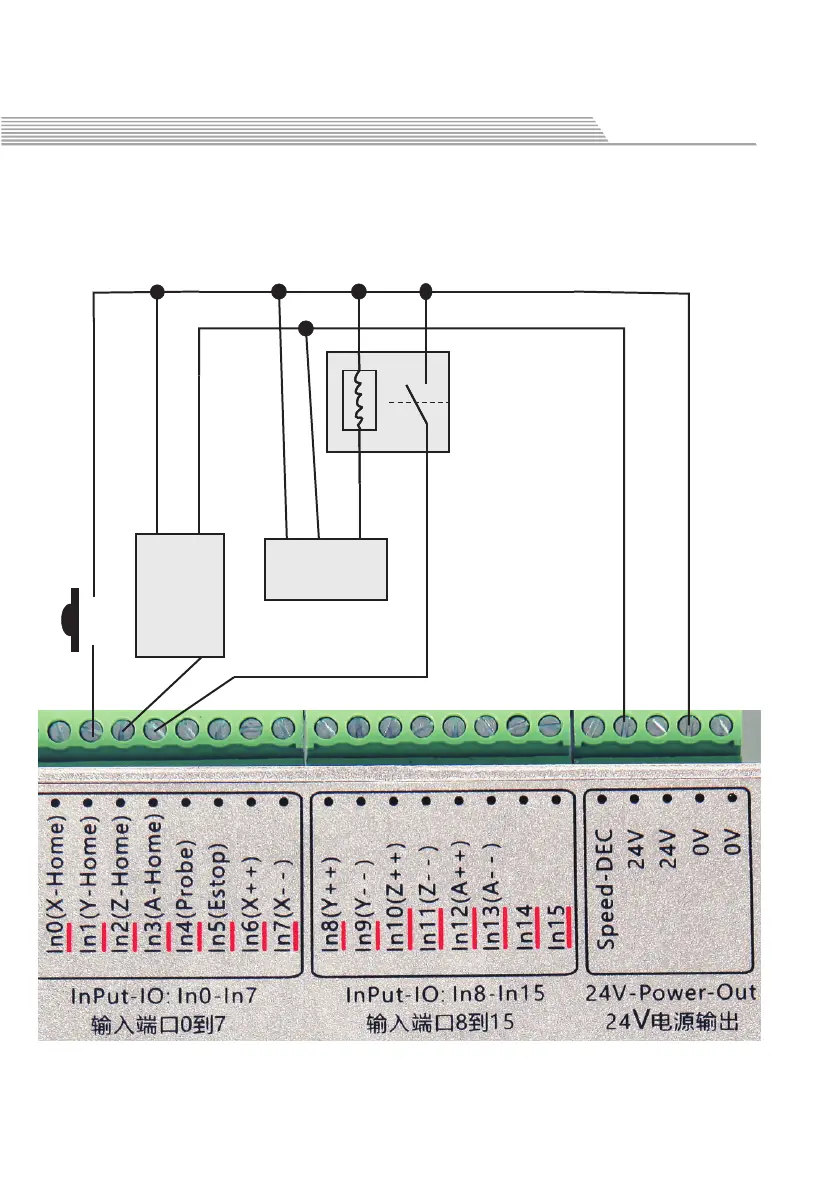

MKX Wiring
Input Io：16 Input port;In0 to In15.Active Low
NO.5：
NPN photoelectric switch
OUT
GND
VCC
Mechanical Switch
OUT
GND
VCC
PNP photoelectric switch
Relay
- 1 1 -
ChengDu XinHeCheng Technology Co.,Ltd
