CNC210 Operating Manual
12
CNC210-04A-008
spacer
1
13
CNC210-04-004
Bearing gland
1
14
GB70-85
Screw M4╳14
3
15
GB1387-92
Skeleton oil seal 16╳28╳7
1
16
CNC219094A-002
Z axis ball screw
1set
17
GB70-85
Screw M4╳14
4
18
CNC210-05A-001
Connection seat
1
19
GB118-2000
Taper pin 6╳20
2
20
GB70-85
Screw M6╳18
2
21
CNC210-05-002
Nut seat
1
22
GB/T276-94
Bearing 6200-2Z P5
1
23
GB70-85
Screw M6╳30
2
24
CNC210-04A-005
Screw seat
1
25
GB118-2000
Taper pin 6╳40
2
26
CNC210-04-006
Cover
1
27
GB/T818-2000
Screw M4╳8
3
28
CNC210-04A-006
Adjust pat
1
29
CNC210-00A-001
Lead screw cover
1
30
GB70-85
Screw M4╳8
5

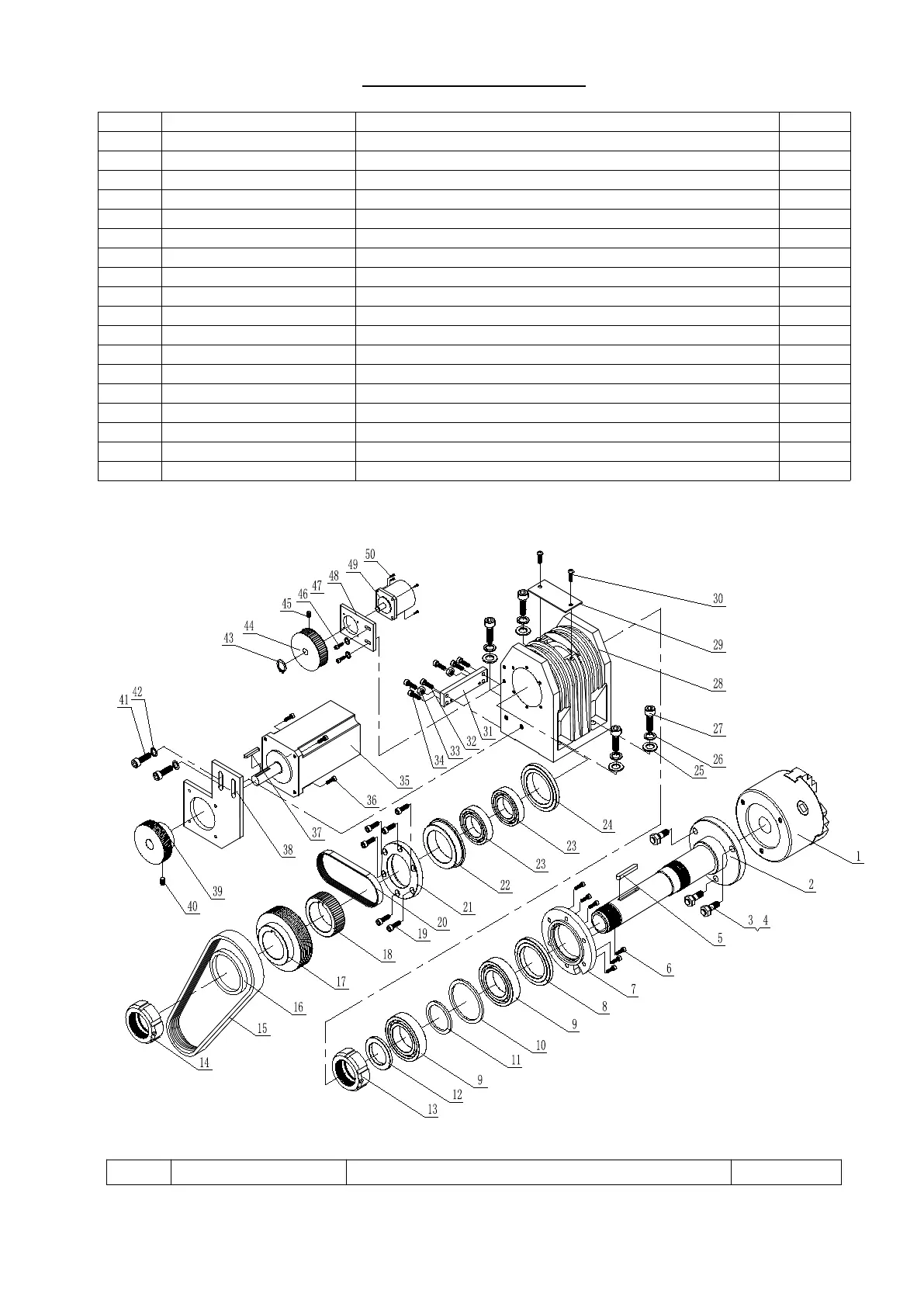

Drawing spindle box assembly
Parts list
No.
Parts No.
Description
Q’ty
